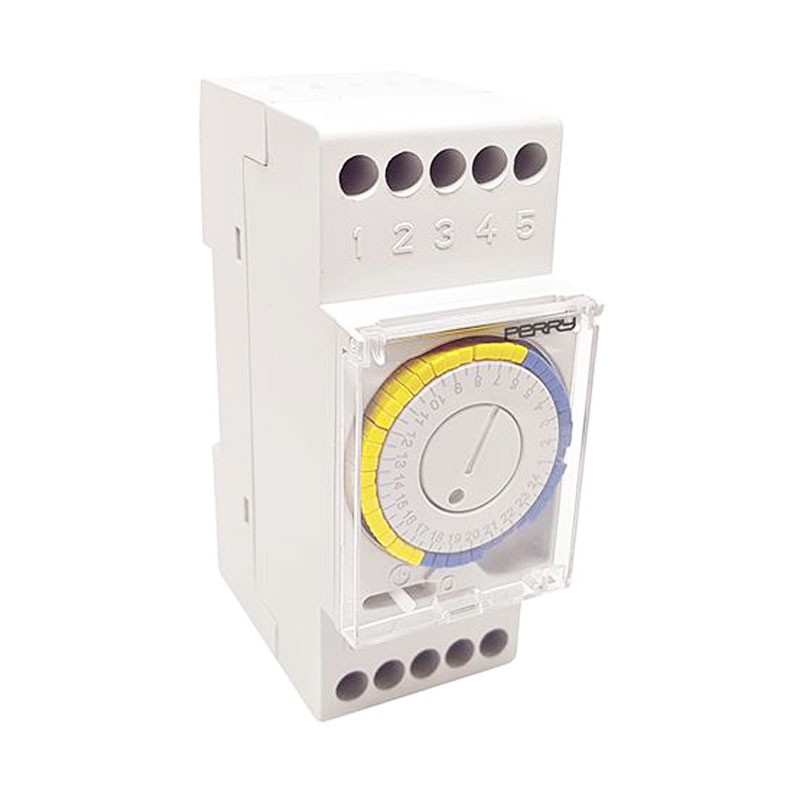

Perry time switch 2 modules with cable gears 1IO0022
PER 1IO0022
8019108030101
Daily time switch with Perry power reserve, with the following characteristics
- Supply voltage 230V AC 50 - 60Hz
- Contacts rated data 16(2) A / 250V AC
- Switching capacity max 3500 VA (per single contact)
- 2 DIN modules
- Displays mechanical crown
€33.01
Items Available: 125
: 38
Features:
- Perry Series
- Max. number of programs (ON-OFF) 48
- Minimum ON - OFF time 30'
- Mechanical jumper crown visualizations
- Max section of cables at terminals 2.5 mmq
- Degree of protection (IP) IP20 - IP30 (with cover) - IP40 (with back panel)
- Output type captive screw terminals
- Insulation class II
- Power reserve max 150 hours
- Type of rechargeable battery reserve NiCd
- Time tolerance + - 1 sec/day
- Operating temperature limits -10°C +50°C
- Storage temperature -10°C +50°C
- DIN rail / wall mounting / back panel installation type
- Thermoplastic casing - grey RAL 7035
- Type civil / tertiary / industrial use
- Controls on board mechanical crown wheel - Selector: timer position / fixed ON
- Clock setting precision mechanical with reference index
- Mechanical key crown programming (30' blocks)
- Dimensions (WxDxH) 17.5 x 60 x 128 mm
Spddisfatto nelle aspettative della qualità
installé depuis un mois, tout à l'air OK
Esta foto no se corresponde con el producto esta foto de una versión anterior
Do you need to make further currency transfers this year?
When do you think you’ll be making your transfers?
What currency will you require?
Would you like to keep receiving our market updates?
Tutto bene, arrivato in tempi brevi. Ok
Data sheet
- Type: Time Switches
- Model: Daily
- Installation: Din
