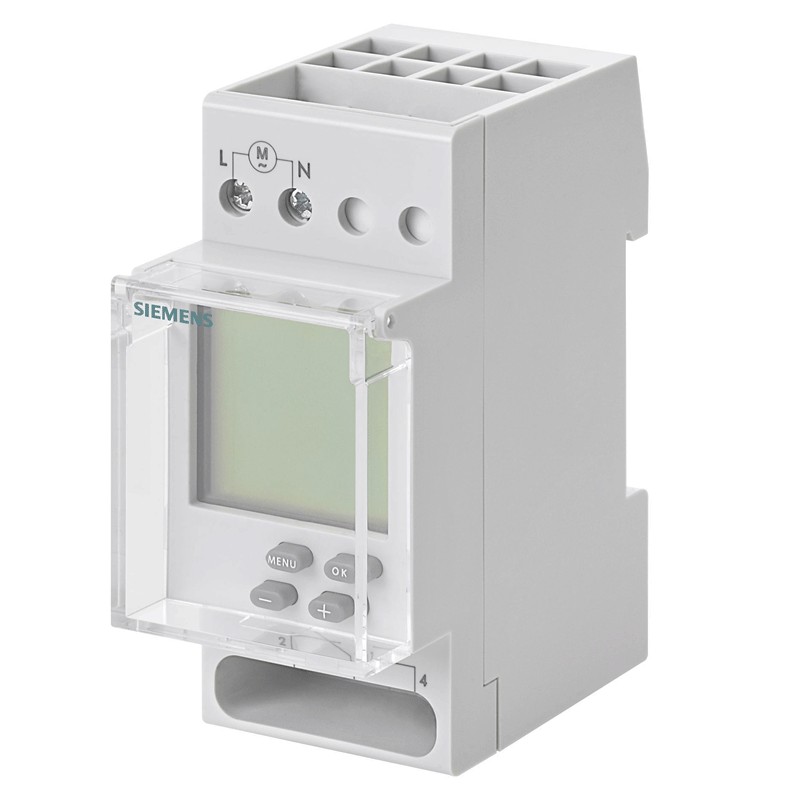

Siemens digital weekly time switch 1NO/NC 230V 2M 7LF45110
SIE 7LF45110
4001869473512
Digital weekly time switch TOP Siemens, with the following features:
- Control voltage with AC nominal value min 250 V max 253 V
- Current breaking capacity at AC with 250 V nominal value 16A
- Power dissipation at nominal current value with AC in warm operating state for each pole 1W
- Type of AC supply voltage
- 1NO/NC contacts
- Frequency of the supply voltage max 60 Hz - min 50 Hz
Siemens digital weekly time switch 1NO/NC 230V 2M 7LF45110
€89.09
€89.09
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Features:
- Siemens series
- Control voltage with AC nominal value min 250 V max 253 V
- Current breaking capacity at AC with 250 V nominal value 16A
- Power dissipation at nominal current value with AC in warm operating state per pole 1 W
- Type of AC supply voltage
- 1NO/NC contacts
- 2 modules
- Frequency of the supply voltage max 60 Hz - min 50 Hz
- Overvoltage category III
- Daily running accuracy 1.5 s
- Minimum switching time interval of channel 1 60 s
- Degree of protection IP20
- Height 83 mm
- Width 36 mm
- Depth 70 mm
- Net weight 157 gr
- Type of mounting DIN rail
- Permissible ambient temperature min - 20 °C - max 55 °C
- Ambient temperature during storage min -20 °C - max 60 °C
There are no reviews
Data sheet
- Type:
- Time Switches
- Poles:
- 2P
- Breaking capacity:
- 16KA
- Amps:
- 16A
