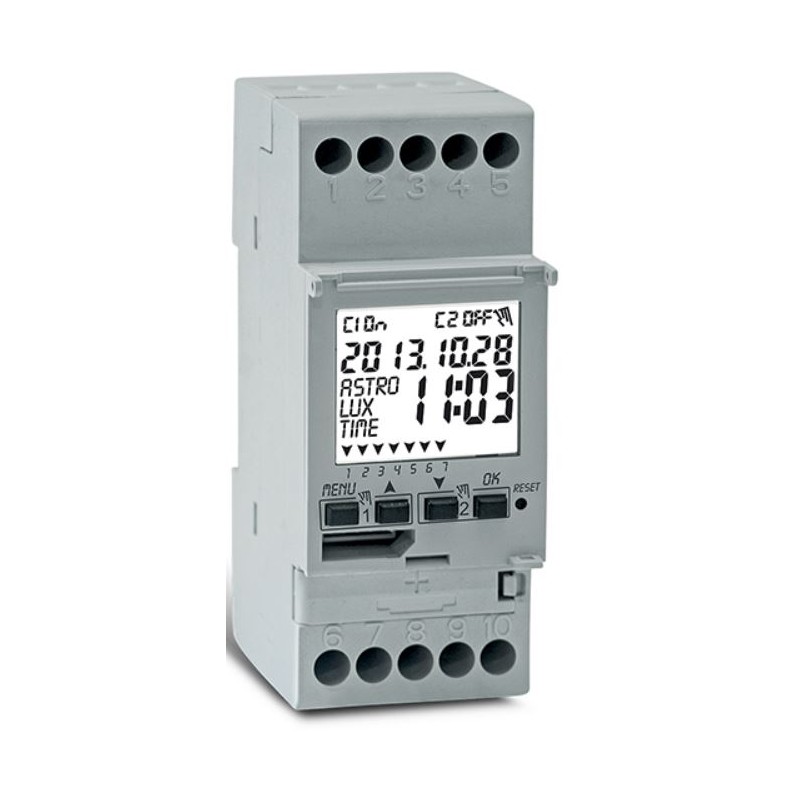

Perry ASTRO-LUX-TIME astronomical twilight time switch 1IO4091
PER 1IO4091
9000005125174
ASTRO-LUX-TIME astronomical time switch with the following characteristics:
- Supply voltage 230Vac.a.+/-10%, 50Hz
- Contacts: Contacts nominal data 16(2) A / 250V AC
- Switching power max 3500 VA (for single contact)
- LCD display 1" 1/3 backlit

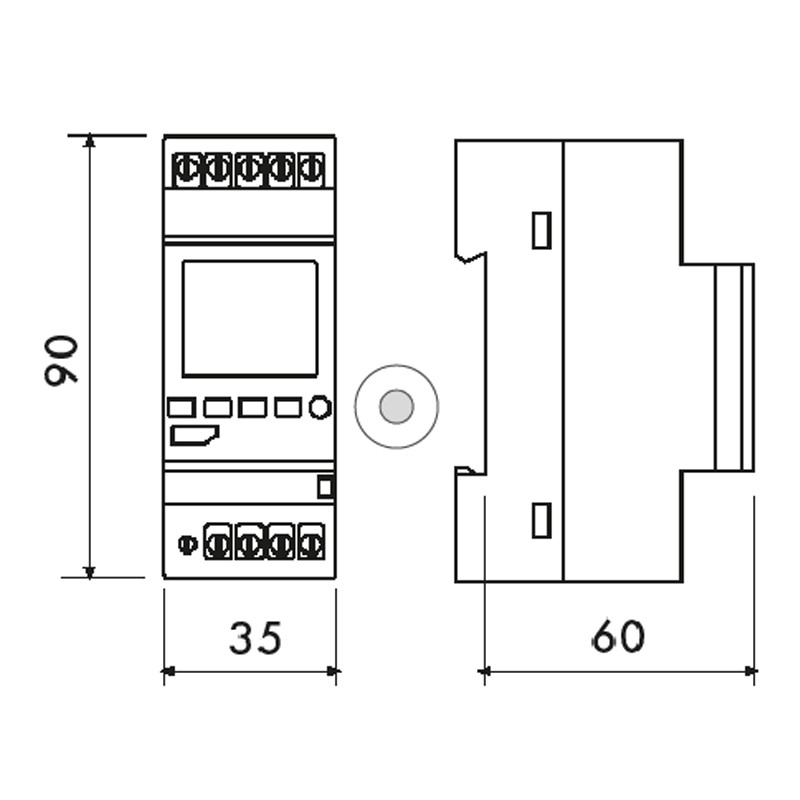

- Dimensions (WxDxH) 35 x 60 x 90 mm
€56.06
Items Available: 69
: 17
Features:
- Perry Series
- Max. number of programs (ON+OFF) 45
- Minimum ON - OFF time 1 minute
- Max wire section at terminals 6 mmq
- Protection degree IP20 - IP 40 (rear panel)
- Output type captive screw terminals
- Insulation class II
- ON / OFF relay signalling on LCD display
- Power reserve 6 years
- Type of battery reserve replaceable CR2032
- Time tolerance + - 1 sec/day
- Operating temperature limits -20°C/+60°C
- Storage temperature -30°C/+80°C
- DIN rail / back panel installation type
- Thermoplastic casing - grey RAL 7035
- Type of use civil / tertiary / industrial
- Controls on board programming keys manual function key ON / OFF
- Digital clock setting precision for hours / minutes
- Automatic daylight saving time change for 4 areas
- Digital programming for hours / minutes / seconds
LP powers
- Power: LP incandescent 2300 W
- Power: LP uncompensated fluorescent tubes 1000 W
- Power: LP fluorescent tubes comp. in parallel 500W (total capacity 70 microF)
- Power: LP compact fluorescent tubes 600W
Montato da 2 settimane funziona alla grande.
L'elettricista non ha avuto particolari problemi ad installarlo e a programmarlo
Data sheet
- Type: Time Switches
- Version: Digital
- Model: Astronomical
- Installation: Din
