Orbis ASTRO NOVA Switch 2 DIN Modules OB178012
ORB OB178012
8426709104849

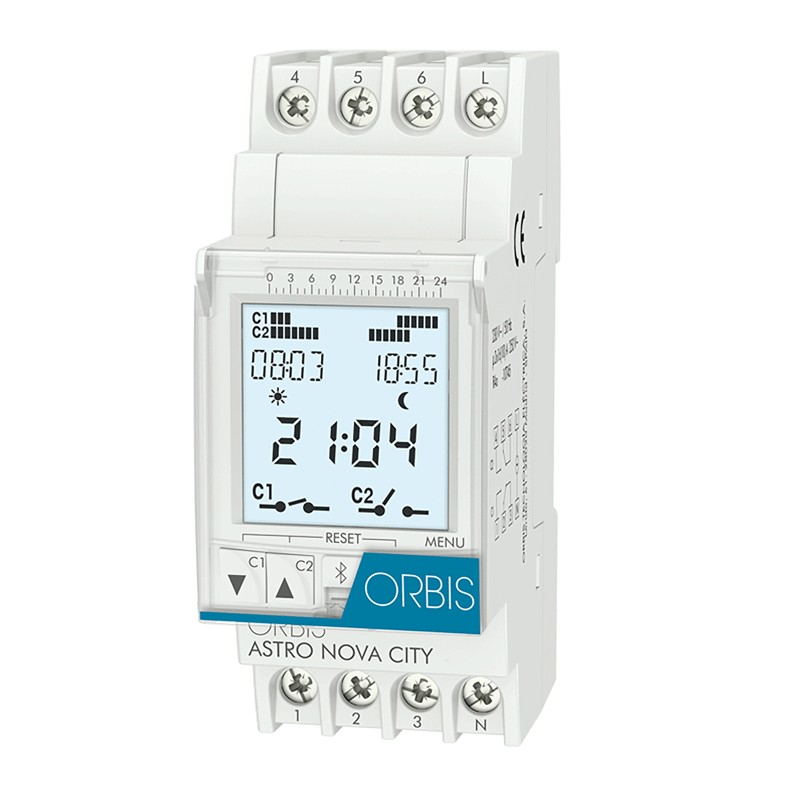

The Orbis ASTRO NOVA CITY digital astronomical time switch is an advanced solution for automatic control of electrical loads based on time or sunrise and sunset events. With its modular DIN design and innovative user interface, it is ideal for residential, commercial and industrial applications:
-
Intuitive programming: Easy-to-configure and use text menu
-
Automatic sunrise/sunset management: Adjusts on/off based on location and date of year
-
Backlit graphic LCD display: Shows time, date, relay status and daily chronogram
-
Advanced features: Scheduling of up to 40 ON/OFF events with options for fixed or astronomical times
-
Versatility of use: Alternative to twilight switches or digital timetables
-
Power reserve: Lithium battery with 10 years of battery life and super capacitor for 48 additional hours
-
Security and convenience: Sealable key cover and keypad lock by PIN code
€86.32
Items Available: 6
: 3
Orbis ASTRO NOVA switch 2 DIN modules OB178012
Additional features
- Automatic daylight saving time changeover: Programmable to accommodate different seasonal adjustments.
- Vacation scheduling: Up to 4 configurable periods.
- Manual switching: Option for immediate action.
- Hour meter: For monitoring and preventive maintenance.
- Bluetooth connector (optional): Programming via app on smartphone or tablet.
- Replaceable battery: Housed in an external compartment for easy maintenance
Benefits
- Advanced automation: Precise control of lights and other electrical devices based on schedules or astronomical events.
- Energy savings: Optimized switching on and off reduces energy consumption.
- User-friendly interface: Simple programming with a graphical display and intuitive menu.
- Versatility: Perfect for street lights, illuminated signs, indoor and outdoor lighting systems.
- Durability and reliability: Lithium battery and super capacitor ensure continuous operation
Applications
- Public or private lighting systems.
- Control of lights and electrical appliances in offices, stores, industries, and residences.
- Automation of on/off events based on schedules or sunrise and sunset
- Not applicable for the country Spain
Technical Characteristics
| Specifications | Details |
|---|---|
| Scheduling | Daily-weekly |
| Display | Large, backlit, graphical LCD displaying time, date, day and relay status |
| Daily Chronogram | Displays the set program |
| Daylight Saving Time | Automatic and programmable changeover |
| ON-OFF Programming | Up to 40 |
| Programmable Interventions | Fixed time ON/OFF, astronomical ON/OFF (sunset and sunrise), savings ON/OFF |
| Switching | Manual / permanent manual |
| Programming Holiday Periods | Up to 4 |
| Hour Counter | Integrated |
| Keypad lock | PIN code entry possible |
| Bluetooth connector | Allows programming via smartphone/tablet with dedicated APP (key not included) |
| Power Reserve | 10 years with lithium battery and additional 48 hours via super capacitor |
| Battery Power Reserve | Replaceable and housed in external compartment |
| Contacts | Potential-free |
| Front Cover | Sealable key cover |
| Power Supply Voltage | 230 V |
| Rated Frequency | 50-60 Hz |
| Contact rating at 250 VAC | 16 (10) A |
| Contact Type | 2 in exchange |
| Minimum tripping time | 1 min. |
| Power consumption | 1,3 W |
| Max Lamp Capacity Incandescent | 3000 W |
| Max Lamp Capacity Fluorescent | 1200 VA |
| Max Rated Capacity Halogen 12 V | 2000 VA |
| Max Rated Capacity Halogen 230 V | 3000 W |
| Max Rated Capacity Energy Saving Lamp | 600 VA |
| Max Lamp Capacity LED | 90 VA |
| Operating Temperature | -10/+45 degrees |
| Degree of Protection | IP20 |

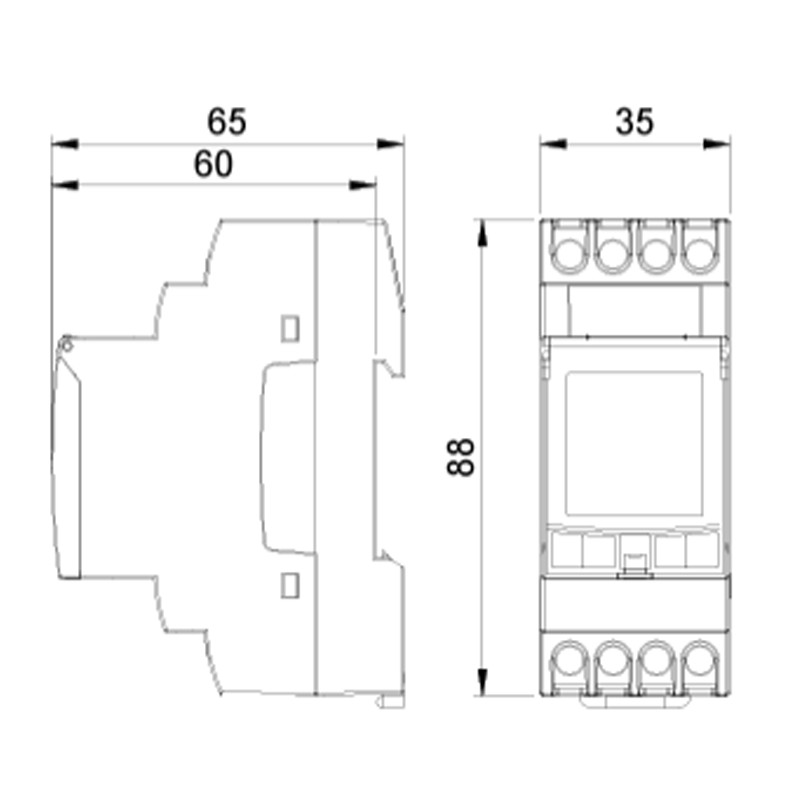

| External Dimensions | 35x88x65 mm |
Perfecto, es el que buscaba y muy barato.
Buon prodotto, inoltre la pila si puo sostituire, facendone un prodotto praticamente eterno. Uniche due note negative: se apri il circuito manualmente si richiude automaticamente al ciclo seguente (ossia la apertura e chiusura dei circuiti manuale è PROVVISORIA, come scritto nelle istruzioni). La chiave bluethoot la devi comprare a parte se vuoi usare la app.
il prodotto è top,proprio come lo cercavo,la consegna veloce ,si lo consiglio .
i was replacing an alder version of the product and i was happy with the earlier model so i hope this model will also make me a happy user / buyer
buon prodotto...a un prezzo onesto e competitivo
OTTIMO PRODOTTO.
PROGRAMMAZIONE FACILE.
DISPLAY CON TUTTE LE INFORMAZIONI SEMPRE VISUALIZZATE.
Data sheet
- Type: Time Switches
- Version: Digital
- Model: Astronomical
- Installation: Din
