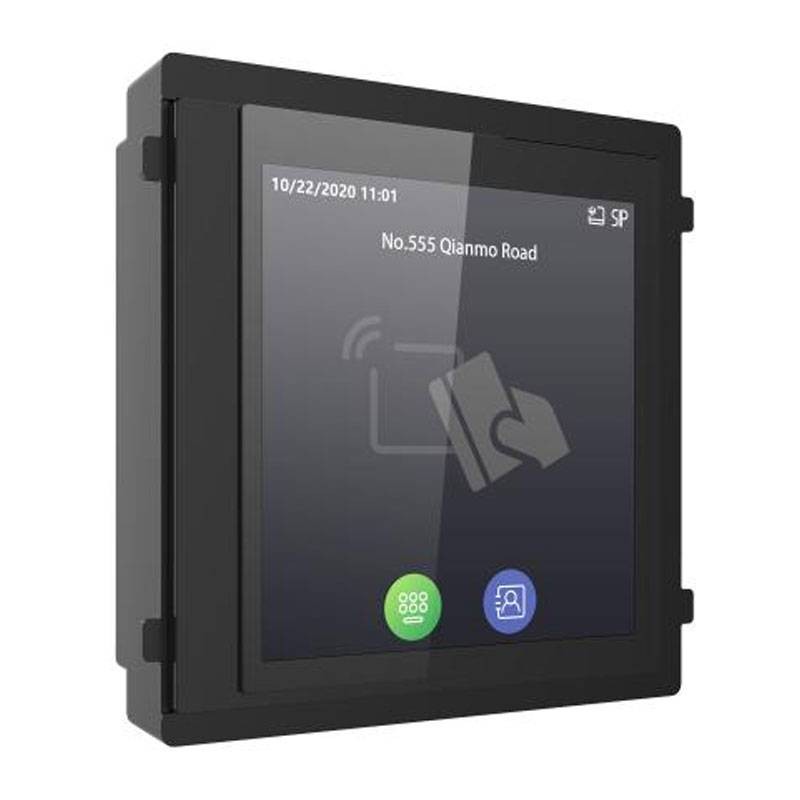

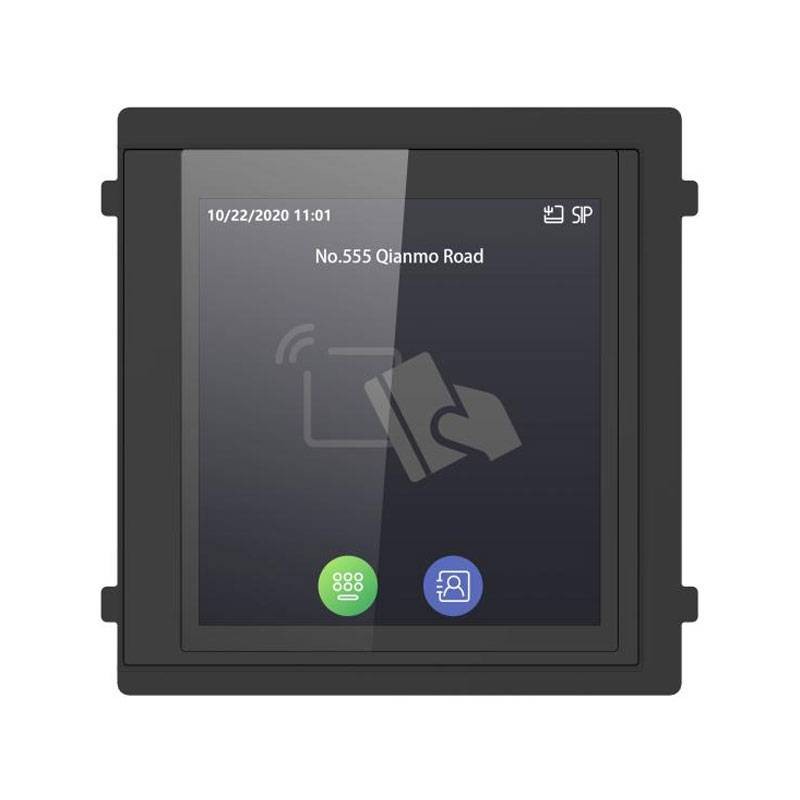

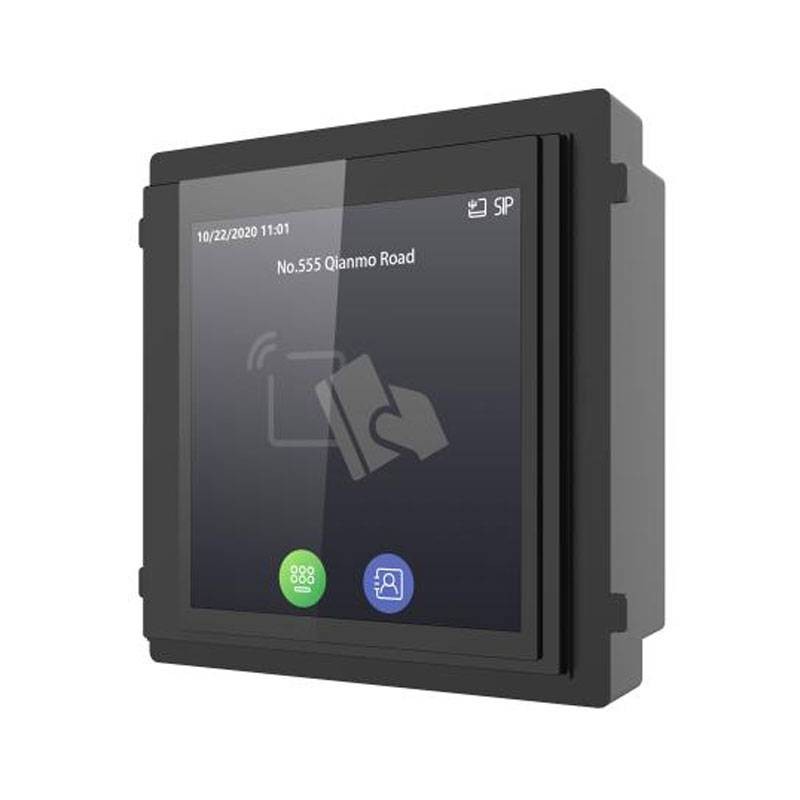

Touch Display Module for Hikvision DS-KD-TDM Outdoor intercoms 305302659
HIK 305302659
Touch display module for Hikvision DS-KD-TDM Outdoor intercoms:
- Modular door station M1 card reader touch display module
- 4-inch touchscreen with information-rich display: dial number, unlock by PIN code, contact list, advertising
- Stores up to 2000 contacts
- Superior degree of protection IP65 and IK08
- Supports multiple languages
Compatible frames, to be purchased separately codes: 305700451, 305700452.
€334.87
Items Available: 7
Frequently bought together
Features:
- Linux Operating System
- Rom 32MB
- RAM 128MB
- Screen Size 4 inches
- IPS Type
- Resolution 480×480
- Brightness Adjustable, Maximum 500 cd/m2
- Card Reading Frequency 13.56 MHz
- Card Reading Distance 2 cm
- Card Type M1 Card
- TF Card Reserved
- 8-bit DIP Switch
- Cascade Interface Two Items 2
- Installation Flush mounting, surface mounting
- Protective Level IP65, IK8
- Working Temperature From -20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity 10% to 95% (non-condensing)
- Dimensions (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power Supply 12 VDC, supplied by the main module
- Power Consumption ? 4 W
- Language English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek.
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
