Power supply Dahua PFM325D-1210EN 12V 1A M-0034287
DAH M-0034287
6923172559043
Dahua desktop power supply PFM325D-1210EN, with overvoltage, overcurrent, and short circuit protection. High efficiency, stable and CE certified:
-
Power 12 Watt, 1 ampere, output voltage 12VDC
-
Overvoltage, overcurrent, and short circuit protection
-
High energy efficiency (≥82.96%) – Level VI
-
CE certified, flame resistant (V-0)
-
Plug & Play – immediate installation
-
Compact design with status LED
€3.29
Items Available: 18
: 17
Frequently bought together
Power supply Dahua PFM325D-1210EN, compact, reliable and safe
The Dahua PFM325D-1210EN is a desktop power supply designed to provide stable 12V DC power, with a nominal current of 1A, perfect for security devices, video surveillance, and low-voltage electronic equipment.
Thanks to its nominal power of 12W, it represents a compact yet high-performance solution, ideal for both residential and professional environments.
Maximum protection and regulatory compliance
This power supply is equipped with triple integrated protection against: Overvoltage, Overcurrent, Short circuits.
Additionally, it meets ESD protection requirements with values up to ±8 kV in air discharge and ±6 kV in contact discharge, and ensures overvoltage protection up to ±2 kV in common mode. It complies with CE safety standards and is made with a V-0 level flame-retardant ABS shell, for maximum peace of mind in every installation.
Energy efficiency and easy installation
Rated with efficiency level VI, this power supply has a standby consumption of less than 0.1 W, making it perfect for low-consumption installations and in line with the latest environmental regulations.
Ideal for professional and domestic environments
The PFM325D-1210EN model is particularly suitable for:
-
Dahua or compatible video surveillance systems
-
Low-voltage security equipment
-
Domestic electronic devices
-
Desktop or technical box installations
Technical features Dahua Power Supply
| FUNCTIONS | |
|---|---|
| Input voltage | 100–240 V AC |
| Output voltage | 12 V ± 5% |
| Nominal output current | 1 A |
| Nominal power | 12 W |
| Power consumption in idle mode | ≤ 0.1 W |
| Efficiency | ≥ 82.96% |
| Indicator light | Green light × 1 |
| PORTS AND CONNECTIONS | |
| Input port | Standard European 2-pin plug |
| Output plug | Φ5.5 mm × Φ2.1 mm × 10.0 mm (OD × ID × L) |
| PROTECTION | |
| Types of protection | Protects against overcurrent, overvoltage, and short circuits |
| Overvoltage protection rating | Common mode: ±2 kV — Differential mode: ±1 kV |
| Electrostatic protection (ESD) | Air discharge: ±8 kV — Contact discharge: ±6 kV |
| STRUCTURE | |
| Installation | Desktop support |

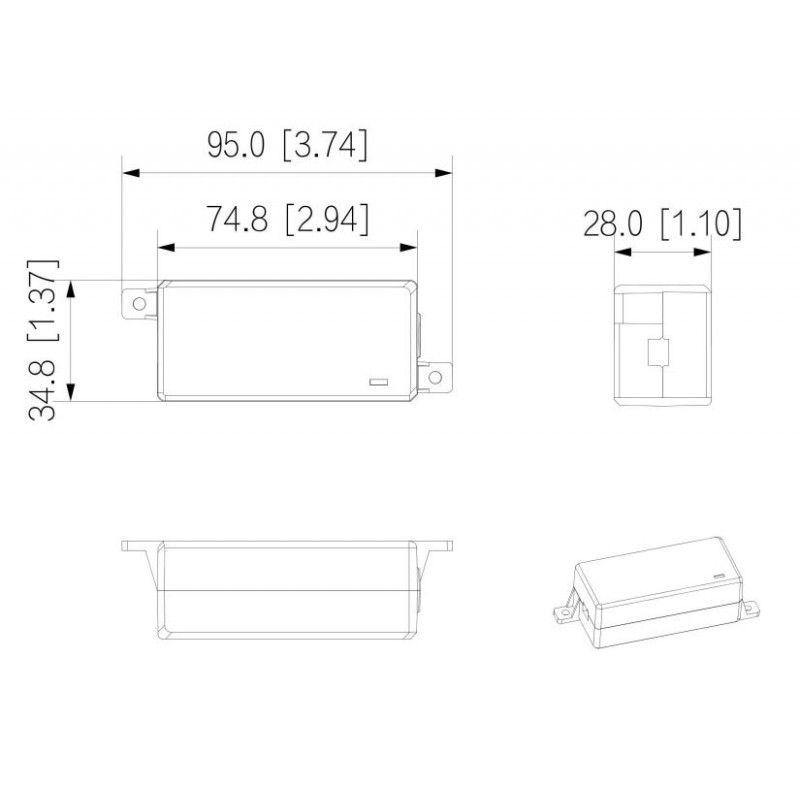

| Product dimensions | 95.0 × 34.8 × 28.0 mm |
| Colour | Black |
| Net weight | 0.1 kg |
| Input cable length | 350 mm |
| Output cable length | 800 mm |
| ENVIRONMENT | |
| Operating temperature | Full load: –20 °C / +40 °C — 80% load: +40 °C / +55 °C |
| Operating humidity | 10%–90% RH |
| Storage temperature | –10 °C / +70 °C |
| Storage humidity | 10%–90% RH |
| CERTIFICATIONS | |
| Certifications | CE |
