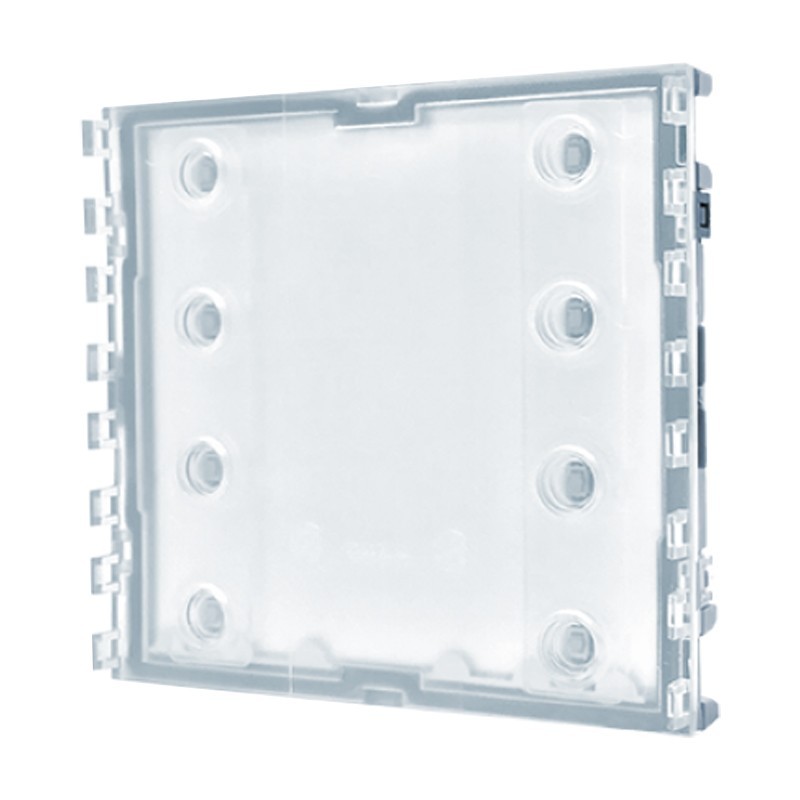

Comelit call button modules for Ultra UT9200 push button panel
COE UT9200
8023903400038
Modules Comelit call buttons for Ultra compatible with all systems. Prepared for 8 call buttons made of professional plastic with anti-yellowing and anti-opacification treatment or in aluminium.
€97.53
Items Available: 103
: 3
To be completed with 4 single buttons (4 calls), 4 double buttons (8 calls) or with caps. Automatic switching off of the backlighting of the name tags during daylight hours by means of the twilight sensor of the audio or audio/video module combined. Illumination of name tags in white.
Compatible systems:
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A
- Audio Simplebus 2 with power supply unit art. 1210/1210A
- Audio/video Simplebus 1
- Vip
- Audio Simplebus 1.
Characteristics:
- Stand-by absorption (mA) 0.4
- Power supply from video door phone bus
- Maximum absorption (W) 0.4
- Number of buttons (No.) 8
- Brightness of backlighting
- Operating humidity (RH max - %) 25 ÷ 95 %.
- Environmental class IV
- Color of backlighting White, Off
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Material Polycarbonate
- Dimensions: WxHxL 35x90x100mm
- Weight 275 gr
- Type of buttons mechanical
- Supply voltage 33VDC
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Buttons
