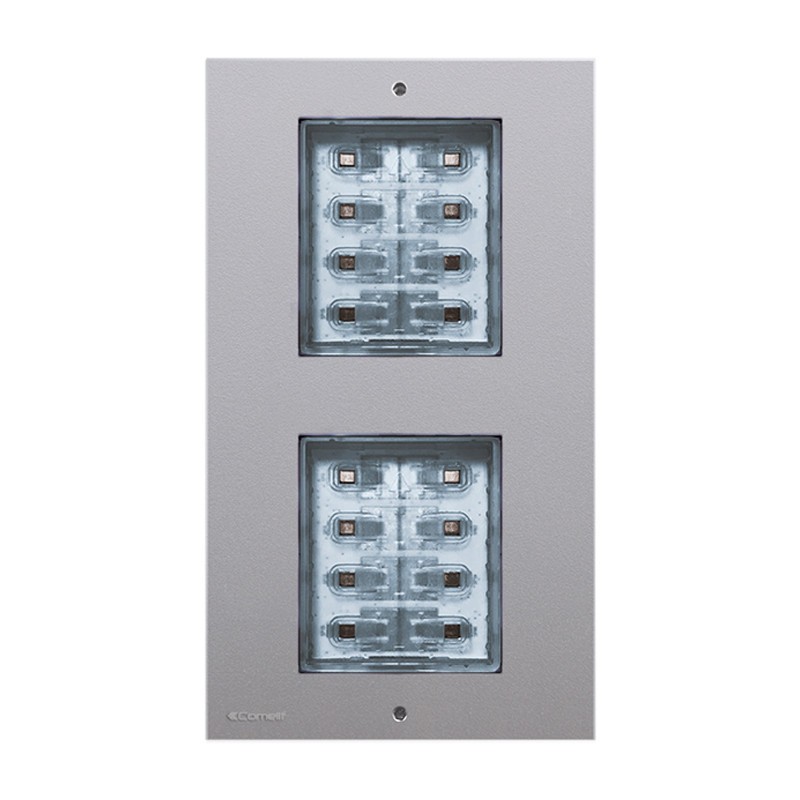

Comelit CIAO pushbutton module for 2 to 16 calls CA2200A
COE CA2200A
8023903378290
Button module for Simplebus 2 CIAO Comelit system , with the following features:
- Technopolymer front panel
- Weather resistant (IP54 degree of protection and paint with anti-UV treatment) and vandalism resistant (IK08 degree of protection)
To be completed with 2/4/8/16 call buttons (items CA9210, CA9211, CA9212 and 2 x CA9212 respectively) that can be purchased separately.
Provided with bracket for wall installation.
Up to 4 button modules can be placed side by side (either horizontally or vertically).
To be used in conjunction with item CA2100A, which can be purchased separately.
€110.71
Items Available: 15
: 1
Frequently bought together
Specifications:
- Audio Simplebus 2 with power supply item 1210/1210A Yes
- Power supply type Power supply from video intercom bus
- Maximum power consumption (W) 0.62
- Number of buttons (no.) 16
- Backlight brightness Yes
- Operating humidity (RH max) (%) 25 to 95
- Environmental class IV
- Backlight color White
- Call Type Buttons
- Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Degree of protection IP54
- Type of buttons Mechanical
- Vandal-proof degree of protection IK08
- Height (mm) 172
- Width (mm) 100
- Depth (mm) 28
- Product weight (g) 250
- Operating temperature (°C) -25/+55
- Supply voltage 33VDC
- Type coating materials Technopolymer
- Product color Gray RAL 9006
- Wall mounting Yes
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
