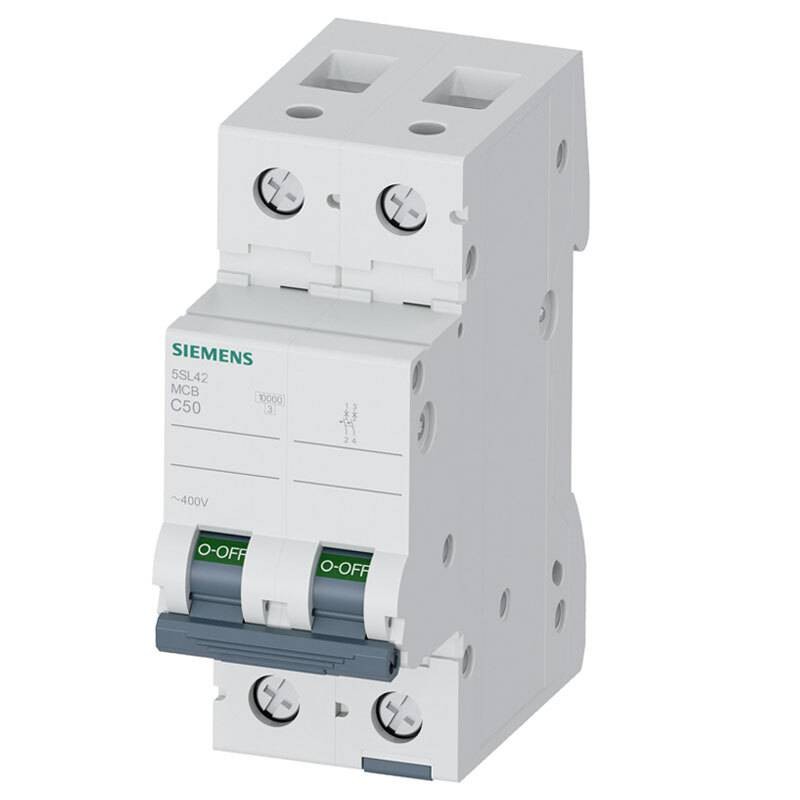

Siemens 2P 50A 10KA Circuit Breaker 2M C 5SL42507
SIE 5SL42507
4001869440408
Siemens 5SL4 circuit breaker with the following characteristics:
- Number of poles: 2
- Rated current: 50 amps
- Rated short-circuit capacity: 10 kA
- Tripping curve: Curve C (for inductive loads)
- Number of modules: 2
It is suitable for industrial or commercial installations with motors or large electrical equipment. It occupies 2 modules in electrical panels.
€54.92
Items Available: 4
: 2
Frequently bought together
The circuit breaker is an ideal protective device for residential and commercial electrical systems. Designed to automatically interrupt current flow in the event of an overload or short circuit.
It has an interrupting capacity of 10KA and a rated current of 50A, which is ideal for circuits with inductive loads due to the trip curve C, which is triggered when the current exceeds 5 to 10 times the rated current.
The C trip curve of a circuit breaker is designed to protect circuits that handle inductive loads, such as motors, transformers or equipment with high inrush currents.
This curve is triggered when the current exceeds 5 to 10 times the rated value, allowing the system to tolerate temporary current spikes without tripping the device unnecessarily.
It is ideal for industrial and commercial installations, where temporary overload is common at the startup of energy-intensive devices.
Features:
- Number of poles: 2
- Class of trip characteristic C
- Mechanical service life (trip cycles) typ. 10 000
- Overvoltage category III
- Pollution degree 2
- Insulation voltage at maximum DC rating: 440V
- Protection class: IP20, with conductors connected

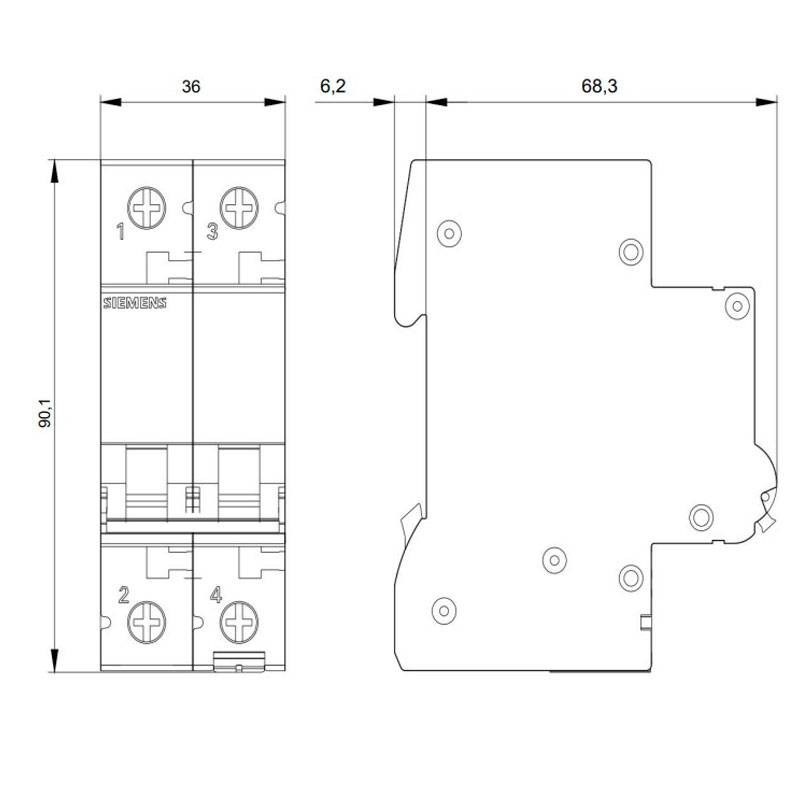

- Height: 90mm
- Width: 36 mm
- Depth 76 mm
- Number of width modular units 2
- Ambient temperature during operation: -25/+45 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 10KA
- Amps: 50A
- Circuit Protections: Circuit breakers
