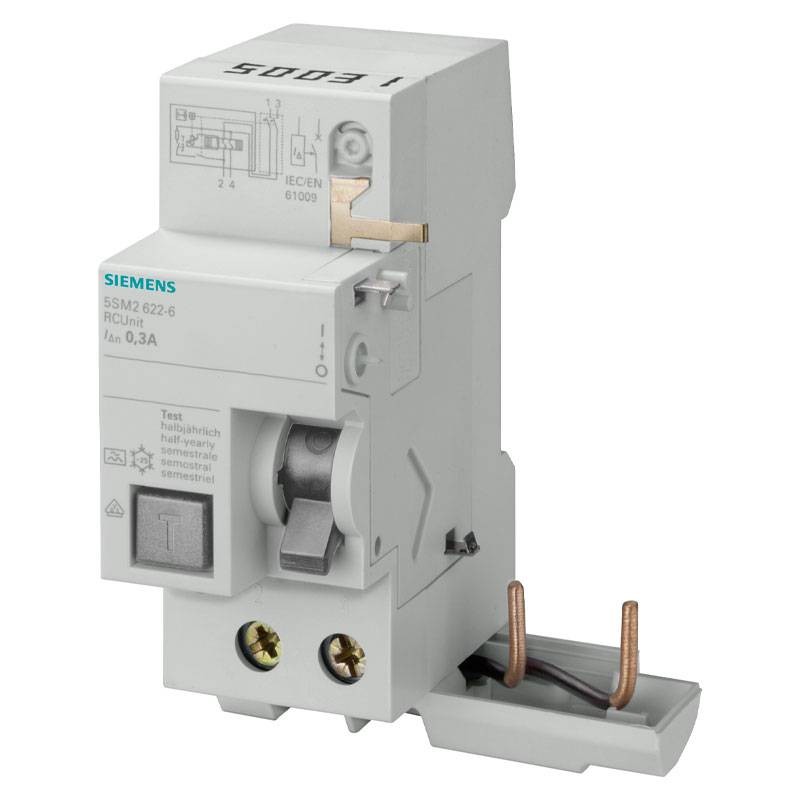

Siemens Earth Leakage add-on Block 2P 63A 300mA type A 2 modules for 5SL4 5SM26266
SIE 5SM26266
4001869461045
Siemens Type A earth leakage add-on block, designed to provide protection against current leakage in electrical systems, compatible with 5SL4 circuit breakers, with the following characteristics:
- Number of poles: 2
- Rated current: 63Amps
- Differential current: 300mA
- Type: A
- DIN connection (universal for any switchboard on the market)
- Number of modules: 2
Compatible with Siemens 5SL4 series circuit breakers.
€83.13
Items Available: 7
: 2
Frequently bought together
Siemens Earth Leakage add-on Block 2P 63A 300mA type A 2 modules for 5SL4
Designed to protect systems from Type A fault currents, this earth leakage add-on block offers effective protection against 300mA current leakage, ideal for preventing short circuits and malfunctions that could compromise system safety. With an impulse withstand resistance of up to 1 kA, it is perfect for environments with high safety requirements.
Easy DIN rail mounting
This earth leakage add-on block is designed for quick DIN-rail installation, with a compact design of 2 modular units in width, and a recessed depth of 70 mm. Compatibility with rigid and multiwires up to 25 mm² facilitates installation and ensures a secure and stable connection.
Detailed technical specifications:
- Model: earth leakage add-on block for 5SL4
- Fault current type: A
- Rated supply voltage: 230 V AC
- Isolation voltage: 460 V
- Impulse withstand voltage: 4,000 V
- Impulse withstand current: 1 kA
- Overvoltage category: III
- Pollution degree: 2
- Connectable conductor cross section: 1.5 - 25 mm² solid and multi-strand wire
- Mounting: DIN rail

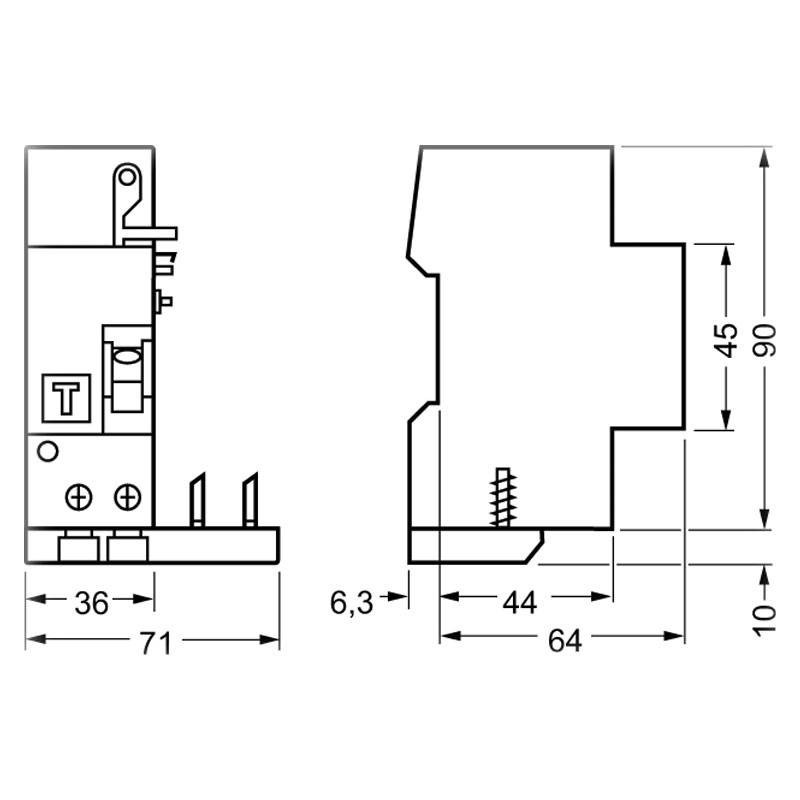

- Dimensions: Height 90 mm, Width 70 mm, Depth 70 mm
- Ambient temperature: -25 °C to 45 °C
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.3A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
