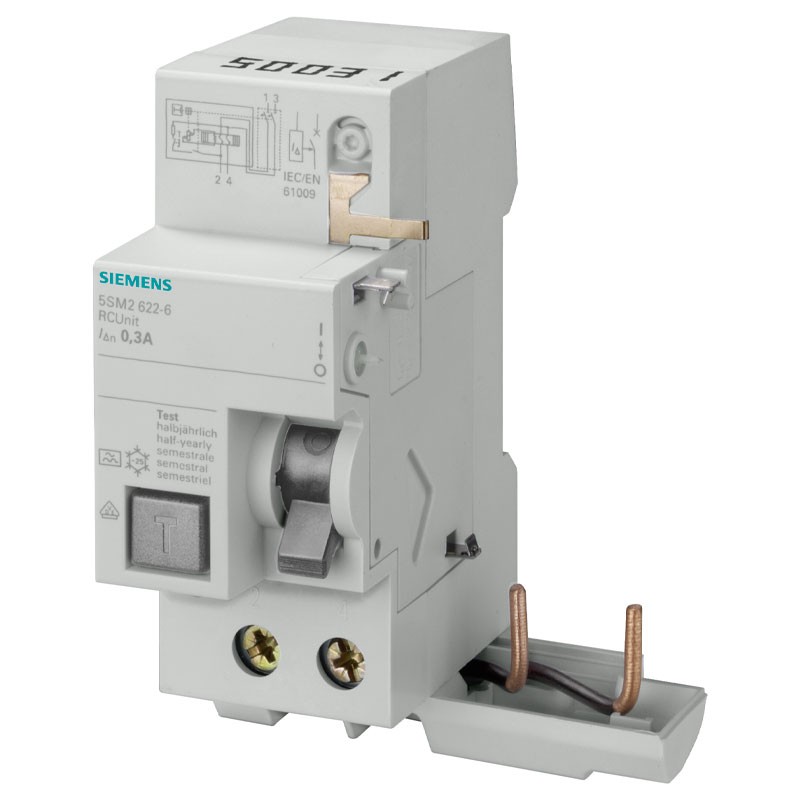

Siemens Earth Leakage add-on Block 2P 40A 300mA AC 2M 5SL6-L4 5SM26232
SIE 5SM26232
4001869484594
Siemens selective Earth Leakage add-on Block with the following characteristics:
- Number of poles: 2
- Rated current: 40 amperes
- Differential current: 300 mA
- Voltage: 230 Vac
- Type: AC
- DIN connection (universal for any switchboard on the market)
- Number of modules: 2
Compatible with Siemens 5SL6 - 5SL4 series circuit breakers.
€105.28
Items Available: 40
: 36
Frequently bought together
The Earth Leakage add-on Block is a protective device that detects ground fault currents and breaks the circuit to prevent electric shock hazards.
The AC-type block is designed to detect and protect against pure alternating type (AC) earth fault currents. This device interrupts the circuit when it detects a leakage current, preventing possible electric shock.
It is suitable for electrical systems with conventional appliances such as lights, electrical outlets, and resistive loads.
Unlike Type A, it does not detect pulsating currents. It is an economical and safe solution for installations that do not include advanced electronic devices.
Features:
- Number of poles: 2
- Mechanical service life (operating cycles) typ. 10 000
- Overvoltage category: III
- Pollution degree: 2
- Type of operating voltage voltage: AC
- Rated insulation voltage: 460 V
- Degree of protection: IP20, for installation in distribution board, with conductors connected

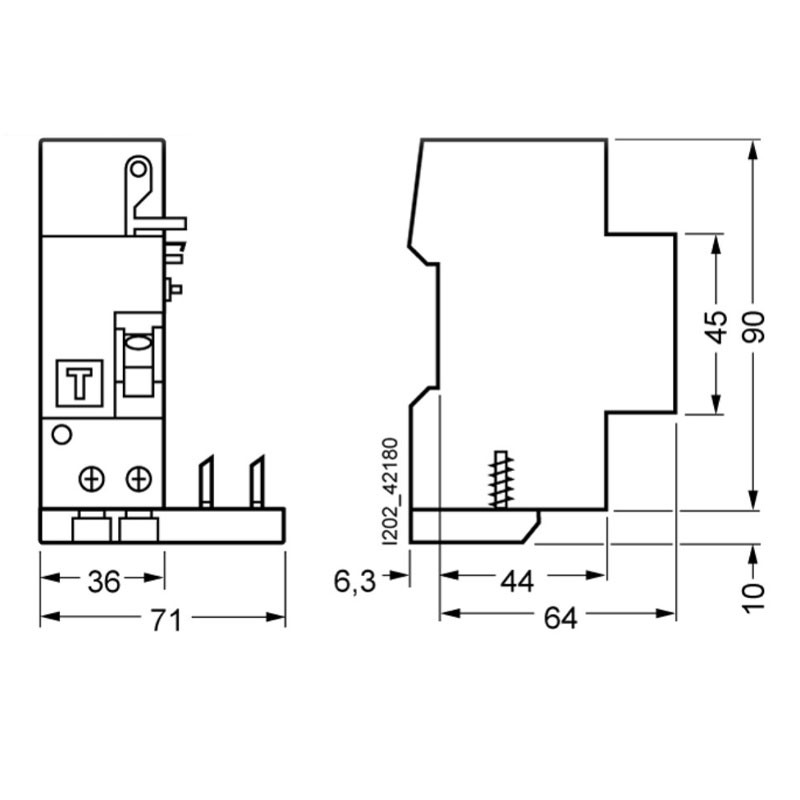

- Height: 90 mm
- Width: 70 mm
- Depth: 70 mm
- Number of width modular units: 2
- Type of mounting: DIN rail
- Ambient temperature during operation: -25/+45 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 2P
- RCD Type: AC
- Differential current : 0.3A
- Amps: 40A
- Circuit Protections: Earth Leakage add-on Blocks
