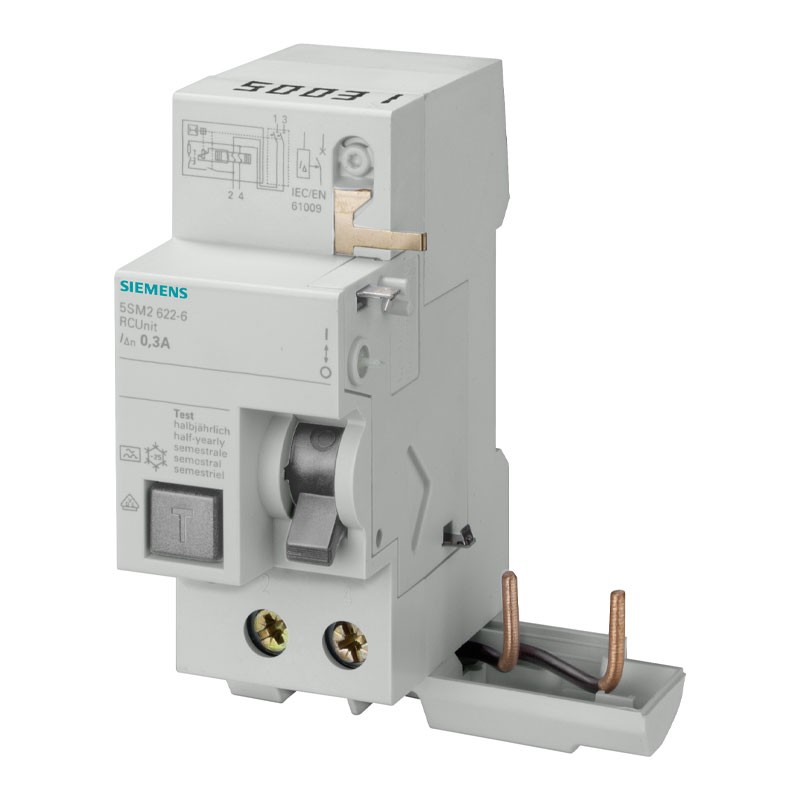

Siemens Earth Leakage add-on Block 2P 63A 300mA A 2M 5SL6-SL4 5SM23266
SIE 5SM23266
4001869461021
Siemens selective Earth Leakage add-on Block with the following characteristics:
- Number of poles: 2
- Rated current: 63 amps
- Differential current: 300 mA
- Voltage: 230 Vac
- Type: A
- DIN connection (universal for any switchboard on the market)
- Number of modules: 2
Compatible with Siemens 5SL6-5SL4 series circuit breakers.
€114.15
Items Available: 61
: 3
Frequently bought together
Type A Earth Leakage add-on Block is a protective device that detects ground fault currents and breaks the circuit to prevent electric shock hazards.
Type A is designed to detect alternating and pulsating currents, making it suitable for the protection of modern electronic devices.
It is often used in domestic and industrial environments to protect people and electrical equipment.
Features:
- Number of poles: 2
- Mechanical service life (switching cycles) typ. 10 000
- Overvoltage category: III
- Pollution degree: 2
- Type of operating voltage voltage: AC
- Rated insulation voltage: 460 V
- Degree of protection: IP20, for installation in distribution board, with conductors connected

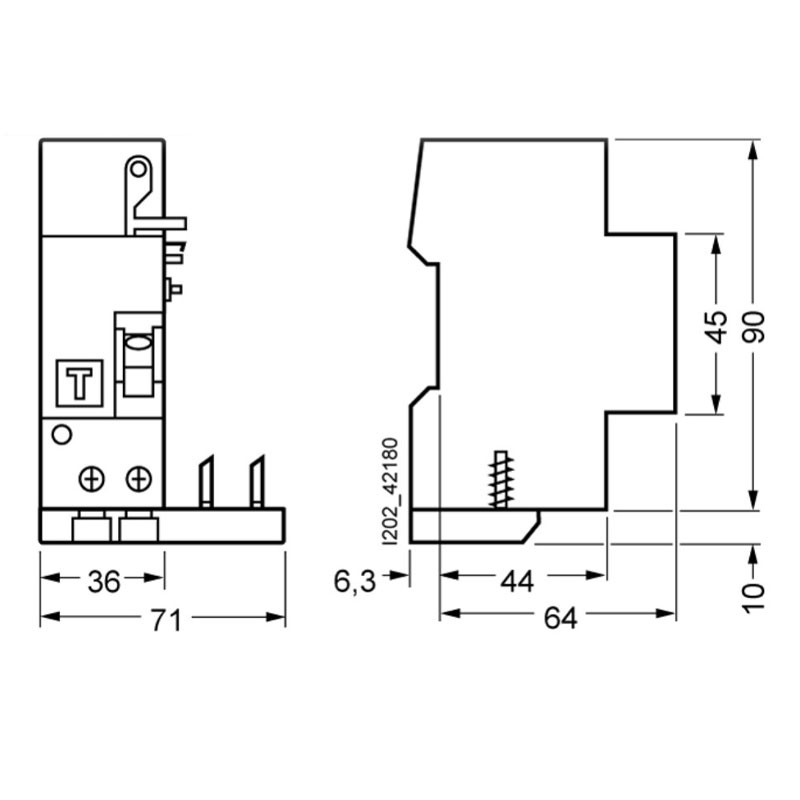

- Height: 90 mm
- Width: 70 mm
- Depth: 70 mm
- Number of width modular units: 2
- Type of mounting: DIN rail
- Ambient temperature during operation: -25/+45 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.3A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
