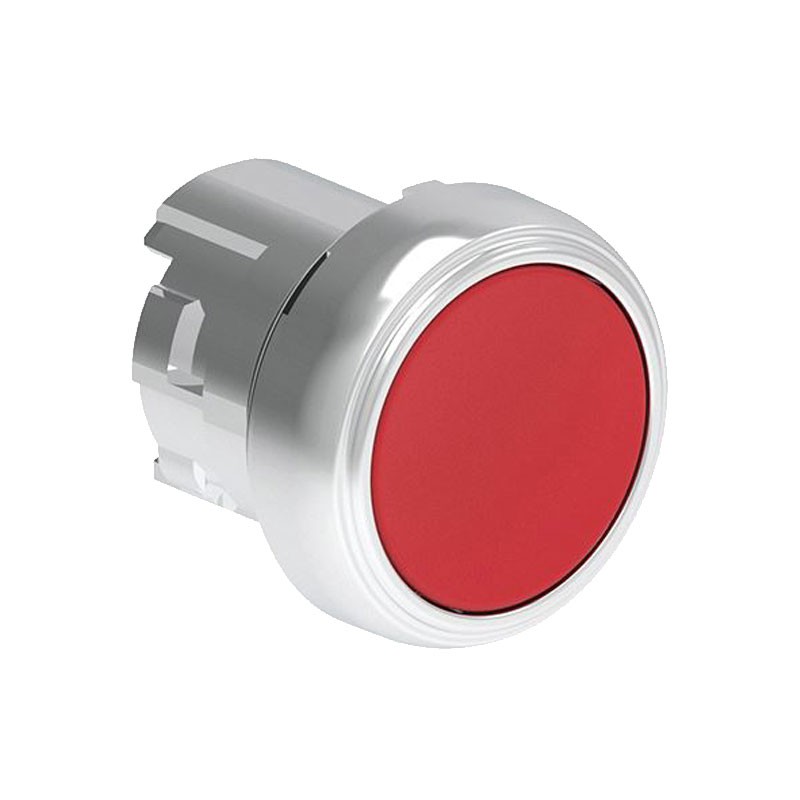

Lovato Platinum 22 mm impulse button Shaved Red LPSB104
LOV LPSB104
8013975267547
Operator Pulse button Lovato Platinum, diameter 22 mm Shaved Red color.
For Fixing add Base fixing buttons and selectors Lovato Platinum series LPXAU120M
Auxiliary contacts Lovato Platinum add items LPXC01 / LPXC10
€4.68
Items Available: 52
: 3
Frequently bought together
Features:
- Position type shaved
- Material Aluminum and zinc alloy
- Degree of protection (IEC) IP66, IP67 and IP69K
- Force per actuation kg-lb <0.5Kg / 1.1Ib
- Mechanical life span - Pulse buttons cycles 5000000
- Without fixing base
- Degree of protection (UL) Type1, 2, 3R, 4, 4X, 12, 12K
- Operating temperature min °C -25 - max °C +70
- Storage temperature min °C -40 - max °C +85.
There are no reviews
Data sheet
- Type: Buttons
- Degree of protection: IP67
