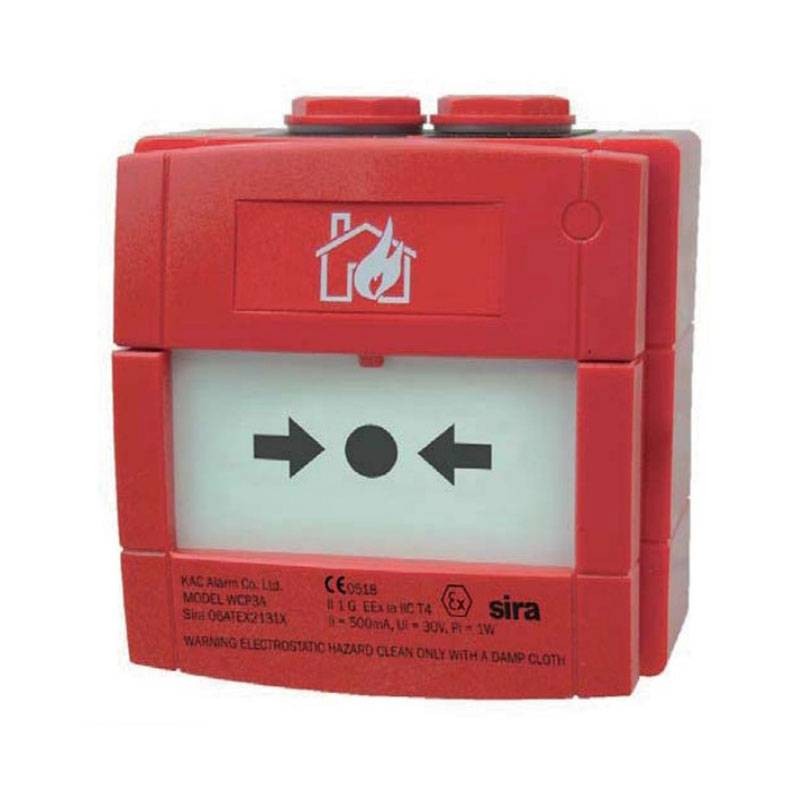

Notifier W3A IP67 Manual Glass Break Alarm Button W3AR000SGK01381
NOT W3AR000SGK01381
Notifier Manual Alarm Button is a conventional intrinsically safe alarm device designed for use in outdoor environments and hazardous areas. This button is ideal for applications in damp and dusty conditions. It is extremely easy to install, thanks to the included flush-mounting box and the possibility of visible installation, with the following features:
-
Degree of protection: IP67, suitable for outdoor environments and dusty and humid conditions
-
Contact: One-exchange device, equipped with normally open and normally closed contacts, easily selectable
-
Installation: Plug and play that reduces time and cost
-
Compatibility: Suitable for hazardous areas according to ATEX Directive 94/9/EC
-
Design: Made of PC/ABS for strength and durability
-
Maximum voltage: 30V DC, with a capacity of 2A limited by the barrier
-
Safety: In case of unauthorized removal of the cover, the button generates an alarm status
€165.81
Items Available: 48
: 44
Frequently bought together
Manual Alarm Button Reliability and Safety
The Notifier Manual Alarm Button is designed to ensure maximum reliability and safety, even in the most critical situations. Thanks to its IP67 rating, it is suitable for use outdoors and in high humidity and dusty conditions, ensuring its reliability in harsh environments.
Materials and Intrinsic Safety for Hazardous Areas
Made of durable PC/ABS material, this manual pushbutton is designed to last, offering resistance to stress and external agents. The choice of this material ensures long device life, even in particularly hostile environments.
The Push Button is an ideal solution for areas classified as explosive, in accordance with the ATEX 94/9/EC directive. Thanks to its intrinsic safety, the device is designed to provide protection even in hazardous environments, where it is necessary to prevent the occurrence of critical situations.
Simplified Operation and Installation
The device operates with one normally open and one normally closed contact, which makes it easy to select the alarm activation mode. This simple and quick configuration reduces response time and improves operational efficiency.
Installation of the pushbutton is greatly facilitated by the plug and play design, significantly reducing installation time. The presence of a removable terminal block makes it even easier to connect cables, allowing optimization of the technician's time and work during installation.
Product advantages
-
Easy installation with plug and play system
-
High resistance to outdoor environments thanks to IP67 rating
-
Compatibility with hazardous areas according to ATEX regulations
-
Ease of use due to easy contact selection (open/closed)
-
Enhanced safety with alarm triggered in case of unauthorized removal
Applications
-
Fire alarm systems in outdoor environments or hazardous areas
-
Conventional alarm systems for protection of industrial, commercial and residential areas
-
Installations in hazardous areas where compliance with ATEX standards is required
Technical Specifications Notifier Alarm Button
Electrical Characteristics
| Degree of Protection | IP67 |
| Maximum voltage | 30 VDC |
| Range | 2 amps (limited by barrier) |
| Cables supported | 0.5 to 2.5 mm² |
Physical Characteristics
| Material | PC/ABS |
| Color | Red |
| Dimensions (W × H × S) | 80 × 25 × 2 mm |
Operating Conditions
| Operating temperature | -30°C TO +70°C |
| Operating humidity | 0 - 95% non-condensing |
There are no reviews
Data sheet
- Type: Buttons
