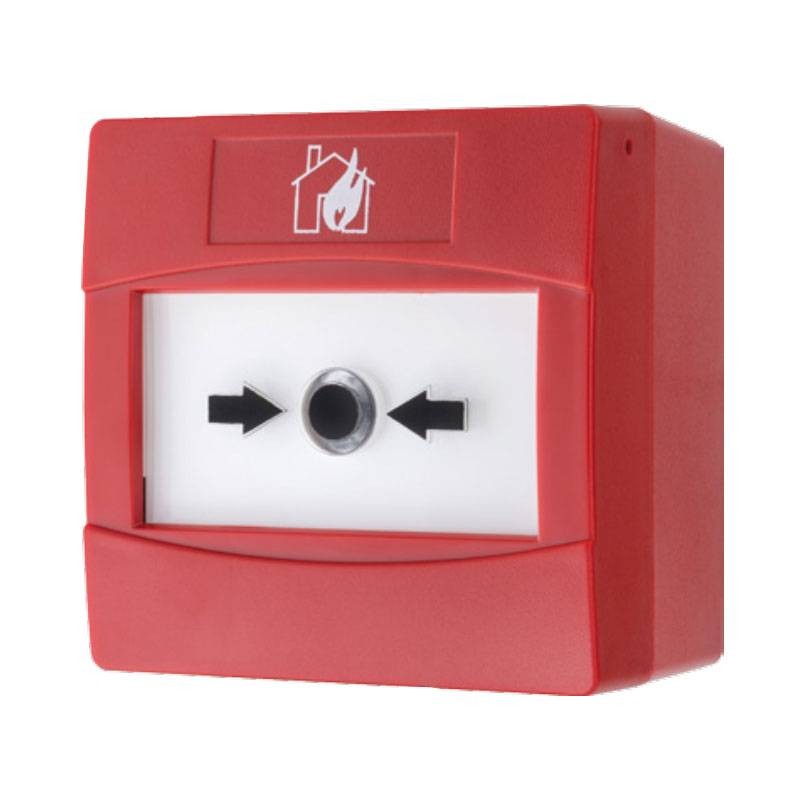

Notifier Red Conventional Fire alarm system Button MCP-R6847L-R
NOT MCP-R6847L-R
Notifier Conventional fire alarm system, Red colour is a manually operated, easy-to-reset call point distinguished by unique and innovative features. It is designed to be equipped with the highest visibility and reliability of use, while providing a pleasant aesthetic appeal:
- Dimensions 88x87x55cm
- Max Voltage 30V
- Minimum Voltage 4.5V if LED with R1 is off - 6V if LED with R2 is off
- Operating current 18mA 12V (R1) - 13mA 12V (R2) - 45mA 24V (R1) - 31mA 24V (R2)
- Wiring 0.5-2.5mm2
- Operating temperature -30 / + 70 degrees
- Humidity 0-95%
- Degree of protection IP42
- Material ABS/Polycarbonate
€18.66
Items Available: 12
: 2
Strengths:
- Very high visibility of alarm status
- Visible in the dark
- New, more efficient and reliable activation mechanism
- Highly resistant materials
- Complies with EN54-1 standard
- Patented
Like glass:
- When the active element is pressed, the spring mechanism reproduces the sound of breaking glass while offering the economic and ecological benefits of a resettable element. A new and patented mechanism that ensures high performance and alarm activation with every press
Reflective band from bottom to top:
- he highest level of visibility is provided by a reflective polyester band that appears from below, at the bottom of the active element. A non-traditional, but rather new and patented spring is used to achieve this.
Light ring:
- Under alarm conditions, a patented LED ring illuminates the center of the active element. This innovative design is based on a special light guide that ensures high visibility of the alarm condition
Side light:
- Alarm status is visible from both sides of the call point thanks to two semi-transparent slits that allow the light beam to pass through, thus ensuring maximum visibility for the user
Quick and easy installation:
- The front element fits into the base with simple pressure, without the use of screws. Each unit comes with a label and reset key.
There are no reviews
Data sheet
- Type: Buttons
