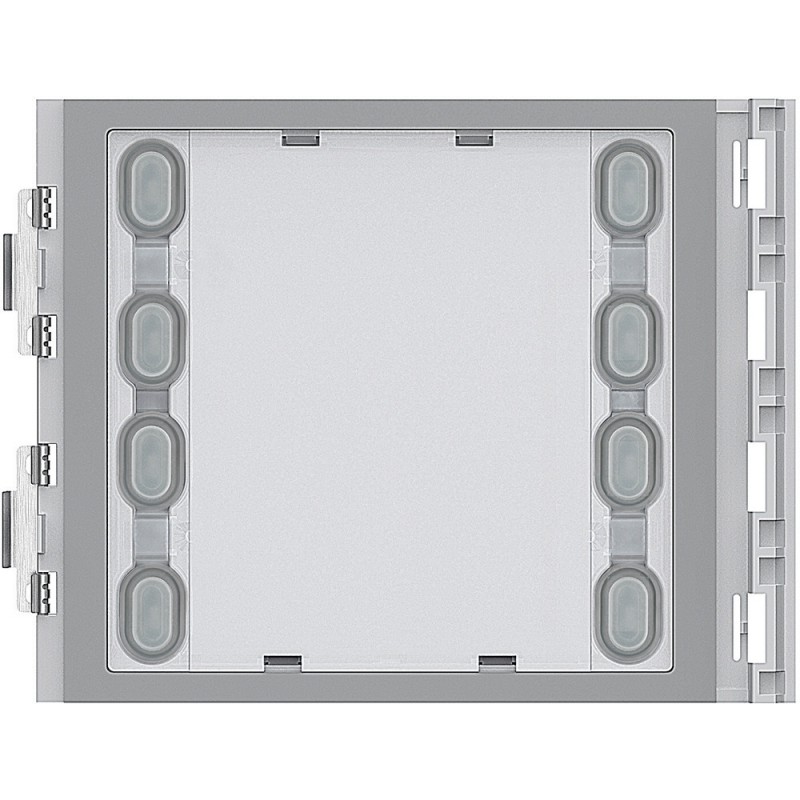

Bticino module 8 additional buttons arranged on double column 352100
BTI 352100
8005543441602
Bticino Sfera module, with 8 additional buttons arranged on double column. Connection through special multi-cable provided. Backlighting of name tags controlled by the sound module or by the combined audio video module.
To be completed with finishing front panel.
To be used in combination with phonic modules 351000, 351100 and audio video modules 351200, 351300.
The device does not need to be configured.
€102.07
Items Available: 39
: 14
Frequently bought together
Technical characteristics:
- Power supply from SCS BUS : 18 - 27 Vdc
- Absorption in stand by with backlight LEDs off: 1 mA
- Stand by absorption with backlighting LEDs on: 7 mA
- Maximum absorption in operation: 7 mA
- Operating temperature: (-25) - (+70)°C
- Degree of protection (assembled push-button panel): :IP54
There are no reviews
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
