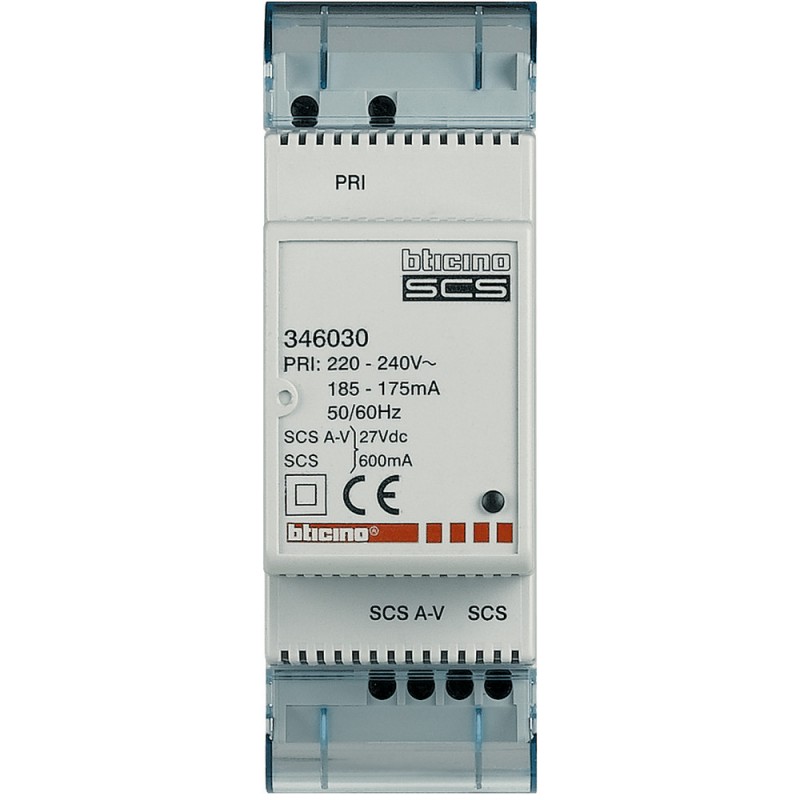

Bticino Compact 2-Wire Power Supply 346030
BTI 346030
8012199956022
Bticino mini power supply with integrated video adapter for the realization of small 2-WIRE video systems (intercom).
€116.53
Items Available: 8
A 2 DIN modules device which allows to realize
- basic video door phone systems (e.g. apartment intercom)
- mini SOUND DIFFUSION systems (absorption up to 600 mA)
- It is a double insulation safety device
- The power supply unit is made in a plastic container, and its installation must be carried out in accordance with the regulations in force in your country.
- The device must NOT be configured.
Advantages:
- Power supply 230 Va.c. @ 50-60 Hz
- It provides a low voltage output at 27 Vd.c. with a maximum current of 600 mA and is protected on the PRI side (with a NON-replaceable fuse) against short circuit and overload.
- It is a SELV double insulation safety device.
PRI (AC power supply input):
- Nominal voltage: 220 - 240 Vac
- Nominal current: 200 - 190 mA
- Working voltage range: 187 - 265 V
- Working frequency range: 47 - 63 Hz
- Power consumption at full load: 21.5 W max
- Power dissipation: 5,3 W (max)
- Efficiency at full load: 80% typ.
- Stand-by power: < 1 W Operating temperature: 5 - 40 °C
- Integrated fuse (PRI side): F1 T2A 250V (NOT REPLACEABLE)
- Size 2 modules
SCS A-V; SCS:
- Nominal voltage: 27 V +/- 100 mV
- Nominal current: 0 - 0.6 A
- Nominal power: 16.2 W
Buon prodotto....................................
Il miglior prezzo del web qualità del prodotto al top come sempre con bticino
Ottima apparecchiatura mi sono trovato benissimo
Data sheet
- Type: Power supplies
