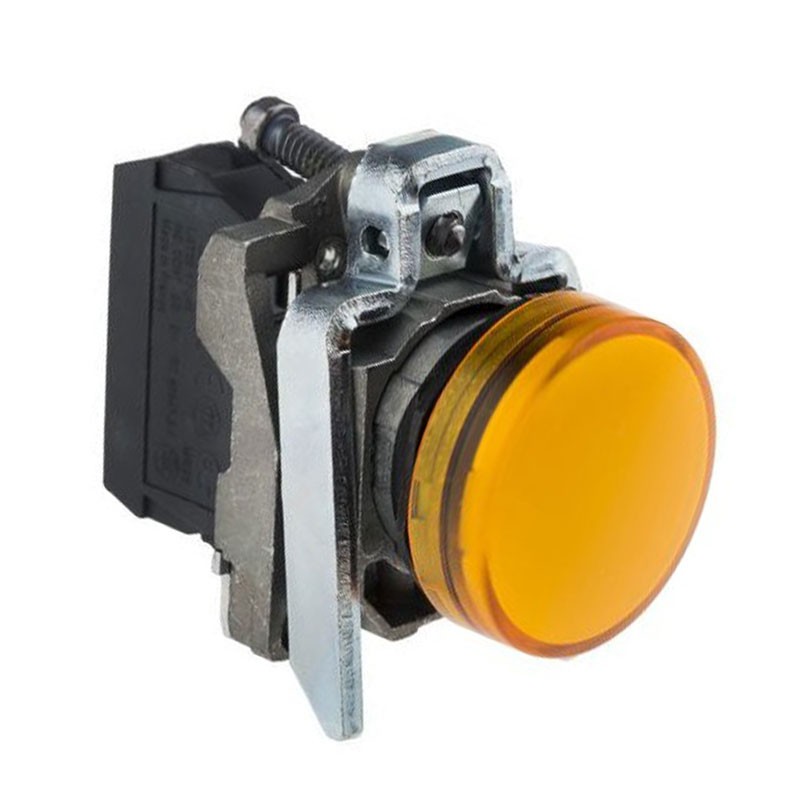

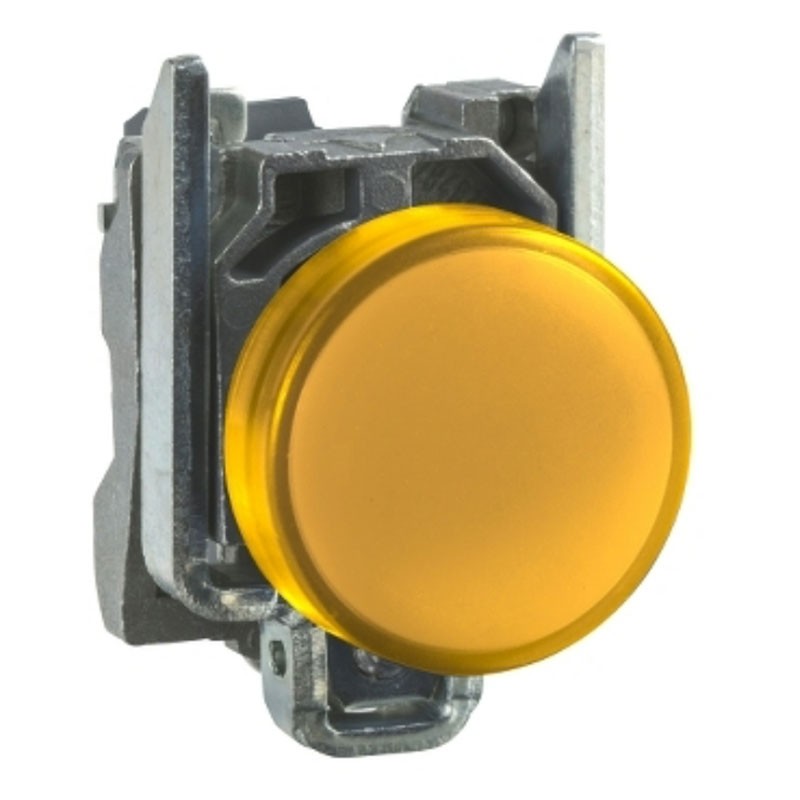

Telemecanique Yellow LED Illuminated Button Switch 24V XB4BVB5
Telemecanique Schneider yellow illuminated push-button switch with the following features:
- Head material: chrome-plated metal
- Mounting base material: zamak
- Mounting diameter: 22mm
- Head type: Standard
- Head shape: Circular
- Capsule or gem color: yellow
- Operator Info: With smooth gem
- Light source: Universal LED
- Lamp socket: LED
- Light source color: yellow
- Rated supply voltage [Us]: 24 V AC/DC 50/60 Hz

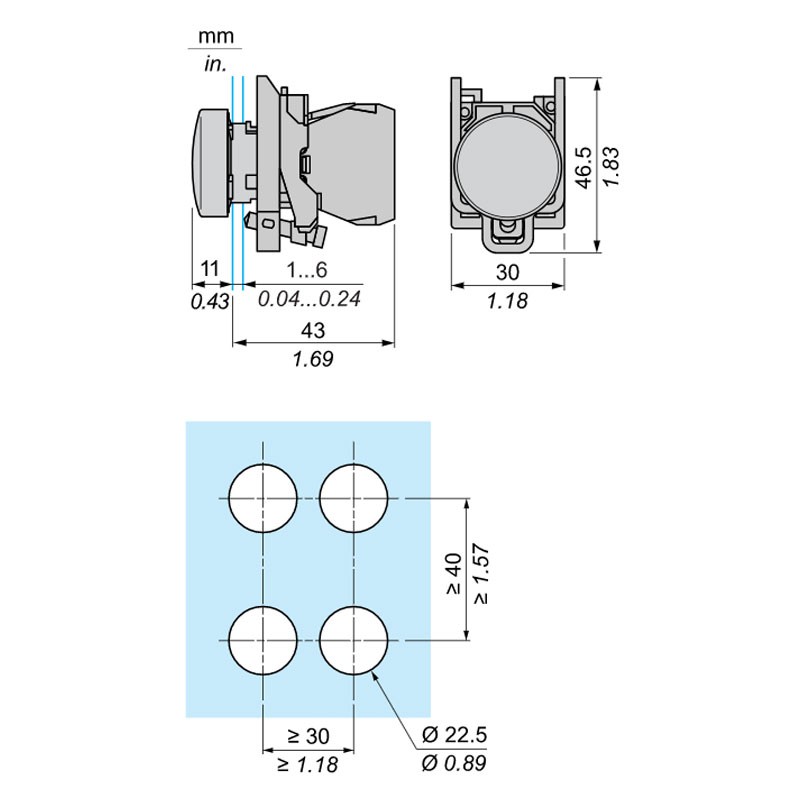

- Height 47 mm
- Width 30 mm
- Depth 54 mm
Telemecanique Yellow LED Illuminated Button Switch 24V XB4BVB5
Tax included
Frequently bought together
Schneider Electric's Harmony XB4 smooth gem yellow modular indicator lamp is powered by 24 V AC/DC and uses a universal LED and screw terminals. It has a metal body.
This indicator lamp, designed to last without maintenance for bright indication of process and machine operation, can be easily installed in a standard 22 mm diameter hole and connected with simple screw terminals. It is clearly visually distinguishable from a distance by bright long-lasting LED illumination. It is shock-resistant, vibration-resistant, dust-tight, and watertight with IP66, IP67, IP69, and IP69K ratings, making it ideal for use in harsh environments.
Advantages:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Environmentally friendly product performance
Connections-clamps:
- Screw fastening terminals, <= 2 x 1.5 mm² with cable end complying with EN/IEC 60947-1
- Screw-fixing terminals, 1 x 0.22...2 x 2.5 mm² without cable end complies with EN/IEC 60947-1
Other Specifications:
- Description ISO terminals No. 1 (X1-X2)PL
- Weight 0.08 kg
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Rated insulation voltage [Ui]: 250 V (pollution degree 3) in accordance with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 4 kV complying with EN 60947-1
- Signaling type: Fixed
- Power consumption 18 mA
- Service life: 100000 H at rated voltage and 25 °C
- Overvoltage resistance:_ 1 kV complying with IEC 61000-4-5
- Supply voltage limits: 19.2...30 V DC, 21.6...26.4 V AC
- TH protection treatment.
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- Protection class against electrical discharge: Class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529 - IP67 - IP69 -IP69K
- NEMA degree of protection: NEMA 13 - NEMA 4X
- Degree of protection IK IK06 in accordance with IEC 50102
- Vibration resistance: 5 gn (F= 12...500 Hz) complies with IEC 60068-2-6
- Resistance to fast transients: 2 kV complying with IEC 61000-4-4
- Resistance to electromagnetic fields: 10 V/m complying with IEC 61000-4-3
- Electrostatic discharge resistance: 6 kV on contact (on metal parts) complies with IEC 61000-4-2, 8 kV in free air (in insulating parts) complies with IEC 61000-4-2
- Electromagnetic emission: Class B in accordance with IEC 55011
Data sheet
- Type:
- Buttons
- Voltage:
- 24V
- Degree of protection:
- IP66
