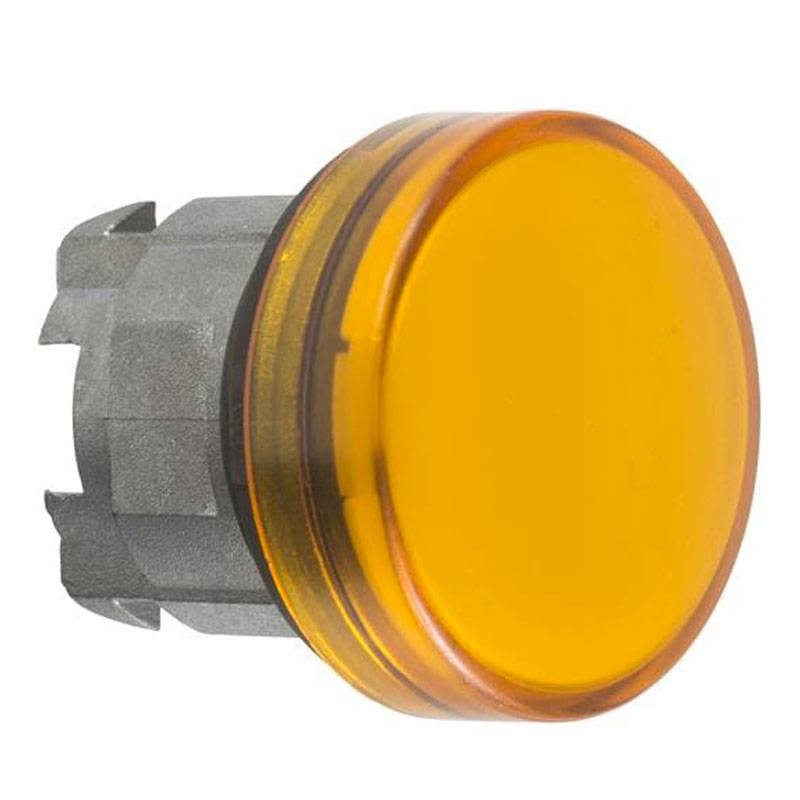

Telemecanique lamp head smooth yellow LED ZB4BV053
SNR ZB4BV053
3389110894981
Schneider lamp head smooth yellow indicator light with the following characteristics:
- Product or component type: Spy lamp head
- Product compatibility: BA 9s
- Mounting diameter: 22mm
- IP degree of protection: IP66 - IP67 - IP69 - IP69K
- IK degree of protection: IK06
€4.09
Items Available: 239
: 55
Frequently bought together
Schneider Electric's Harmony XB4 smooth gem head for universal LED pilot light is yellow.
It has a round shape and a chrome-plated metal ferrule. This spy lamp head with universal LED is designed to last a long time without maintenance for a bright indication of machine and process operations. It is clearly visually distinguishable from a distance due to the vivid color of the lens, which allows complex machine states to be read immediately. With its IP66 rating, it is resistant to shock, water, dust and vibration, and is ideal for use in harsh environments.
Advantages:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Ideal for harsh environments, such as applications requiring high shock and vibration resistance
- Environmentally friendly product performance
Features:
- Head material: Chrome-plated metal
- Head shape: Circular
- Capsule or gem color: yellow
- Resistance to high pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Electrical composition code:P1 in Direct front mounting on button with LED, P2 in Direct front mounting on button with integrated LED and transformer
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration complies with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half sine wave acceleration complies with IEC 60068-2-27
- Dimensions: height 29 mm width 29 mm depth 30 mm
- Weight: 26 grams
Data sheet
- Type: Indicator heads
