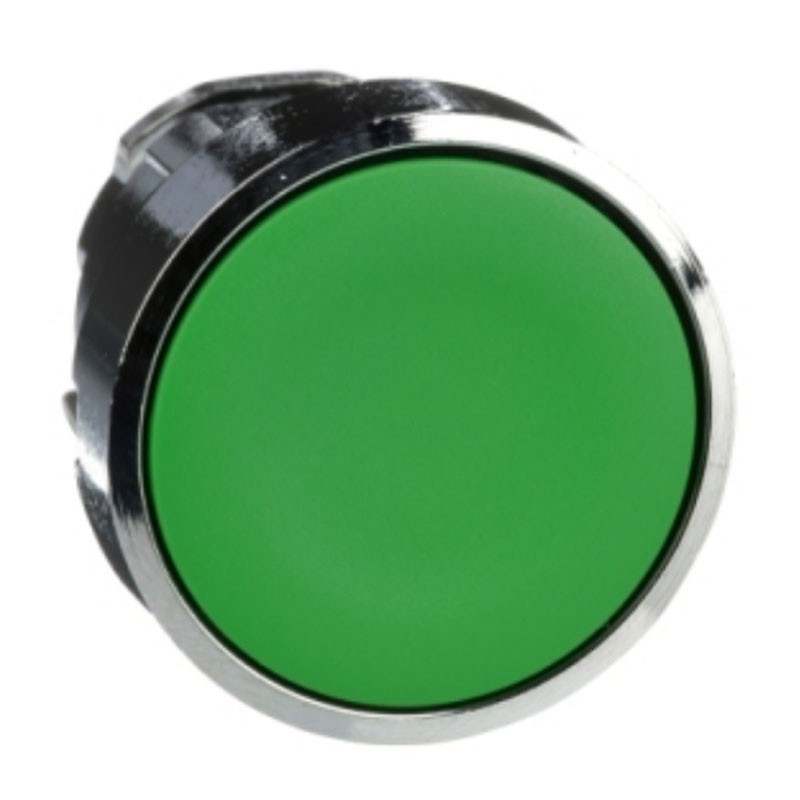

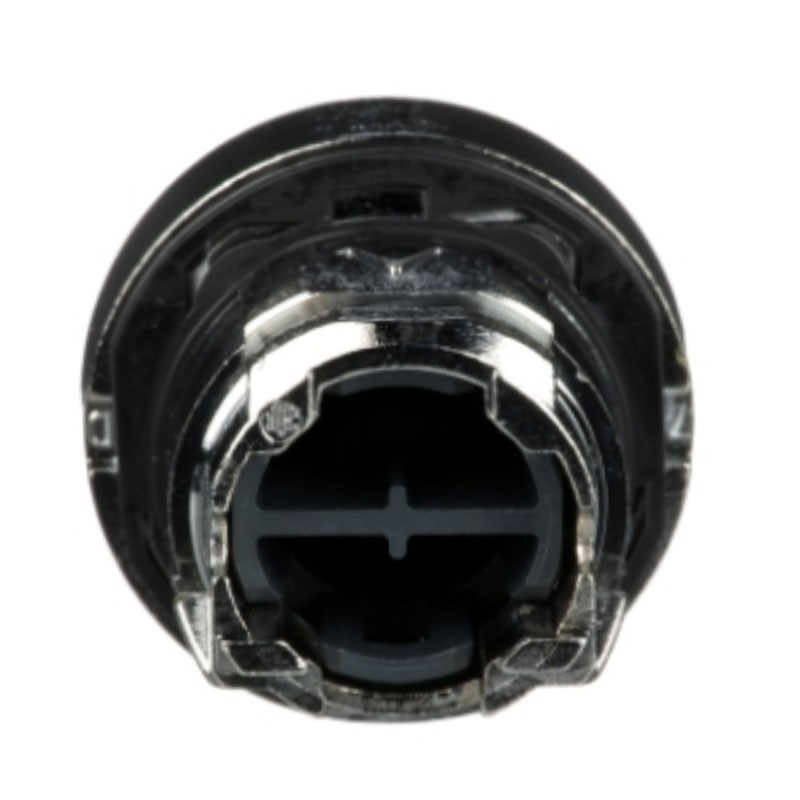

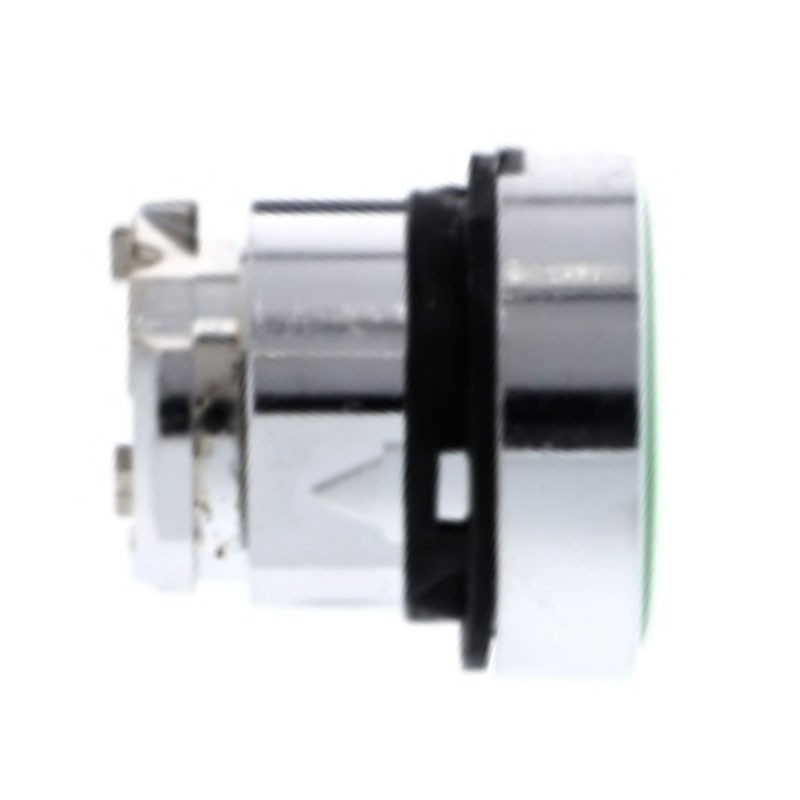

Telemecanique Impulse Button Head Green ZB4BA3
SNR ZB4BA3
3389110895742
Schneider Telemecanique impulse button head, with the following features:
- Head material: chrome-plated metal
- Mounting diameter: 22 mm
- Head type: standard
- Head shape: circular
- Operator type: impulse
- Operator type: filoghiera green, unmarked

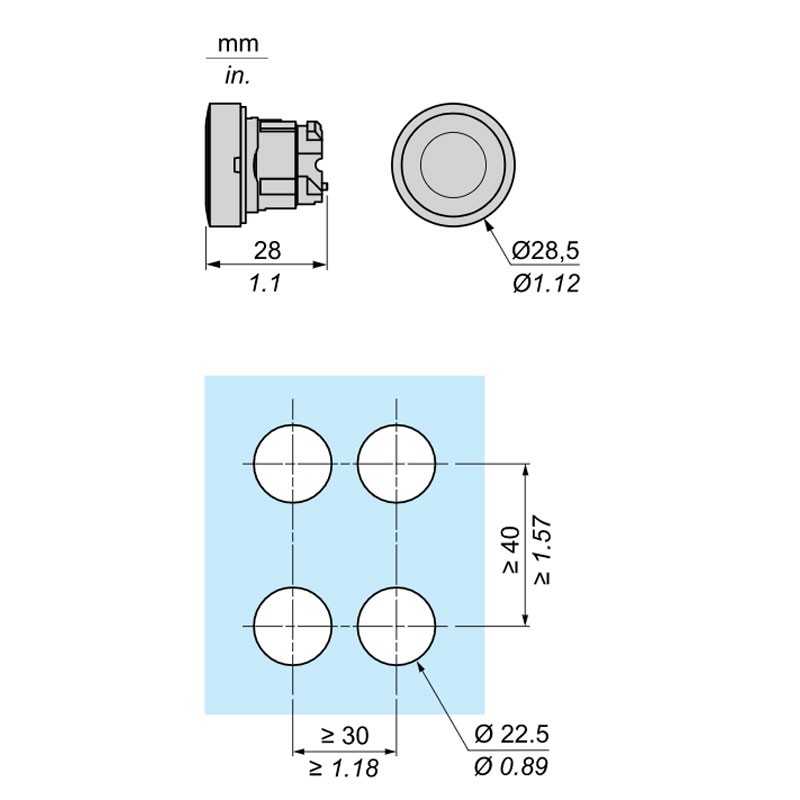

- CAD total width: 29 mm
- Total CAD height: 29 mm
- Total CAD depth: 28 mm
Telemecanique Impulse Button Head Green ZB4BA3
€4.86
€4.86
Tax included
Tax included
Pay in installments with Klarna
Items Available: 252
Frequently bought together
Advantages:
- Metal Ferrule
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22mm hole to ensure compatibility in pre-existing machinery
- High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Environmentally friendly product performance
Other features:
- Mechanical durability: 10000000 cycles
- Protection treatment: TH
- Storage temperature: -40...70°C
- Ambient operating temperature: -40...70 °C
- Overvoltage category: Class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529 - IP67 - IP69 - IP69K
- NEMA degree of protection: NEMA 13 - NEMA 4X
- IK degree of protection: IK06 complying with IEC 50102
- Vibration resistance: 5 gn (F= 2...500 Hz) complies with IEC 60068-2-6
Shock resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration complying with IEC 60068-2-27
Electrical composition code:
- C1 for <9 single contacts in direct front pushbutton mounting
- C2 for <9 single and double contacts in Direct front mounting on pushbutton
- C11 for <3 single contacts in Direct front mounting on pushbutton
- C15 for <1 single contacts in Direct front mounting on pushbutton
Reference Standards:
- JIS C8201-5-1
- UL 508
- EN/IEC 60947-5-5
- CSA C22.2 No 14
- EN/IEC 60947-5-1
- EN/IEC 60947-1
- EN/IEC 60947-5-4
- JIS C8201-1
Product Certifications:
- CSA
- DNV
- BV
- GL
- LROS (Lloyds Register of shipping)
- UL listed / CSA
Data sheet
- Type:
- Indicator heads
