Schneider lamp head smooth gems red spy Ø22 ZB4BV04
SNR ZB4BV04
3389110889512

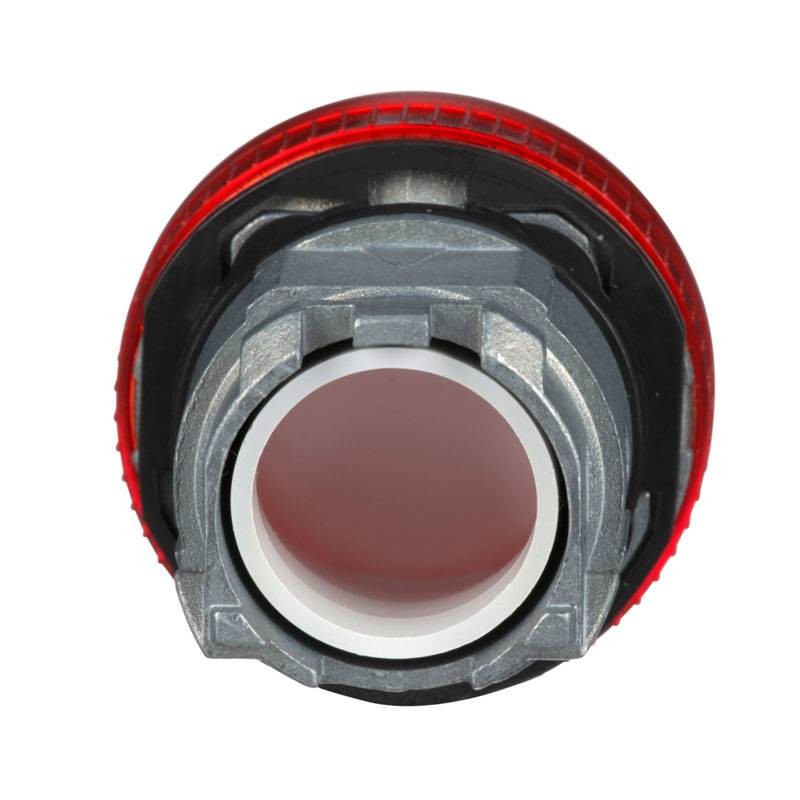

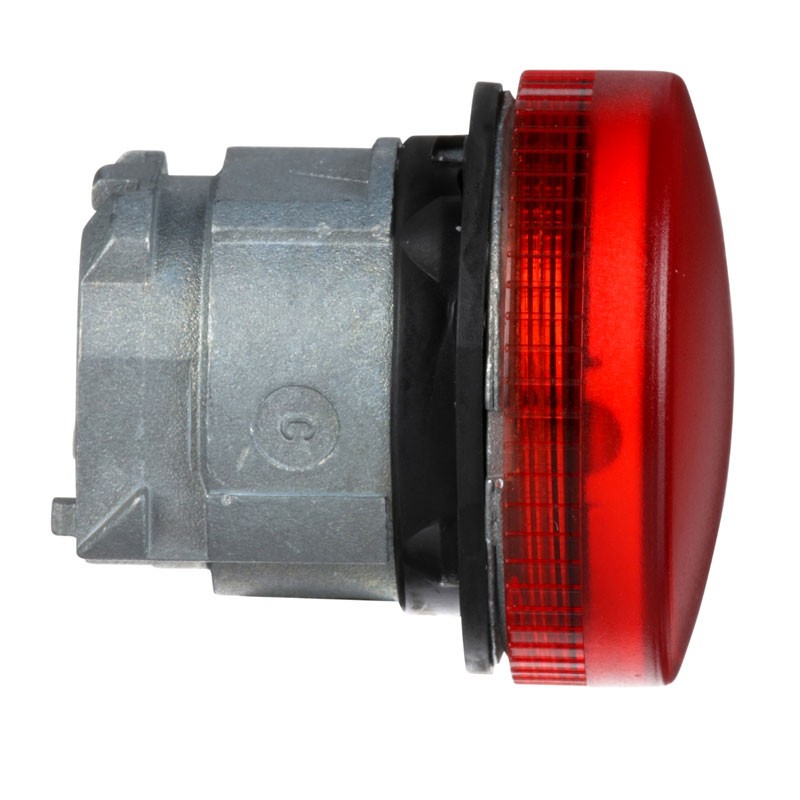

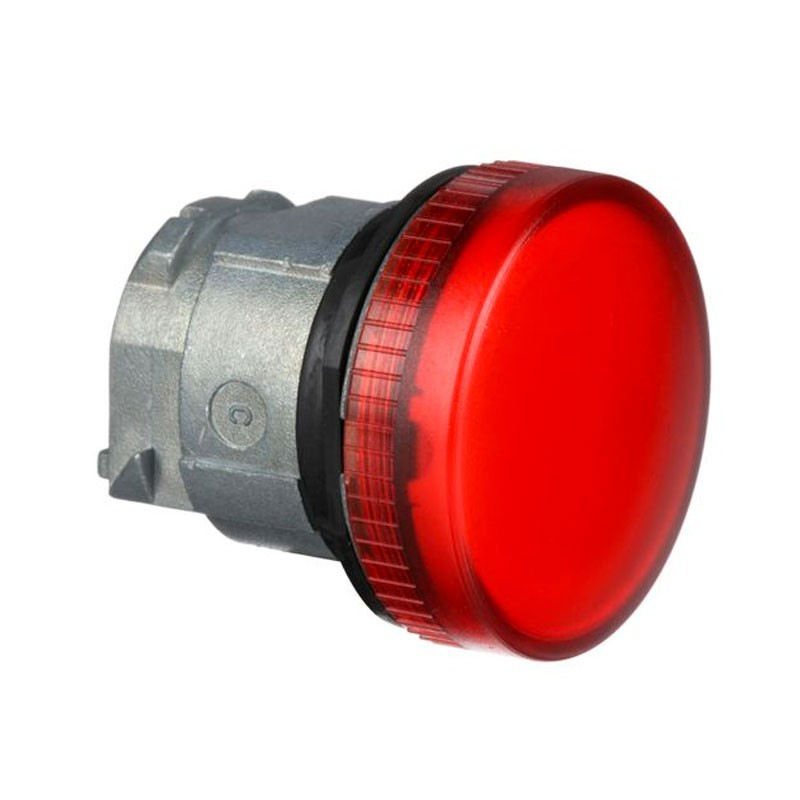

Schneider lamp head smooth gems red indicator light with the following features:
- Product or component type: Spy lamp head
- Product compatibility: BA 9s
- Mounting diameter: 22mm
- IP degree of protection: IP66 - IP67 - IP69 - IP69K
- IK degree of protection: IK06
€4.44
Items Available: 38
: 10
Frequently bought together
Schneider Electric's Harmony XB4 red gem head for spy lamp comes with BA9s base. It has a round shape and a chrome-plated metal ferrule.
This spy lamp head with BA9s base is designed to last a long time with little maintenance for a bright indication of process and machine operation.
It is clearly visually distinguishable from a distance due to the vivid color of the bud, which allows complex machine states to be read immediately.
With its IP66 rating, it is resistant to shock, water, dust and vibration, and is ideal for use in harsh environments.
Metal Ferrule. Simple modular design simplifies post-installation maintenance, modification, and adaptation of machines.
Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery.
Wide operating temperature range of -40°C to 70°C ensures versatility of product use.
Ideal for harsh environments, such as applications requiring high shock and vibration resistance.
Features:
- Head material: Chrome-plated metal
- Head shape: Circular
- Capsule or gem color: Red
- Resistance to high pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Electrical composition code: P3 in Direct front mounting on button with BA 9s - P4 in Direct front mounting on button with BA 9s and transformer
- Storage temperature: -40/+70 °C
- Ambient operating temperature: -40/+55 °C
- Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration complies with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half sine wave acceleration complies with IEC 60068-2-27

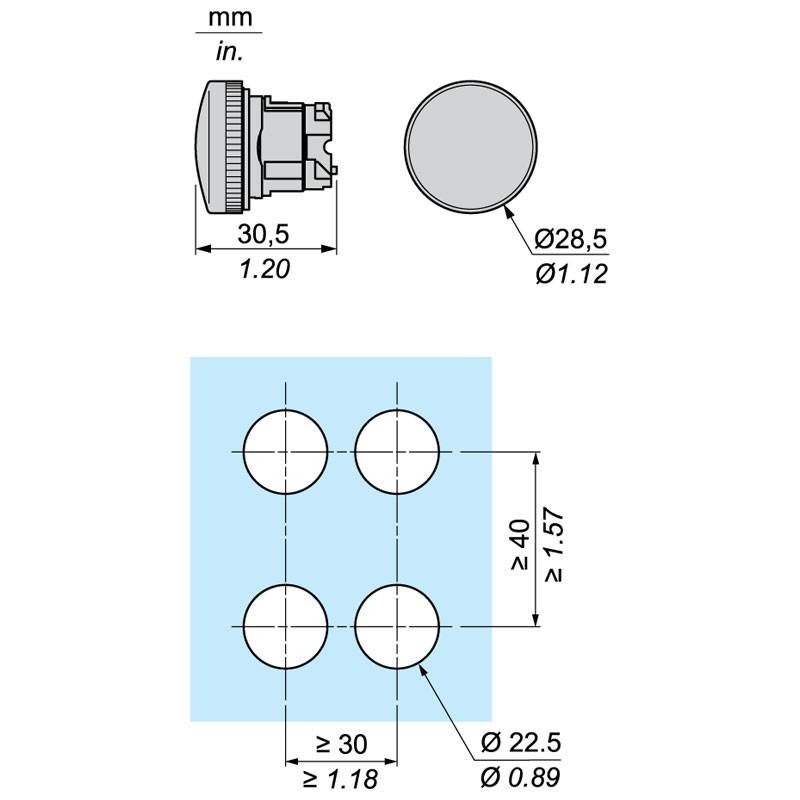

- Dimensions: height 29 mm width 29 mm depth 31 mm
There are no reviews
Data sheet
- Type: Indicator heads
