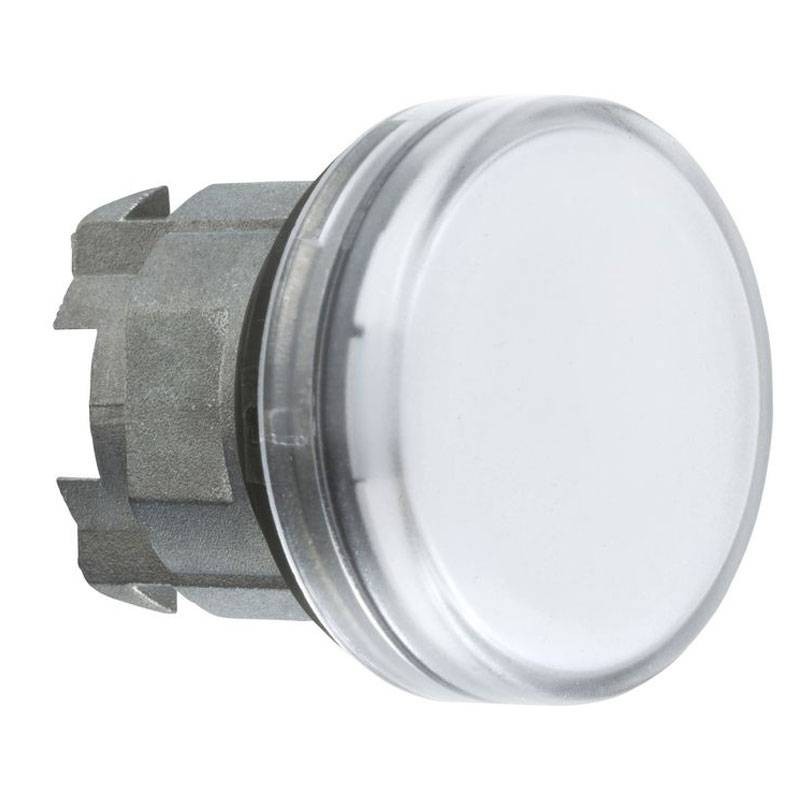

Telemecanique White LED Spy Lamp Head ZB4BV013
SNR ZB4BV013
3389110123234
Telemecanique Schneider ZB4 spy lamp head, with the following features:
- Head material: chrome-plated metal
- Mounting diameter 22 mm
- Head type: Standard
- Head shape: Circular
- White color
- Operator info: with smooth gem
- CAD total width 29 mm
- Total CAD height 29 mm
- Total CAD depth 30 mm
- Weight 0.026 kg
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
€4.09
Items Available: 368
: 36
Frequently bought together
Schneider Electric's Harmony XB4 smooth gem head for universal LED pilot light is white.
It has a round shape and a chrome-plated metal ferrule. This spy lamp head with universal LED is designed to last a long time without maintenance for a bright indication of machine and process operations. It is clearly visually distinguishable from a distance due to the vivid color of the lens, which allows complex machine states to be read immediately. With its IP66 rating, it is resistant to shock, water, dust and vibration, and is ideal for use in harsh environments.
Advantages:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Ideal for harsh environments, such as applications requiring high shock and vibration resistance
- Environmentally friendly product performance
Reference standards:
- EN/IEC 60947-5-4
- EN/IEC 60947-5-5
- EN/IEC 60947-5-1
- UL 508
- CSA C22.2 No 14
- EN/IEC 60947-1
- JIS C8201-5-1
- JIS C8201-1
Other Specifications:
- Electrical composition code: P1 in Direct front mounting on pushbutton with LED, P2 in Direct front mounting on pushbutton with integrated LED and transformer
- TH protection treatment
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- Overvoltage category: Class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529, IP67, IP69, IP69K
- NEMA degree of protection: NEMA 13 to NEMA 4X
- IK degree of protection: IK06 complying with IEC 50102
- Vibration resistance: 5 gn (F= 2...500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
Data sheet
- Type: Indicator heads
