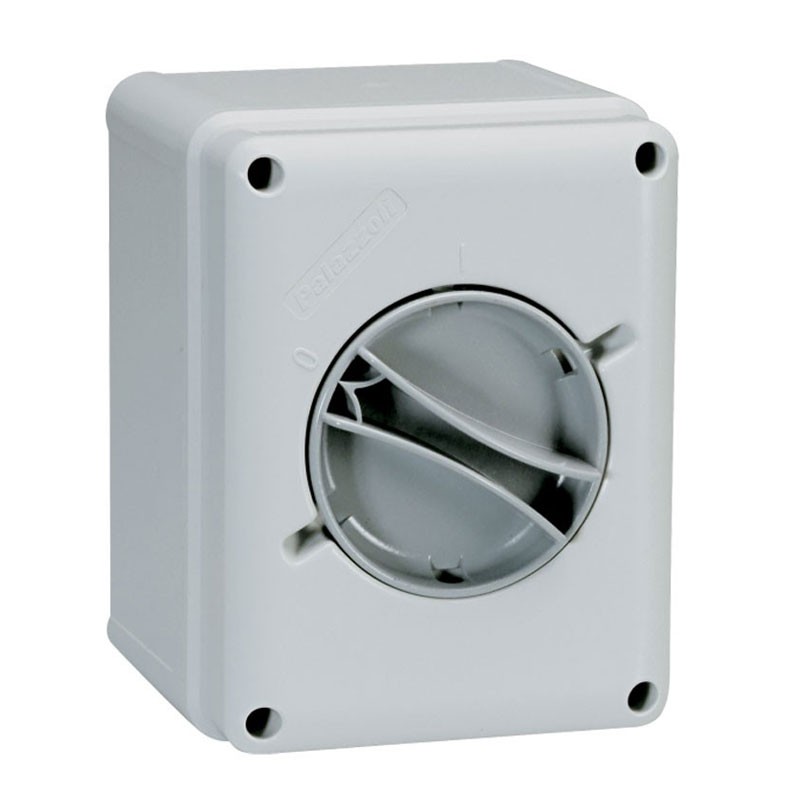

Palazzoli Wall-mounted Disconnector 4X63A IP65 209634

Palazzoli
Palazzoli
PAL 209634 8014950015092

Palazzoli rotary switch/disconnector, with the following characteristics:



  • Rated insulation voltage 690V
  • Rated voltage 690V
  • Rated impulse withstand voltage 4 kV
  • Rated current 63A
  • Frequency 50/60Hz
  • Degree of protection IP65
  • Poles 4P
  • Body material: thermoplastic
  • Width 158 mm
  • Design: wall-mounted
  • Insulation class II

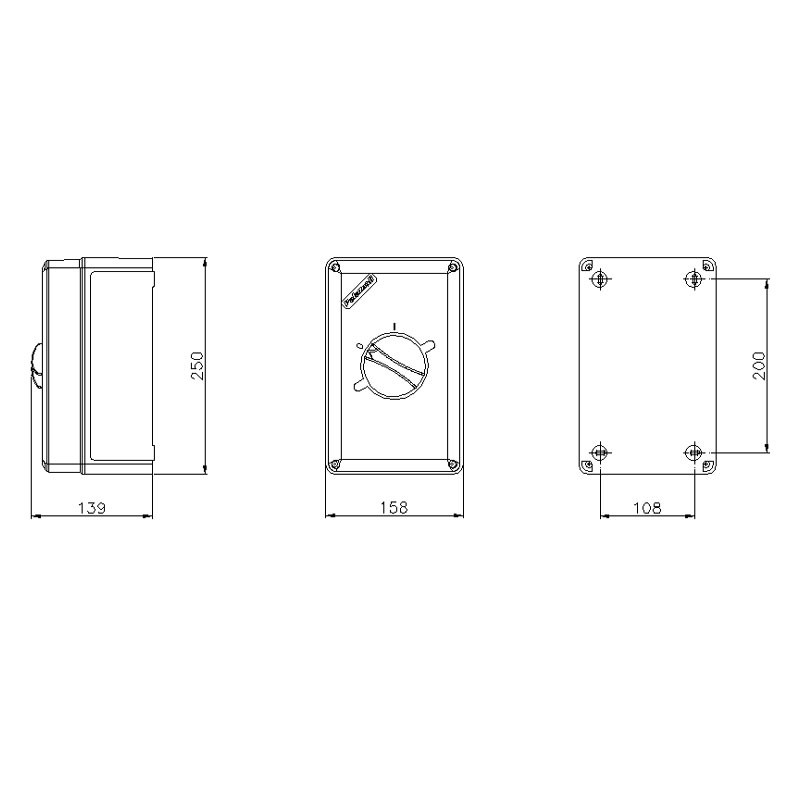

  • Dimensions 250X158X138 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Palazzoli Wall-mounted Disconnector 4X63A IP65 209634
€72.76
€72.76

€72.76
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€72.76

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • With black handle/grey tag in insulated box
  • CAM 3 scheme
  • Net weight: 1.16 kg
  • Color: gray RAL 7035
  • Ambient storage temperature: -40/+80°C
  • Minimum ambient temperature: -25/+60°C
  • Max conductor cross-section: 35mm2
  • Type of terminals: screw terminals: indirect clamping
  • Impact resistance: IK08 according to IEC/EN 62262

There are no reviews

Data sheet

Type:
Wall-mounted switch disconnectors
Voltage:
690V
Poles:
4P
Amps:
63A
