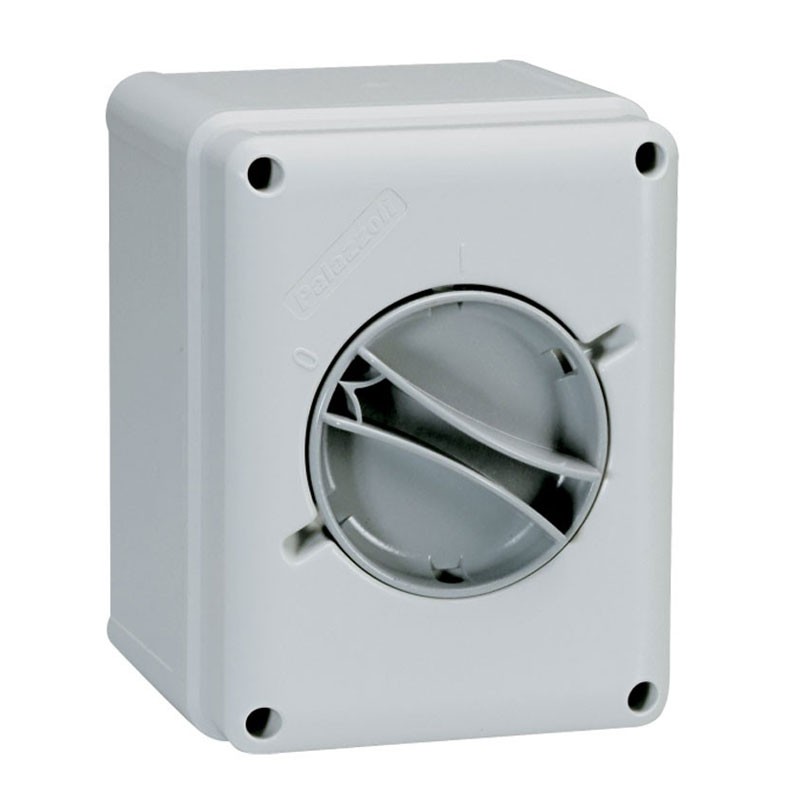

Palazzoli Wall-mounted Disconnector 3X16A IP65 209163
PAL 209163
8014950015023
Palazzoli rotary switch/disconnector, with the following characteristics:
- Rated insulation voltage 690V
- Rated voltage 690V
- Rated impulse withstand voltage 4 kV
- Rated current 16A
- Frequency 50/60Hz
- Degree of protection IP65
- 3P poles
- Body material: thermoplastic
- Width 121 mm
- Design: wall-mounted
- Insulation class II

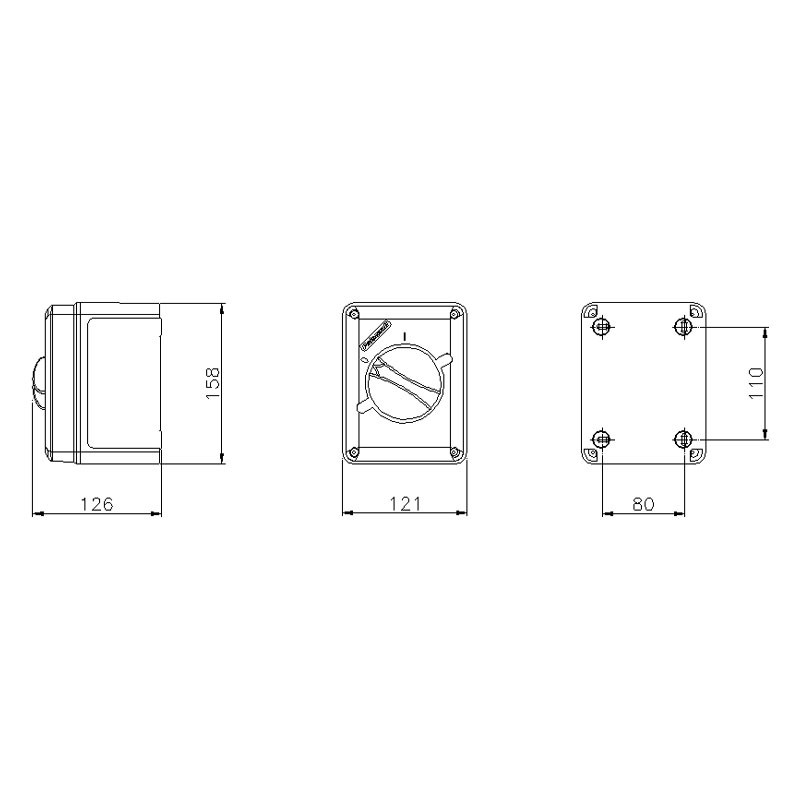

- Dimensions 158X121X126 mm
![](https://www.elettronew.com/59029-large_default/switch-disconnector-palazzoli-wall-3x16a-ip65-209163.jpg)
Palazzoli Wall-mounted Disconnector 3X16A IP65 209163
€33.23
€33.23
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 10
Other technical features:
- With black handle/grey tag in insulated box
- CAM pattern 1
- Net weight: 0.57 kg
- Color: gray RAL 7035
- Ambient storage temperature: -40/+80°C
- Minimum ambient temperature: -25/+60°C
- Max conductor cross-section: 10mm2
- Type of terminals: screw terminals: indirect clamping
- Impact resistance: IK08 according to IEC/EN 62262
Data sheet
- Type:
- Wall-mounted switch disconnectors
- Voltage:
- 690V
- Poles:
- 3P
- Amps:
- 16A
