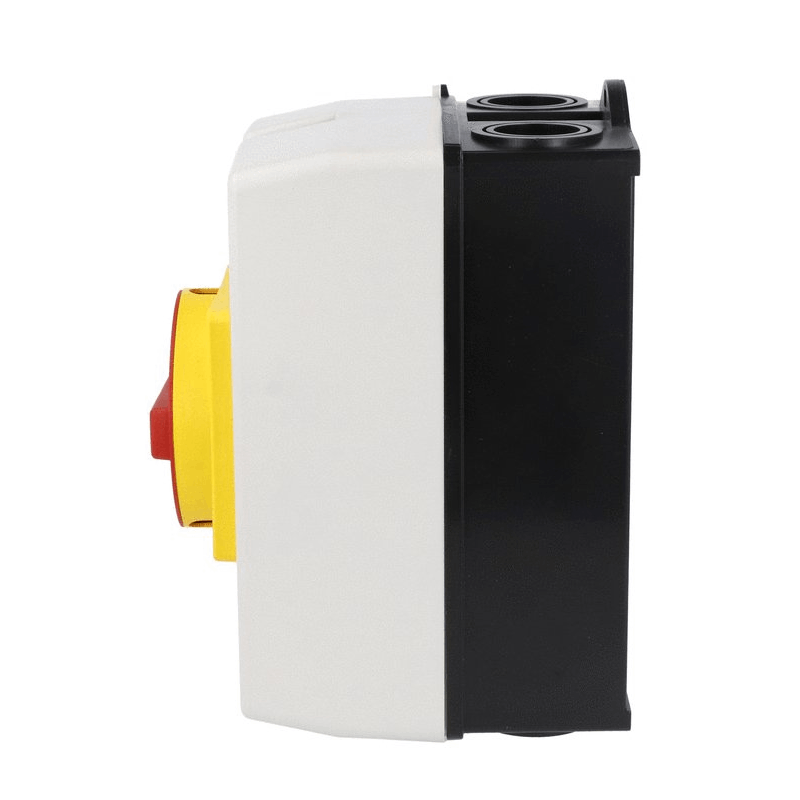

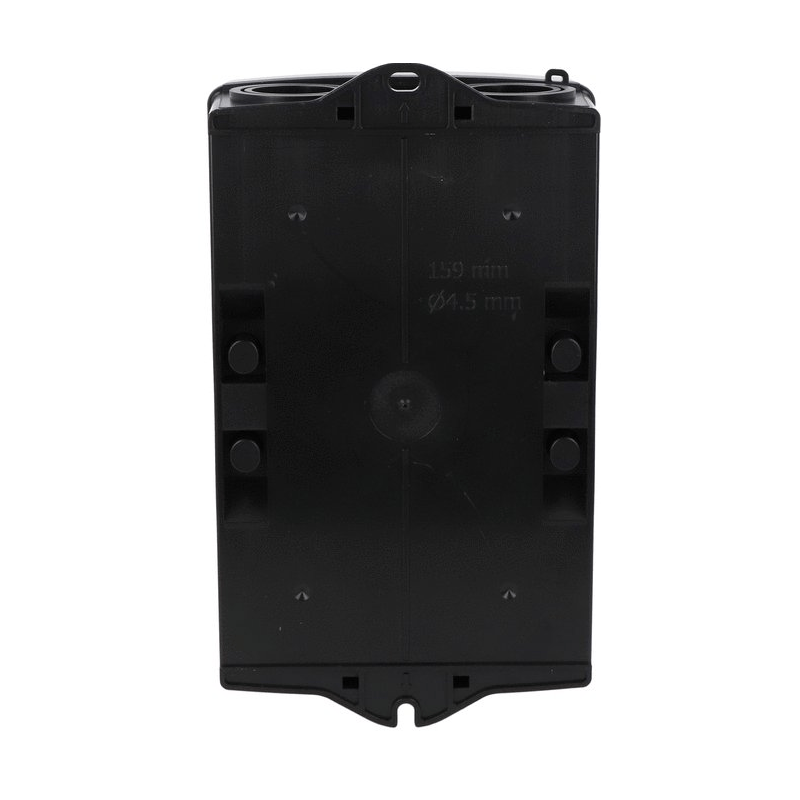

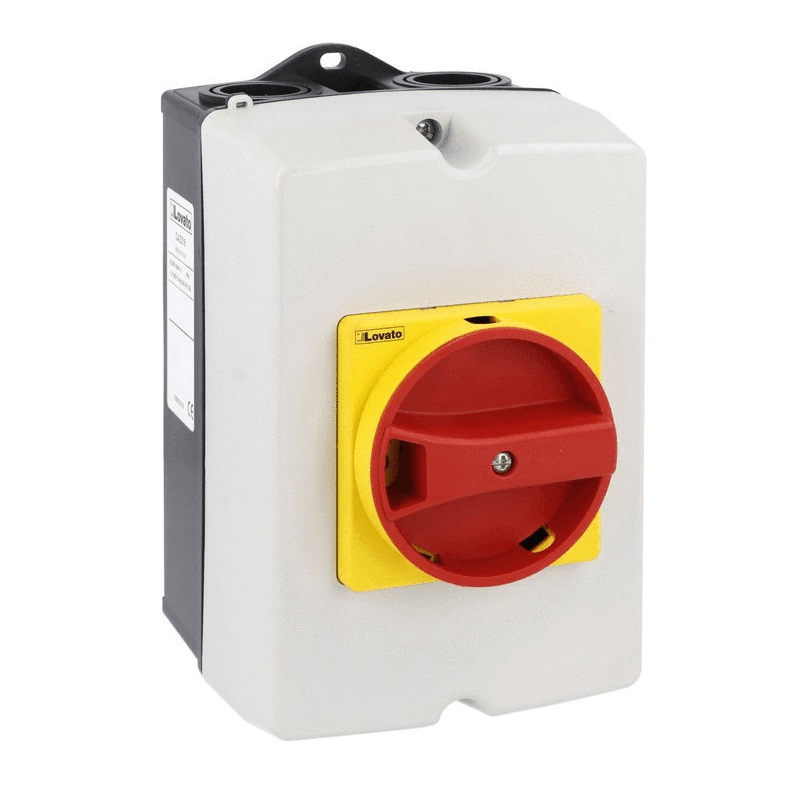

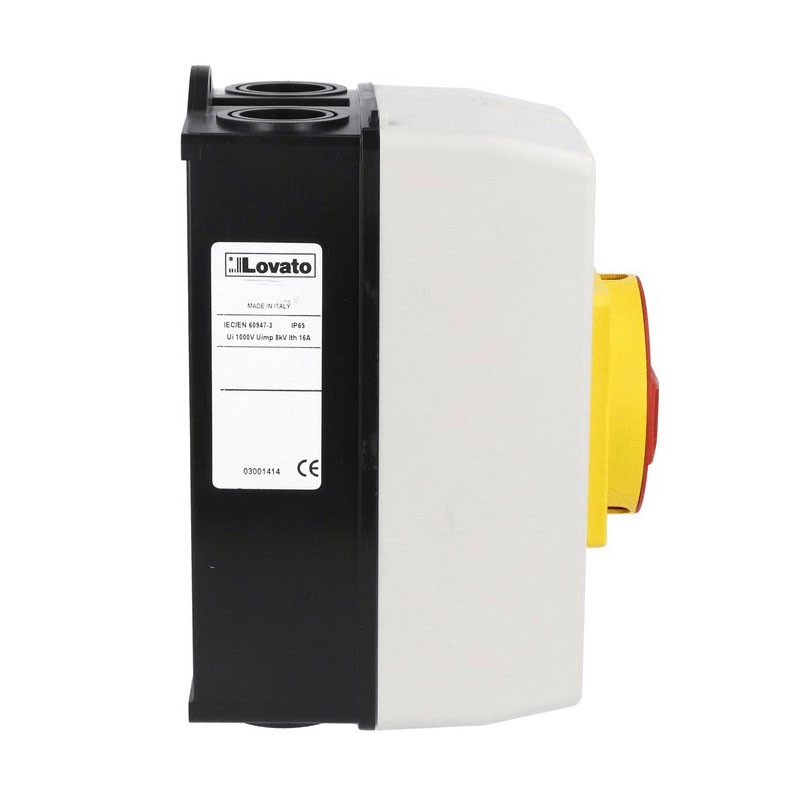

Lovato wall-mounted rotary disconnect switch 4X32A IP65 GAZ032T4
LOV GAZ032T4
8013975183786
Lovato wall-mounted rotary disconnect switch with the following characteristics:
- Type of operating voltage: alternating current
- IEC Conventional free air thermal current Ith: UN 32
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: Kv 8
- Power dissipation per pole max: 0.6W
- Conditional short-circuit current (rms): kA 10
- Number of poles: 4
- Short-circuit protection with fuse: Class A gG32
- Interrupting capacity AC23A 400V: UN 320
- Interrupting capacity AC23A 400V: UN 256
- In non-metallic housing type IEC/EN IP65, tetrapolar

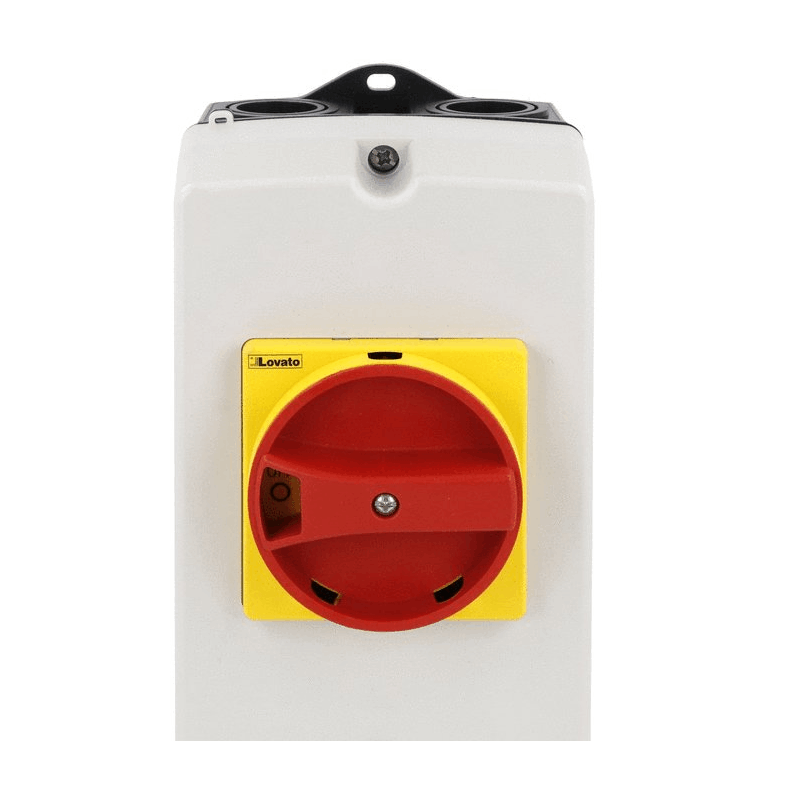

- With red/yellow swivel handle 32A
€53.96
Items Available: 5
: 1
Other technical features:
- Mechanical life cycles: 100000
- Electrical life AC21A: 100000 cycles
- Operating position: normal vertical plane, permissible any
- Operating temperature: min °C -25 - max °C +55
- Storage temperature: min °C -40 - max °C +70
- Maximum altitude: m 3000
- Frontal IP rating: IP65
- IP degree of protection: IP65
- Pollution degree: 3
Rated operating power AC23A:
- 400V kW 15
- 690V kW 22
Terminals:
- gender Pillar
- width mm 5.6
- height mm 6.5
- screw M4
- tool Phillips 2
Tightening torque for terminals:
- min Nm 1.8
- max Nm 2
- min Ibin 16
- max Ibin 18
Conductor cross-section:
- IEC min mm² 0.75
- IEC max mm² 16
- AWG/kcmil min 18
- AWG/kcmil max 6
There are no reviews
Data sheet
- Type: Wall-mounted switch disconnectors
- Voltage: 1000V
- Poles: 4P
- Degree of protection: IP65
- Amps: 32A
