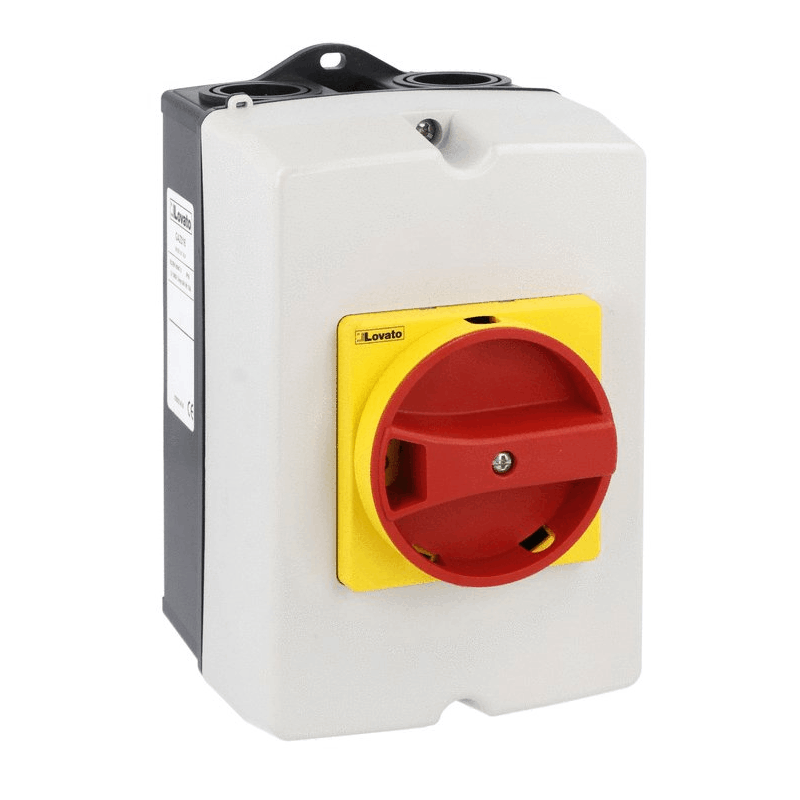

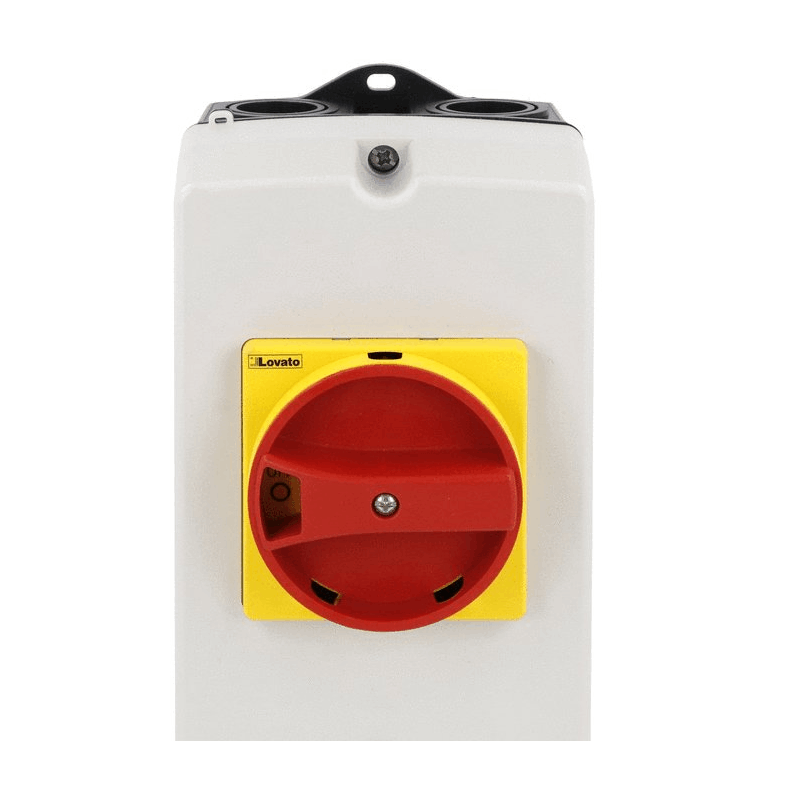

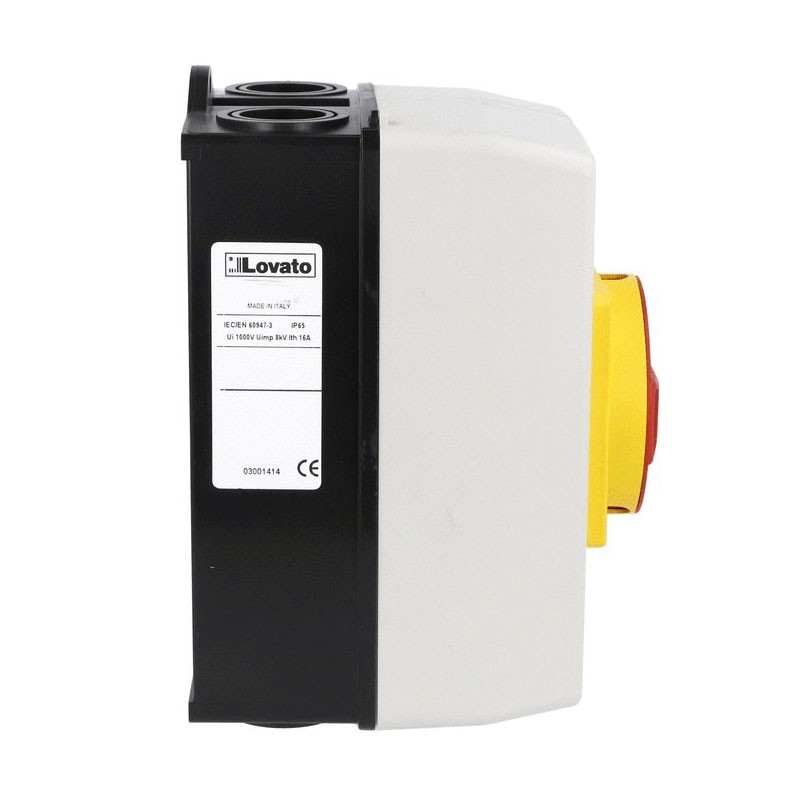

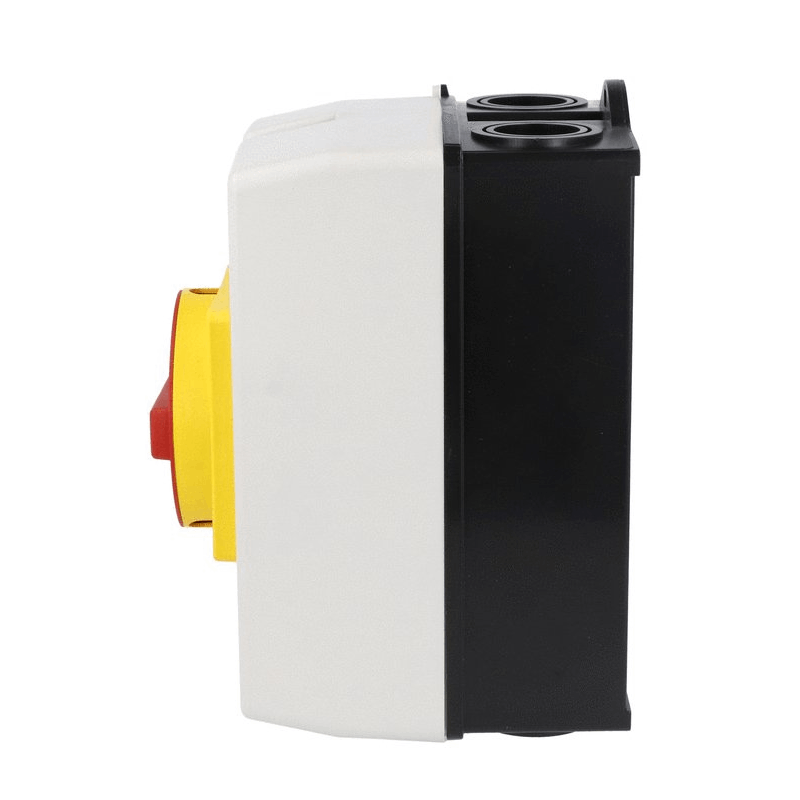

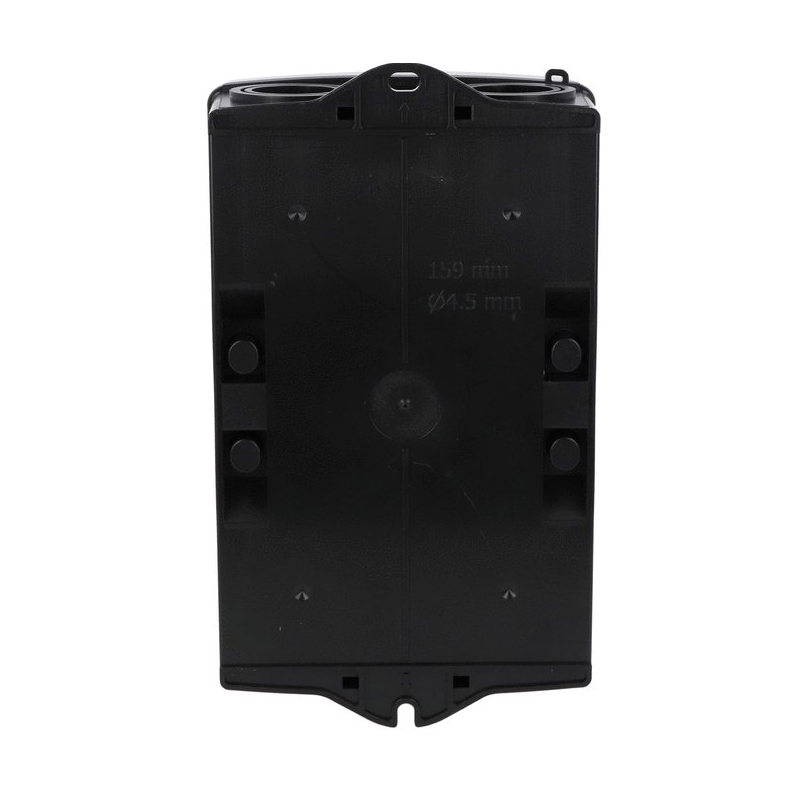

Lovato Wall Mounted Rotary Disconnect Switch 4X16A IP65 GAZ016T4

Lovato
Lovato
LOV GAZ016T4 8013975183779

Lovato GAZ TYPE GAZ rotary disconnect switch in IEC/EN IP65 type plastic insulating enclosure with the following features:

  • With yellow/red handle
  • Number of poles: 4
  • Type of operating voltage: AC
  • Conventional thermal free air current Ith IEC: 16 amps
  • IEC/EN rated insulation voltage: 1000V
  • Rated impulse withstand voltage (Uimp): Kv 8
  • Power dissipation per pole max: 0.2W
  • Conditional short-circuit current (rms) kA: 10
  • Protection against short circuit with fuses: Class/A gG16
  • Rated power AC23A: 400V kW 7.5 - 690V kW 11
  • Closing power AC23A 400V: 160A
  • Opening power AC23A 400V: 128A
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato Wall Mounted Rotary Disconnect Switch 4X16A IP65 GAZ016T4
€49.50
€49.50

€49.50
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€49.50

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Mechanical life: cycles 100000
  • Electrical life AC21A: 100000 cycles
  • Mounting position: Normal Vertical plane - Allowed Any
  • Operating temperature: -25/+55°C
  • Storage temperature: -40/+70°C
  • Maximum altitude: 3000m
  • Front IP rating: IP65
  • IP degree of protection: IP65
  • Pollution degree 3

There are no reviews

Data sheet

Type:
Wall-mounted switch disconnectors
Voltage:
1000V
Poles:
4P
Degree of protection:
IP65
Amps:
16A
