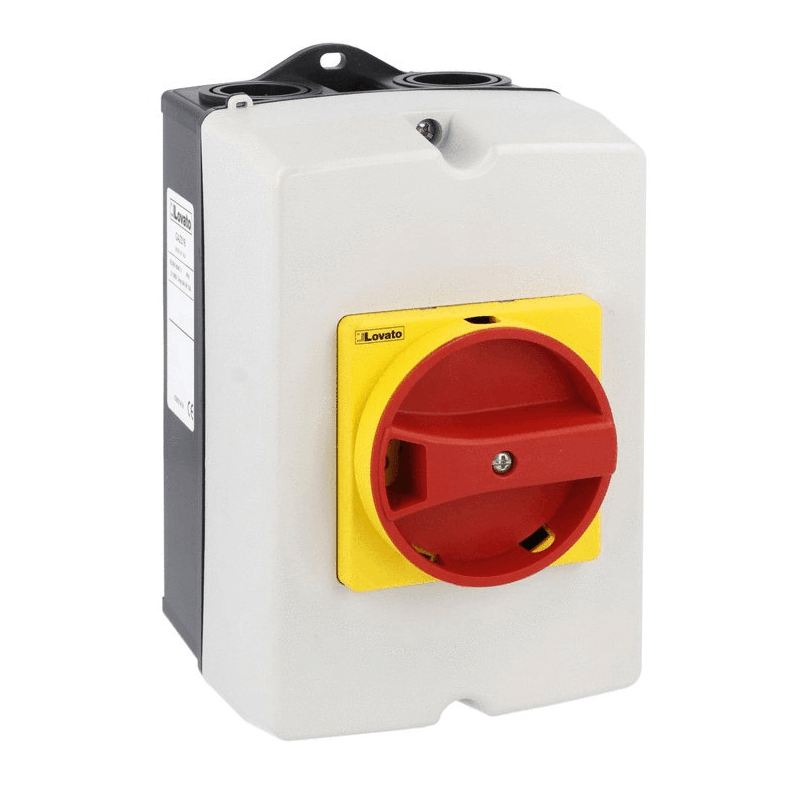

Lovato wall-mounted rotary disconnect switch 3X16A IP65 GAZ016
LOV GAZ016
8013975178287
Lovato wall-mounted rotary switch/disconnector with the following characteristics:
- Type of operating voltage: alternating current
- IEC Conventional free air thermal current Ith UN 16
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: kV 8
- Power dissipation per pole max: 0.2W
- Number of poles: 3
- Rated operating power AC23A: 400V kW 7.5, 690V kW 11
- Conditional short-circuit current (rms): kA 10
- Short-circuit protection with fuse Class A: gG16
€41.63
Items Available: 6
: 2
Other technical features:
- Lovato Series
- Interrupting capacity AC23A 400V: UN 160
- Interrupting capacity AC23A 400V: UN 128
- Mechanical life cycles 100000
- Electrical life AC21A :cycles 100000
- Operating position: normal vertical plane, permissible any
- Operating temperature: min °C -25 - max °C +55
- Storage temperature: min m°C -40, max °C +70
- Maximum altitude: m 3000
- Frontal IP rating: IP65
- IP degree of protection: IP65
- Pollution degree 3
Terminals:
- Gender: Pillar
- Width mm 5.6
- Height mm 6.5
- M4 screw
- Tool Phillips 2
Tightening torque for terminals:
- min Nm 1.8
- max Nm 2
- min Ibin 16
- max Ibin 18
Conductor cross-section:
- IEC min mm² 0.75
- IEC max mm² 16
- AWG/kcmil min 18
- AWG/kcmil max 6
There are no reviews
Data sheet
- Type: Wall-mounted switch disconnectors
- Voltage: 1000V
- Poles: 3P
- Degree of protection: IP65
- Amps: 16A
