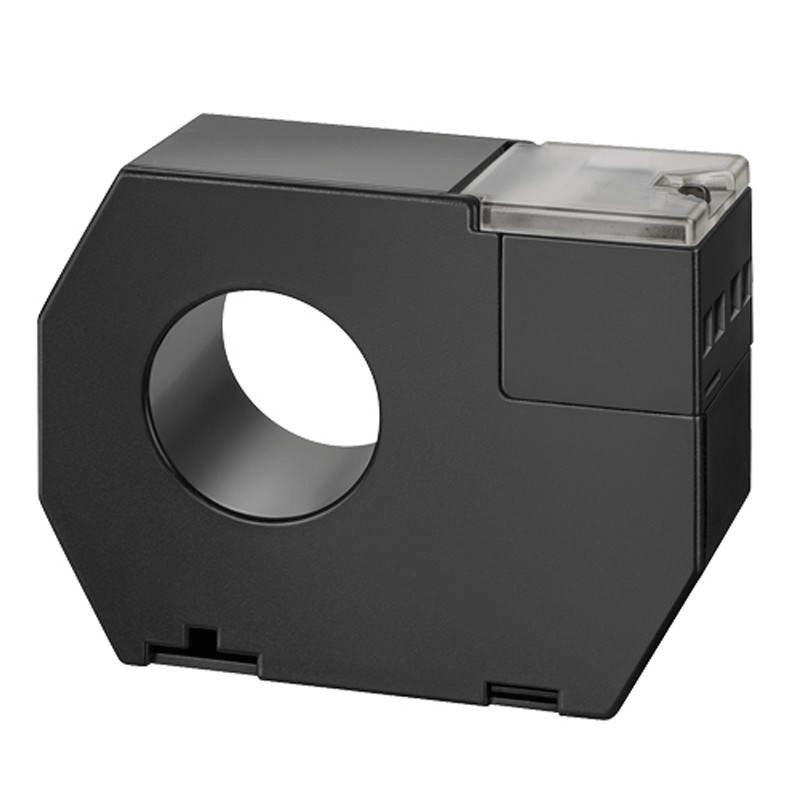

Siemens closed toroid transformer diameter 35mm 5SV87020KK
SIE 5SV87020KK
4001869397665
Siemens closed toroid current summing transformer with the following characteristics:
- Internal diameter 35 mm
- Rated operational current 80A
- Differential current (Idn)/min 30 mA
- Cable length max 10 mm
- Degree of protection with connection of all terminals IP20
- Voltage type of the operating voltage for the AC drive
- Rated impulse withstand voltage 4 kV
- Operating voltage max. nominal value 720 V
- Frequency of operation nominal value min 50 Hz - max 60 Hz
- Ambient temperature during operation min -10 °C - max 50 °C
€75.76
Items Available: 38
: 2
Features:
- Siemens series
- Internal diameter 35 mm
- Differential current (Idn)/min 30 mA
- Cable length max 10 mm
- Degree of protection with connection of all terminals IP20
- Type of operating voltage for the AC drive
- Rated impulse withstand voltage 4 kV
- Operating voltage max. nominal value 720 V
- Starting current limited to 2 s max 480 A
- Frequency of operation rated value min 50 Hz - max 60 Hz
- Operating current nominal value 80A
- Control supply voltage with AC 50 Hz nominal value max 720 V
- Supply voltage with AC at 60 Hz max. nominal value 720 V
- Suitable for use in AC networks
- Product function error saving No
- Electrical connection design screw connection
- Height 33 mm
- Width 100 mm
- Depth 79 mm
- Net weight 150 g
- Ambient temperature during operation min -10 °C - max 50 °C
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Degree of protection: IP20
- Amps: 80A
