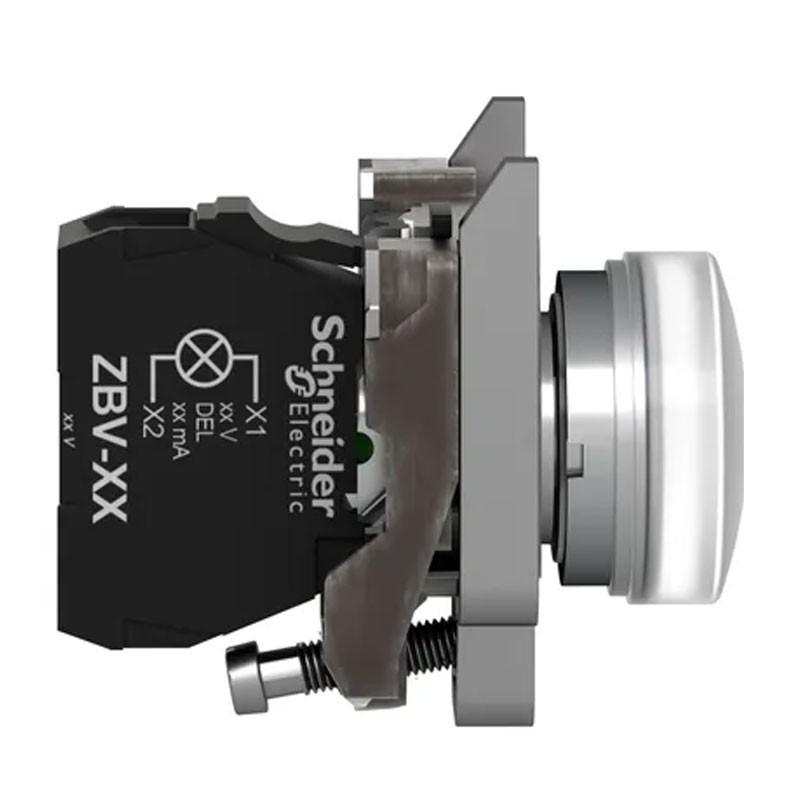

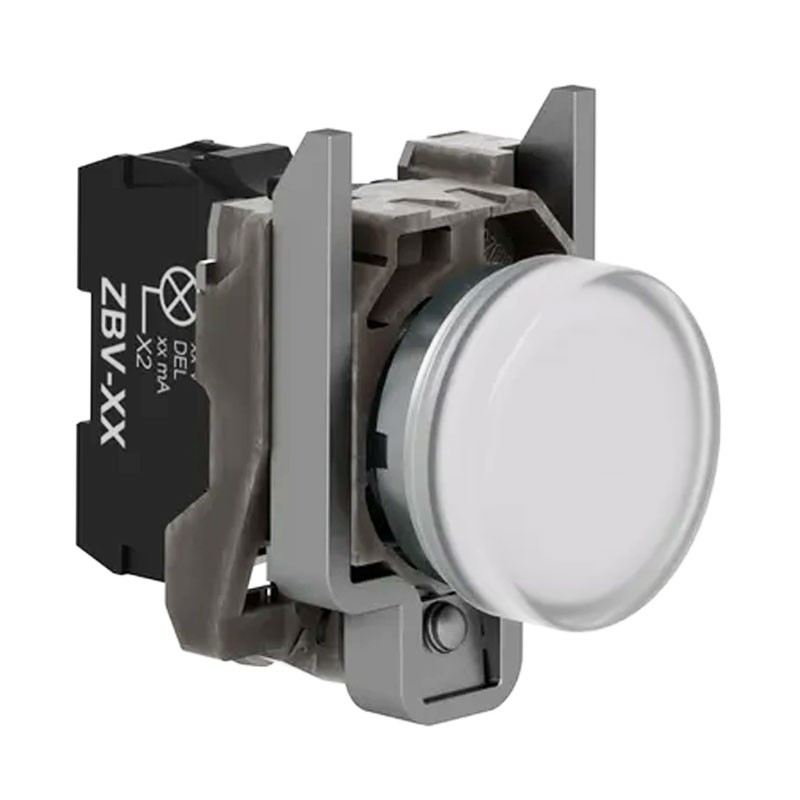

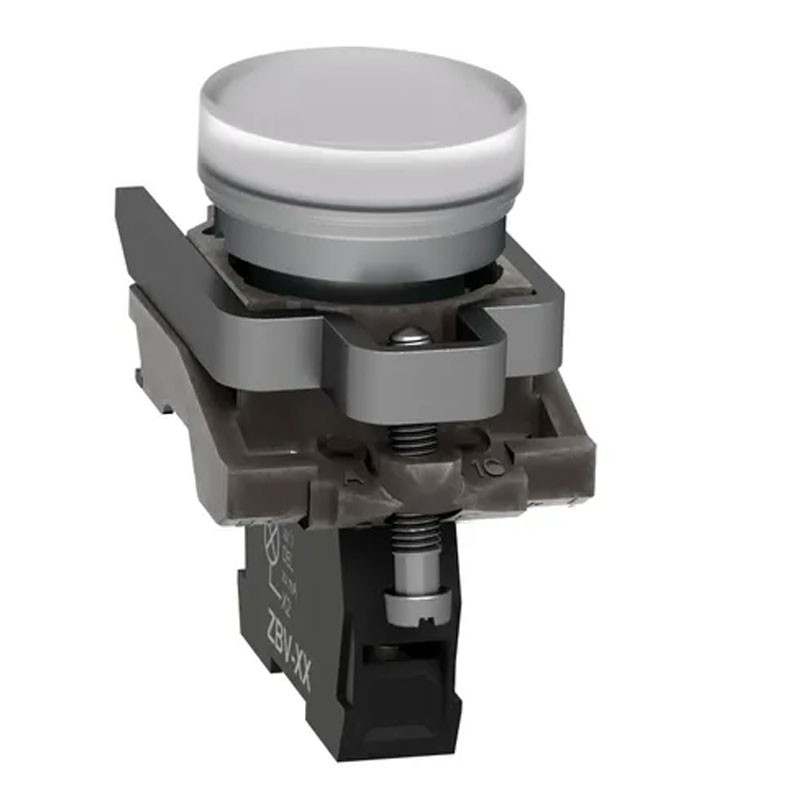

Schneider Electric's Harmony XB4 smooth gem white modular indicator lamp is powered by 24 V AC/DC and uses a universal LED and screw terminals.

It has a metal body. This indicator lamp, designed to last without maintenance for bright indication of process and machine operation, can be easily installed in a standard 22 mm diameter hole and connected with simple screw terminals. It is clearly visually distinguishable from a distance by bright long-lasting LED illumination. It is shock-resistant, vibration-resistant, dust-tight, and watertight with IP66, IP67, IP69, and IP69K ratings, making it ideal for use in harsh environments.

Advantages:

• Metal bezel
• Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
• Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
• High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
• Wide operating temperature range of -40°C to 70°C ensures versatility of product use
• Environmentally friendly product performance




Connections-clamps:

• Screw fastening terminals, <= 2 x 1.5 mm² with cable end complying with EN/IEC 60947-1
• Screw-fixing terminals, 1 x 0.22...2 x 2.5 mm² without cable end complies with EN/IEC 60947-1





Other Specifications:

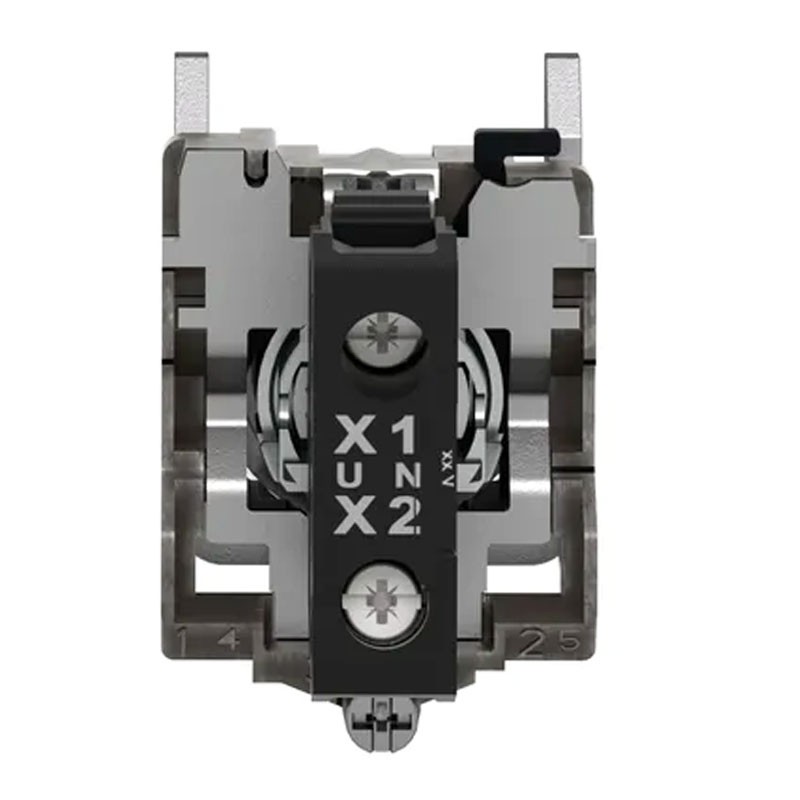

• Description ISO terminals No. 1 (X1-X2)PL
• Weight 0.08 kg
• Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
• Rated insulation voltage [Ui]: 250 V (pollution degree 3) in accordance with EN 60947-1
• Rated impulse withstand voltage [Uimp]: 4 kV complying with EN 60947-1
• Signaling type: Fixed
• Power consumption 18 mA
• Service life: 100000 H at rated voltage and 25 °C
• Overvoltage resistance:_ 1 kV complying with IEC 61000-4-5
• Supply voltage limits: 19.2...30 V DC, 21.6...26.4 V AC
• TH protection treatment.
• Storage temperature: -40...70 °C
• Ambient temperature: -40...70 °C
• Protection class against electrical discharge: Class I in accordance with IEC 60536
• IP degree of protection: IP66 complying with IEC 60529 - IP67 - IP69 -IP69K
• NEMA degree of protection: NEMA 13 - NEMA 4X
• Degree of protection IK IK06 in accordance with IEC 50102
• Vibration resistance: 5 gn (F= 12...500 Hz) complies with IEC 60068-2-6
• Resistance to fast transients: 2 kV complying with IEC 61000-4-4
• Resistance to electromagnetic fields: 10 V/m complying with IEC 61000-4-3
• Electrostatic discharge resistance: 6 kV on contact (on metal parts) complies with IEC 61000-4-2, 8 kV in free air (in insulating parts) complies with IEC 61000-4-2
• Electromagnetic emission: Class B in accordance with IEC 55011
