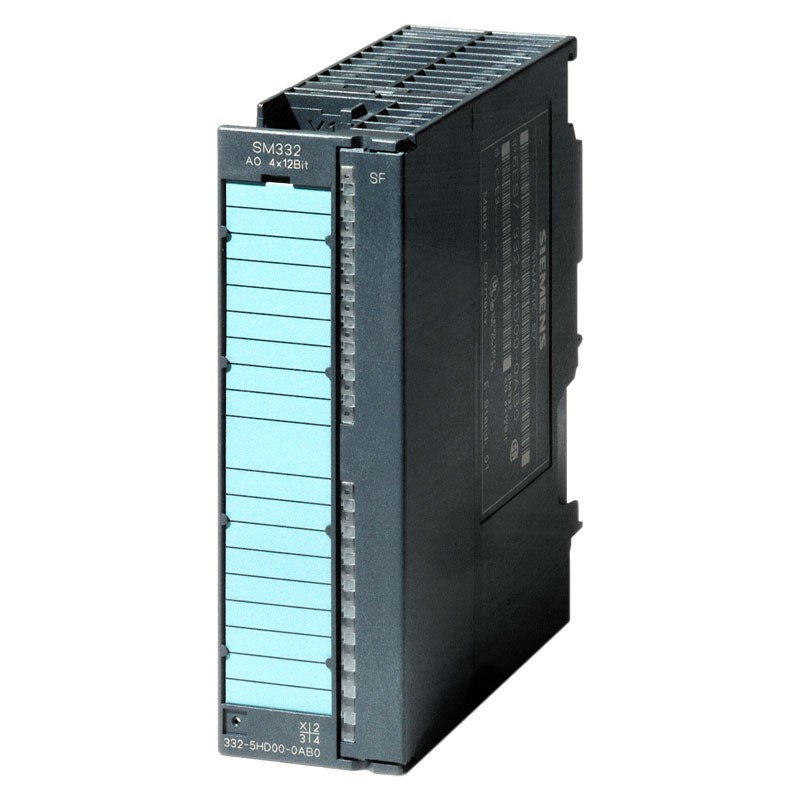

Siemens SIMATIC Analog Output Module S7-300 SM 332 4 AO U/I 6ES73325HD010AB0
SIE 6ES73325HD010AB0
4025515061298
Siemens SIMATIC S7-300 SM 332 analog output module 6ES73325HD010AB0 with the following characteristics:
- Nominal value: 24V DC
- Number of analog outputs: 4 with 11/12 bit accuracy
- Power dissipation: 3W
- Voltage output, short-circuit current: Max. 25 mA
- Cable length with shielding: Max. 200 m
- Dimensions: 40x128x117 mm (W-H-P) with 20-pin front connector
€1,473.66
Items Available: 2
Siemens S7-300 SM 332 Analog Output Module: Precision and Reliability for Industrial Control
The Siemens SIMATIC S7-300 SM 332 Analog Output Module 11/12 bit 4 AO U/I 6ES73325HD010AB0 is designed to offer maximum accuracy and reliability in industrial control applications. With 4 analog outputs, this module provides the ability to handle voltage and current output signals, making it ideal for various types of automation applications. The 24 V DC rating and power dissipation of only 3 W ensure efficient operation and low power consumption. With 11/12 bit resolution, the module can accurately handle signal conversion, ensuring accurate control in industrial processes.
Efficiency and Safety of the Siemens SM 332 Module
The Siemens SM 332 module is designed to ensure maximum safety and reliability in daily operations. Each analog output has a maximum short-circuit current of 25 mA, ensuring adequate protection against overloads and short circuits. In addition, the module offers a maximum no-load operating voltage of 18 V for current outputs, ensuring that the system operates smoothly under different operating conditions. The conversion time of 0.8 ms per channel ensures fast response, which is essential for processes that require precise and fast regulation. Insulation tested with DC 500 V provides additional protection against short circuits and compatibility with industrial plant requirements.
Specifications and Installation of the Siemens SIMATIC S7-300 SM 332 Module
The Siemens SM 332 Analog Output Module offers great installation flexibility due to its compact size (40 mm wide, 125 mm high and 117 mm deep) and 20-pin front connector, which facilitates its integration into the control cabinet. The maximum cable length supported is 200 meters with shielding, allowing installation in complex environments without compromising signal quality. The module is capable of operating with different types of loads, adapting to different control needs. Thanks to its high build quality and safety features, the Siemens SM 332 module is an ideal choice for those who wish to integrate analog outputs into their industrial automation systems, ensuring reliability and accuracy.
There are no reviews
Data sheet
- Type: Analog Output Modules
- Voltage: 24V
