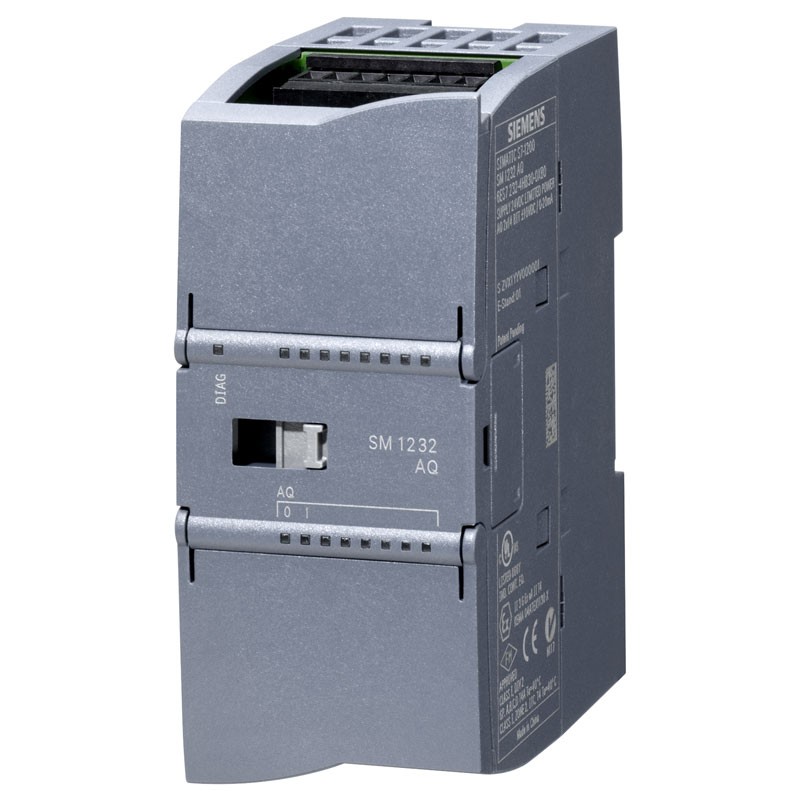

Siemens Simatic S7-1200 SM 1232 Analog Output Module 6ES72324HB320XB0
SIE 6ES72324HB320XB0
6940408102057
Siemens Simatic S7-1200 SM 1232 analog output module, 2 AO, +/-10V, 14-bit resolution, or 0-20mA/4-20mA, 13-bit resolution.
€311.13
Items Available: 14
: 3
Features:
- Product type designation SM 1232, AQ 2x 14 bit
- Supply voltage Nominal value (DC) 24 V
- Input current Current consumption, typ. 45 mA from the backplane bus DC 5 V, typ. 80 mA
- Power loss, typ. 1,5 W
- Number of analog outputs 2; current or voltage
- Output ranges, voltage -10 V ... +10 V
- Output ranges, current 0 ... 20 mA
- Load resistance (in the nominal range of the output) for voltage outputs, min. 1,000 ? - for current outputs, max. 600 ?
- Cable length with shielding, max. 100 m; shielded, double stranded cable
- Integration and conversion time/resolution per channel Resolution with override range (bits incl. sign), max. 14 bits; voltage: 14 bits, current: 13 bits
- Protection class IP 20
- Dimensions Width 45 mm - Height 100 mm - Depth 75 mm
- Weight 180g
- Housing material (on the front side) Plastic
- Front connector required
There are no reviews
Data sheet
- Type: Analog Output Modules
- Voltage: 24V
