Siemens analog output module S7-1200 SM1232 6ES72324HD320XB0


SIE 6ES72324HD320XB0 6940408102064

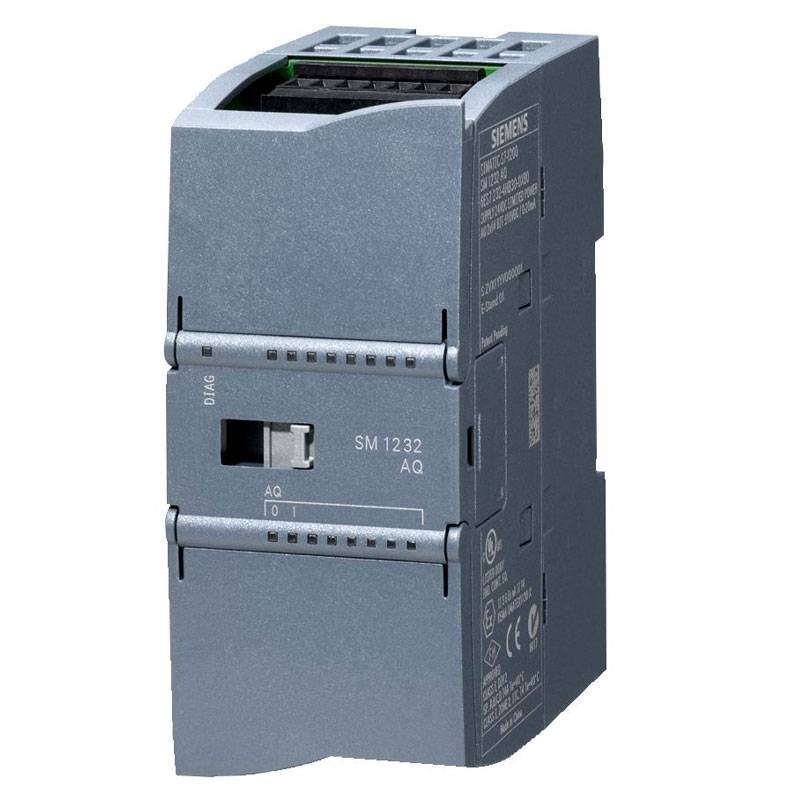

Siemens SIMATIC S7-1200 - SM 1232 analog output module, AQ 4x 14 bits, with the following characteristics



  • Supply voltage Rated value (DC): 24V
  • Common mode voltage: max 12V
  • Current consumption, tip 45 mA - from backplane bus DC 5 V, tip 80 mA
  • Power dissipation, typ 1.5W
  • Number of analog outputs: 4 current or voltage
  • Voltage output ranges: -10V...+10V: yes
  • Current output ranges: 0 ... 20 mA: yes
  • Load resistance (in rated output range): for voltage outputs, min. 1 000 Ω, for current outputs, max. 600 Ω
Request info about this product

Siemens analog output module S7-1200 SM1232 6ES72324HD320XB0

€499.69
€499.69

Siemens analog output module S7-1200 SM1232 6ES72324HD320XB0

€499.69
Tax included
klarna Pay in installments with Klarna
qty

Siemens analog output module S7-1200 SM1232 6ES72324HD320XB0

€499.69

Buy it within and receive it from Wednesday, 10 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Cable length: with shielding, max. 100 m; Shielded, double twisted cable
  • Integration and conversion time/resolution per channel: Resolution with override range (bits including sign), max. 14 bits; voltage: 14 bits, current: 13 bits
  • Errors/accuracy Temperature error (referred to output range), (+/-): 25 °C ±0.3 %, ... 55 °C ±0.6 % entire measuring range
  • IP20 degree of protection
  • Free fall: Drop height, max. 0.3 m; five times, in shipping package
  • Relative humidity: Operating at 25 °C without condensation, max. 95 %.
  • Pollutant concentrations: SO2 with RH < 60% without condensation S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% without condensation
  • Housing material (on the front side): plastic
  • Connection technique/header Front connector required Yes
  • Alarms Yes
  • Diagnostic function Yes
  • Diagnostic alarm Yes
  • Supply voltage surveillance Yes
  • Conductor breakage Yes
  • Ambient temperature for storage/transportation: -40/+70°C
  • Short circuit Yes
  • Diagnostic display LEDs: for output status Yes - for maintenance Yes
  • Dimensions: Width 45 mm, Height 100 mm, Depth 75 mm
  • Weight: 180 grams approx.






Standards, approvals, certificates:

  • CE Mark Yes
  • CSA Approval Yes
  • UL approval Yes
  • cULus Yes
  • FM approval Yes
  • RCM (formerly C-TICK) Yes
  • KC Homologation Yes
  • Marine homologation Yes





Ambient temperature in operation:

  • min. -20 °C - max. 60 °C
  • Horizontal mounting position, min. -20 °C
  • Horizontal mounting position, max. 60 °C
  • Vertical mounting position, min. -20 °C
  • Vertical mounting position, max. 50 °C





Atmospheric pressure according to IEC 60068-2-13:

  • Operating, min. 795 hPa
  • Operating, max. 1 080 hPa
  • Storage/transport, min. 660 hPa
  • Storage/transportation, max. 1 080 hPa

Data sheet

Type:
Analog Output Modules
