Siemens Simatic Analog Output Module Standard ET 200SP AQ 4XU/I 6ES71356HD000BA1
SIE 6ES71356HD000BA1
4025515080756
Siemens Simatic ET 200SP 6ES71356HD000BA1 analog output module with the following features:
- Number of analog outputs: 4 configurable in voltage or current
- Nominal value: 24V DC
- Current consumption: 150 mA
- Resolution: 16 bits
- Power dissipation: 1.5W
- Compatible with: BU type A0, A1

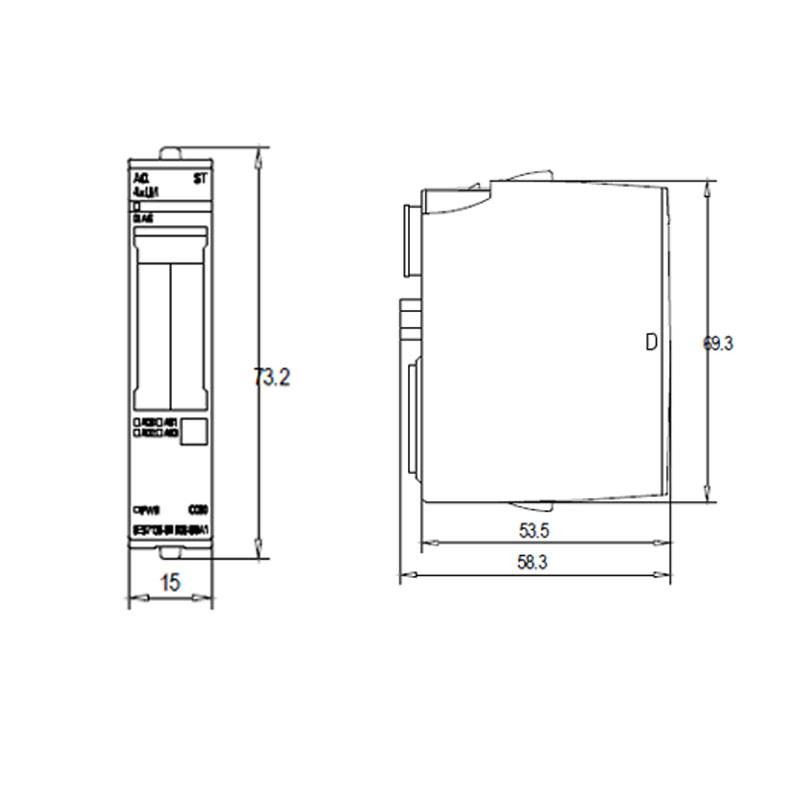

- Dimensions: 15x73x58 (W-H-P)
The module has built-in diagnostics, allowing constant monitoring of signal and operating conditions.
€263.78
Items Available: 4
The SIMATIC ET 200SP AQ 4XU/I Standard module is designed to provide up to 4 configurable analog outputs for voltage or current.
It offers +/-0.3% accuracy and 16-bit resolution, ensuring highly accurate control of the outputs.
It is compatible with A0 and A1 type base units and is color-coded CC00 for quick identification. The module has built-in diagnostics, allowing constant monitoring of signal and operating conditions.
Features:
- Analog outputs: 4, configurable in voltage or current
- Resolution: 16 bits
- Accuracy: +/- 0.3%
- Compatible with: BU type A0 and A1
- Diagnostic module: Output monitoring
- Rated value: 24 V DC
- Allowable range, lower limit (DC) 19.2 V
- Allowable range, upper limit (DC) 28.8 V
- Current consumption, max. 150 mA
- Power dissipation, typ. 1,5 W
- Voltage output, short-circuit current, max. 45 mA
- Cable length: with shielding, max. 1 000 m; 200 m for voltage output
- Width 15 mm
- Height 73 mm
- Depth 58 mm
There are no reviews
Data sheet
- Type: Analog Output Modules
- Voltage: 24V
