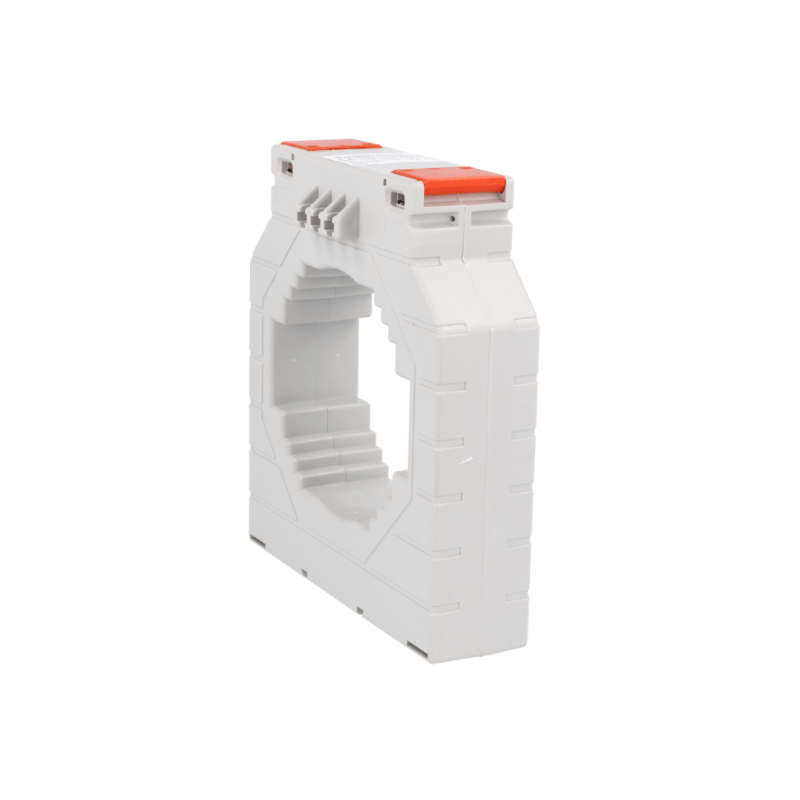

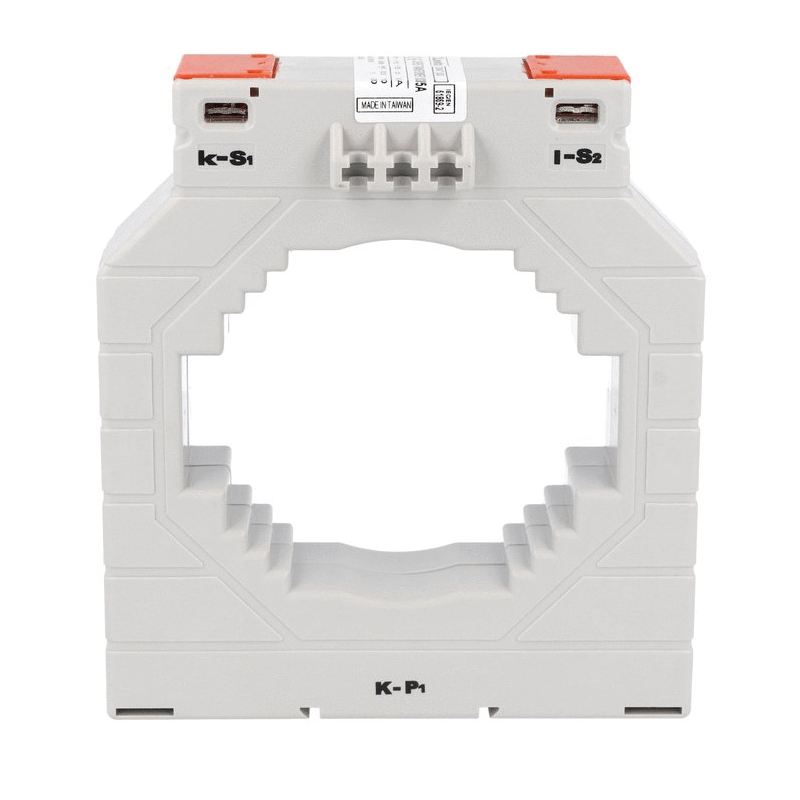

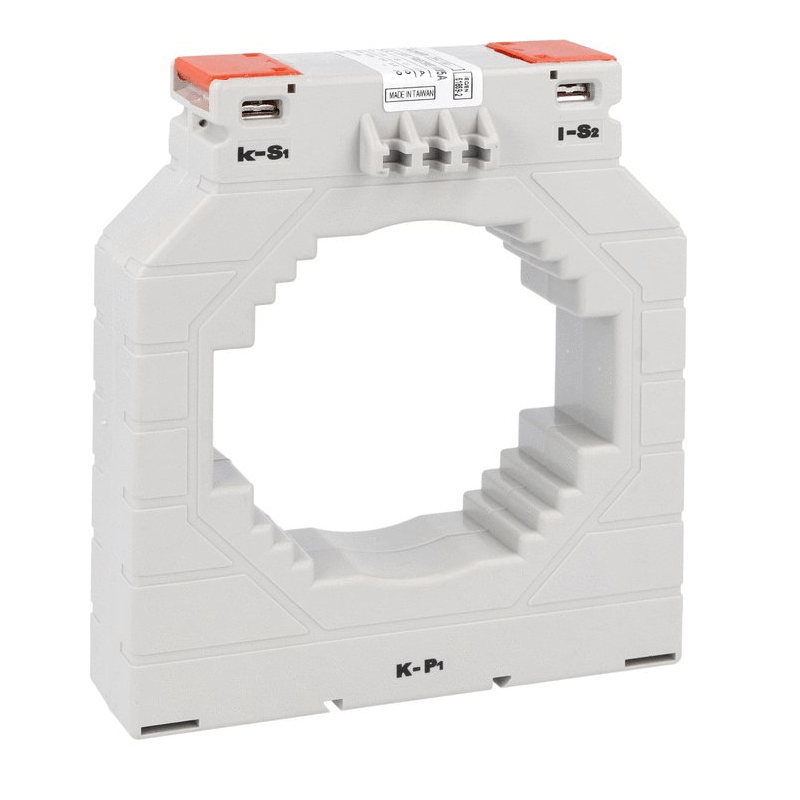

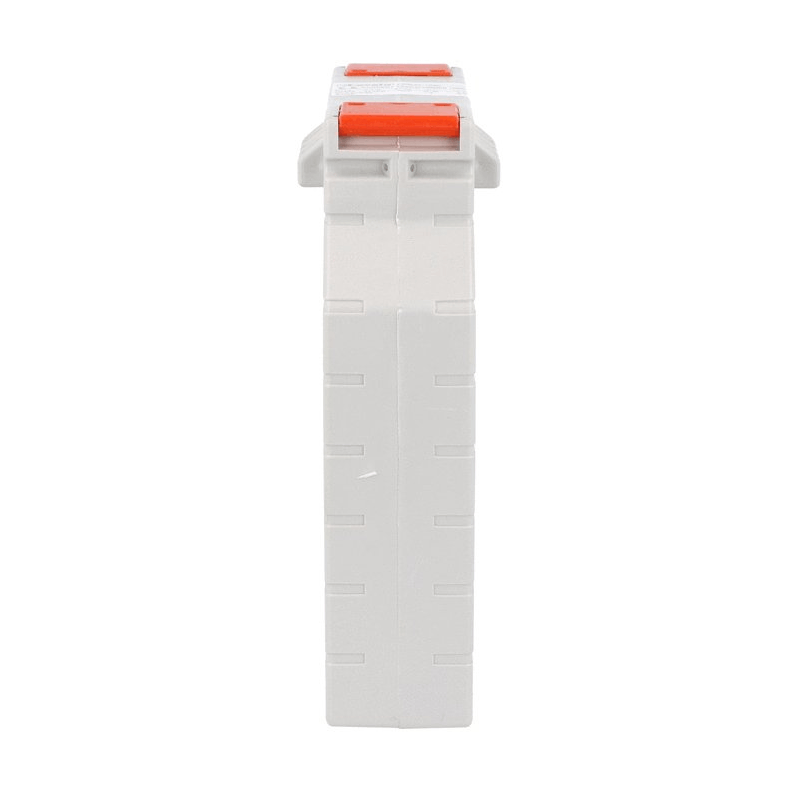

Lovato transformer 1000/5A for cable 86mm DM4T1000


LOV DM4T1000 8013975207741

Lovato toroidal current transformer, with the following features:

  • 86 mm through cable
  • Diameter 86 mm
  • Frequency of use min 50 Hz - max 60 Hz
  • Primary current Ipn 1000A
  • Secondary current 5A
  • Rated insulation voltage IEC/EN 720V
  • Screw type connections
  • DIN rail or screw fixing
  • Product weight 700gr
  • Degree of protection IP30
Request info about this product

Lovato transformer 1000/5A for cable 86mm DM4T1000

€91.36
€91.36

Lovato transformer 1000/5A for cable 86mm DM4T1000

€91.36
Tax included
klarna Pay in installments with Klarna
qty

Lovato transformer 1000/5A for cable 86mm DM4T1000

€91.36

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Lovato Series
  • Through cable 86 mm
  • Diameter 86 mm
  • Frequency of use min 50 Hz - max 60 Hz
  • Primary current Ipn 1000A
  • Secondary current 5A
  • Permanent overcurrent Ipn 120
  • Performance Cl 0.5 10 VA - Cl 1 20 VA
  • Rated insulation voltage IEC/EN 720V
  • Rated short-time thermal current Ith for s 40...60
  • Rated dynamic current Idyn Ith for s 2.5
  • Insulation in air class E
  • Screw type connections
  • DIN rail or screw fixing
  • Product weight 700gr
  • Operating temperature min -25°C - max +50°C
  • Storage temperature min -40°C - max +80°C
  • Relative humidity 90%
  • Degree of protection IP30

Data sheet

Diameter:
86mm
Type:
Toroidal Transformers
Cross-Section:
86mm
Amps:
1000A
