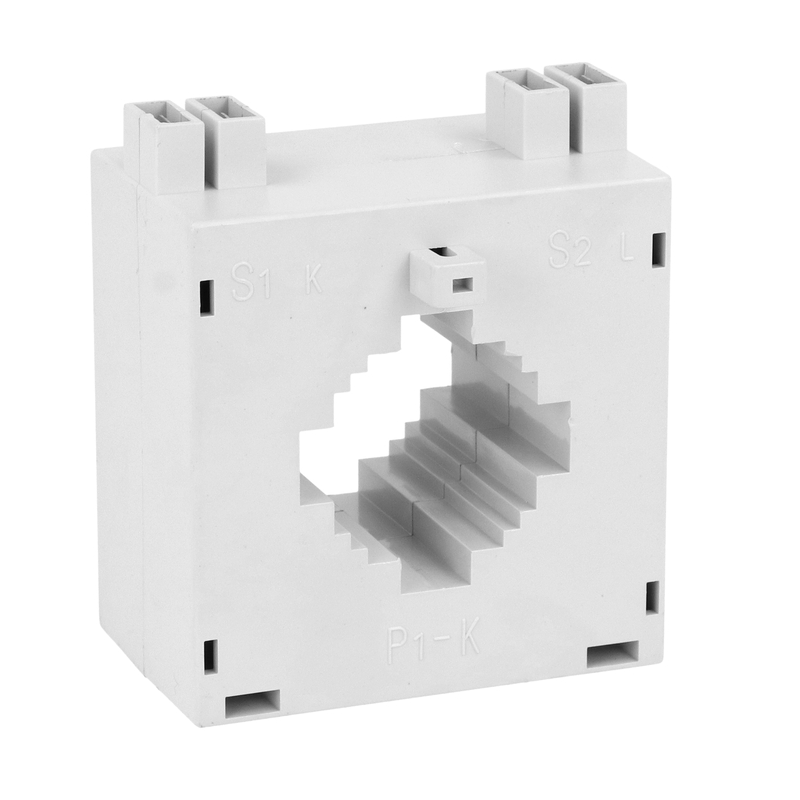

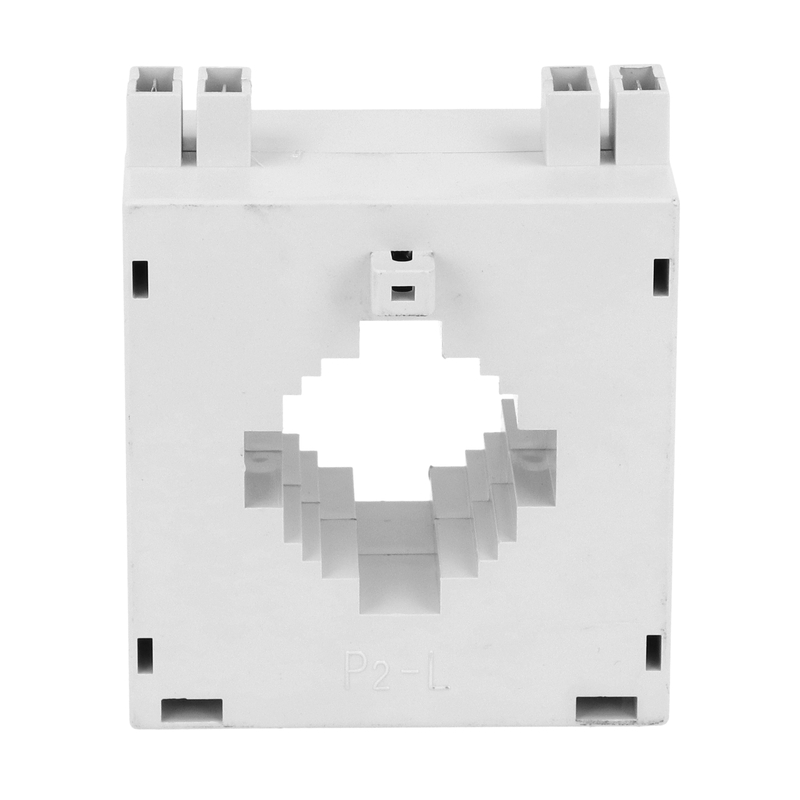

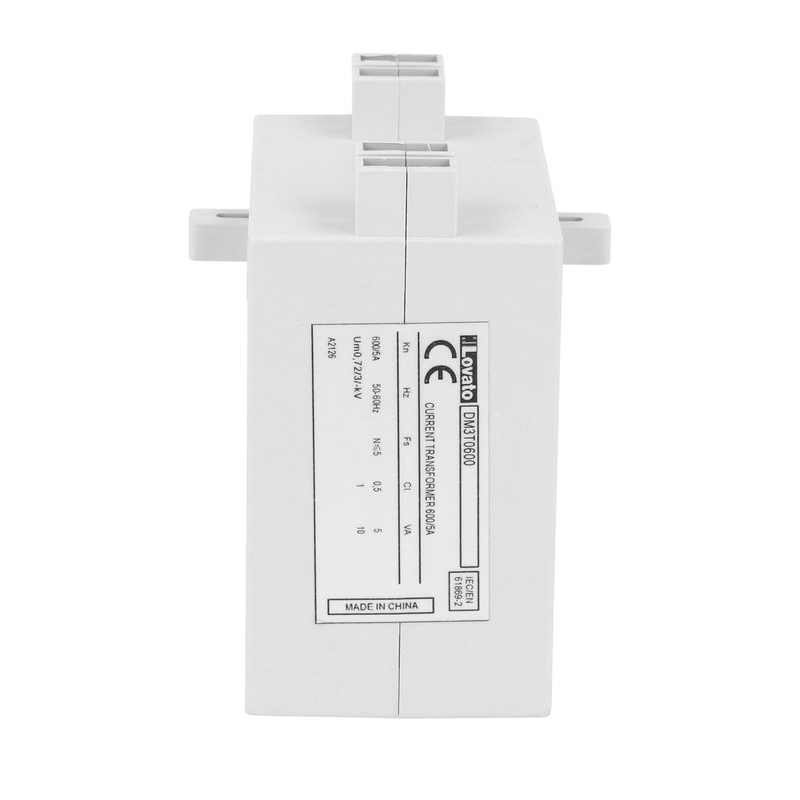

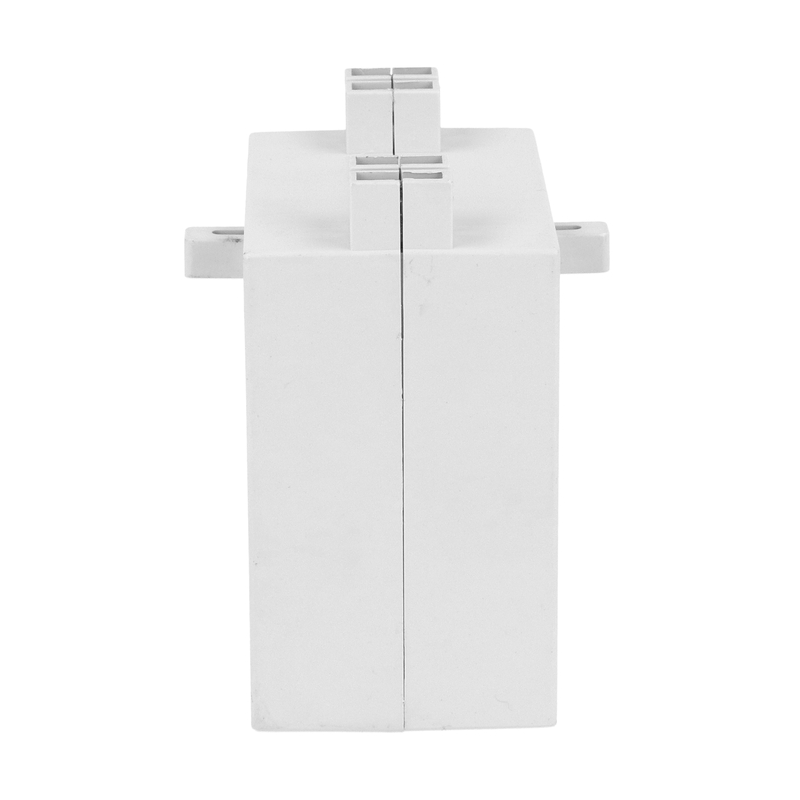

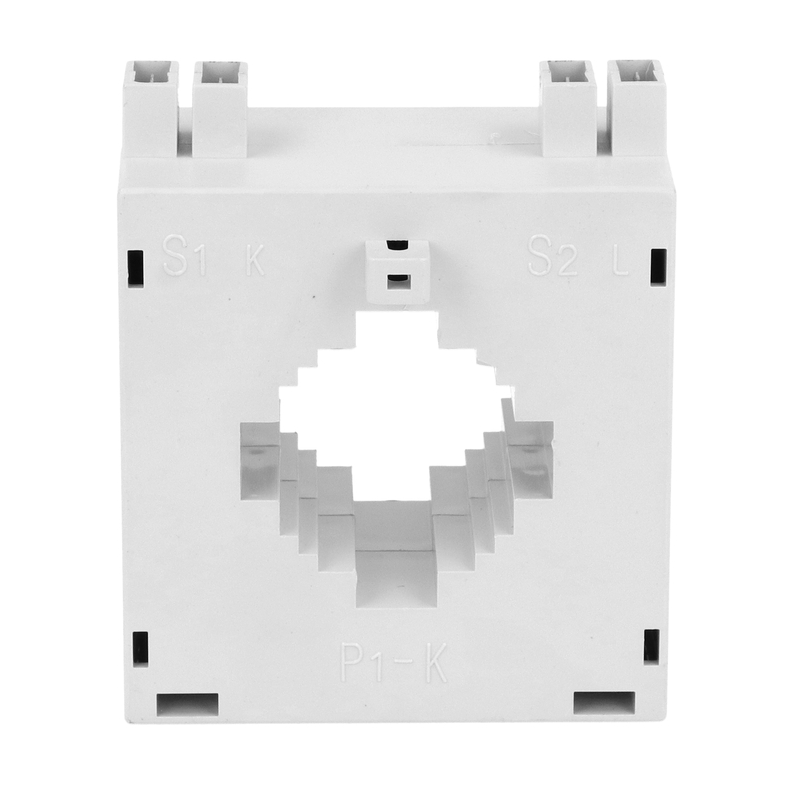

Lovato toroidal current transformer through cable 30mm 600A DM3T0600
LOV DM3T0600
8013975121894
Lovato toroidal current transformer, with the following features:
- 30 mm through cable
- 30 mm diameter
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 600A
- Secondary current 5A
- Rated insulation voltage IEC/EN 720V
- Faston type connections
- DIN rail or screw fixing
- Product weight 260gr
- Degree of protection IP30
€29.54
Items Available: 7
: 2
Features:
- Lovato Series
- Through cable 30 mm
- 30 mm diameter
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 600A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance Cl 0.5 5 VA - Cl 1 10 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Faston connections
- DIN rail or screw fixing
- Product weight 260gr
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Degree of protection: IP30
- Amps: 600A
