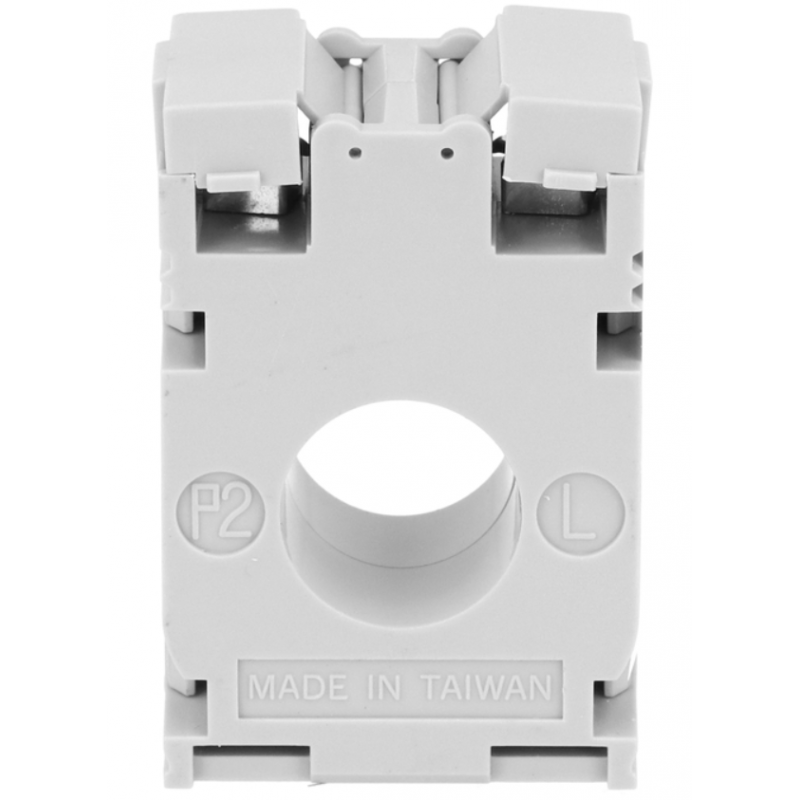

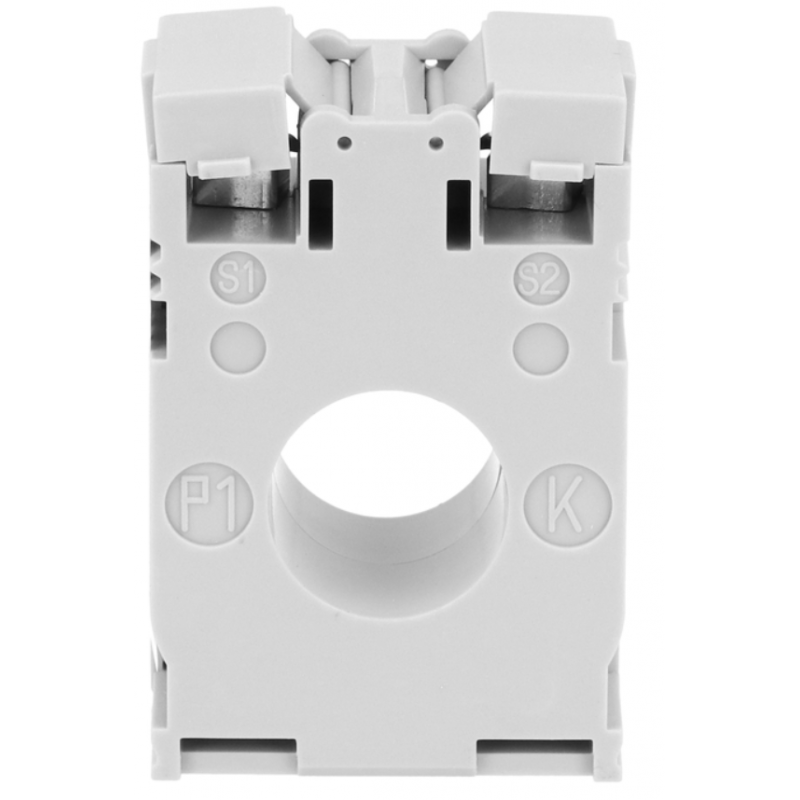

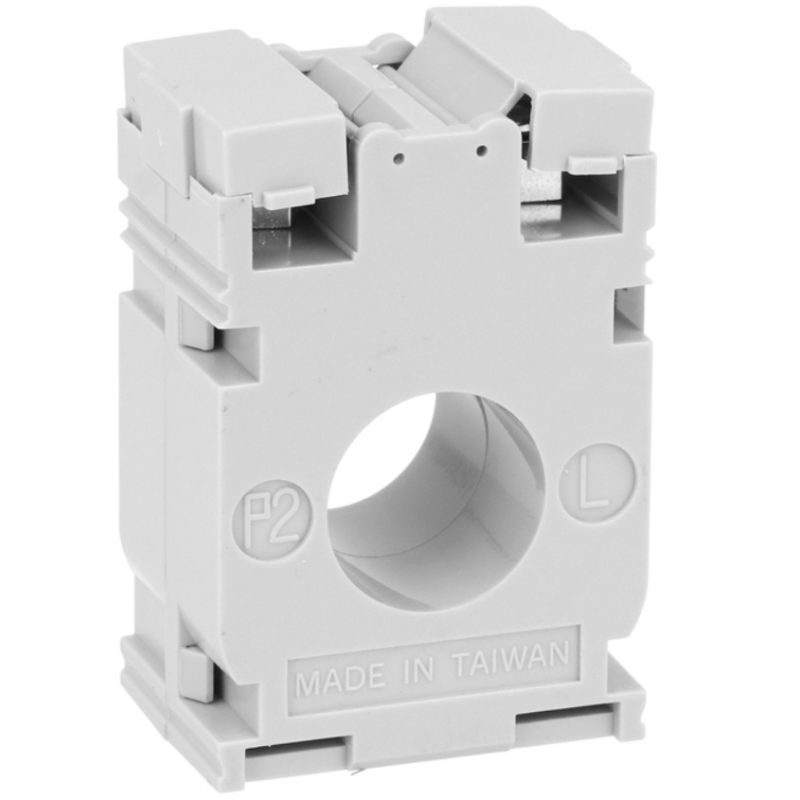

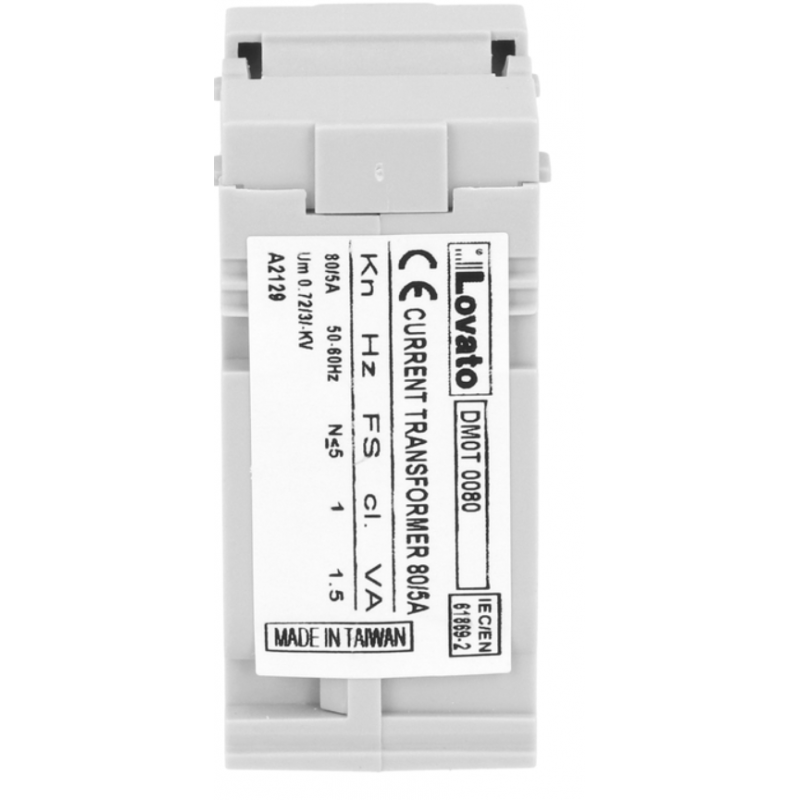

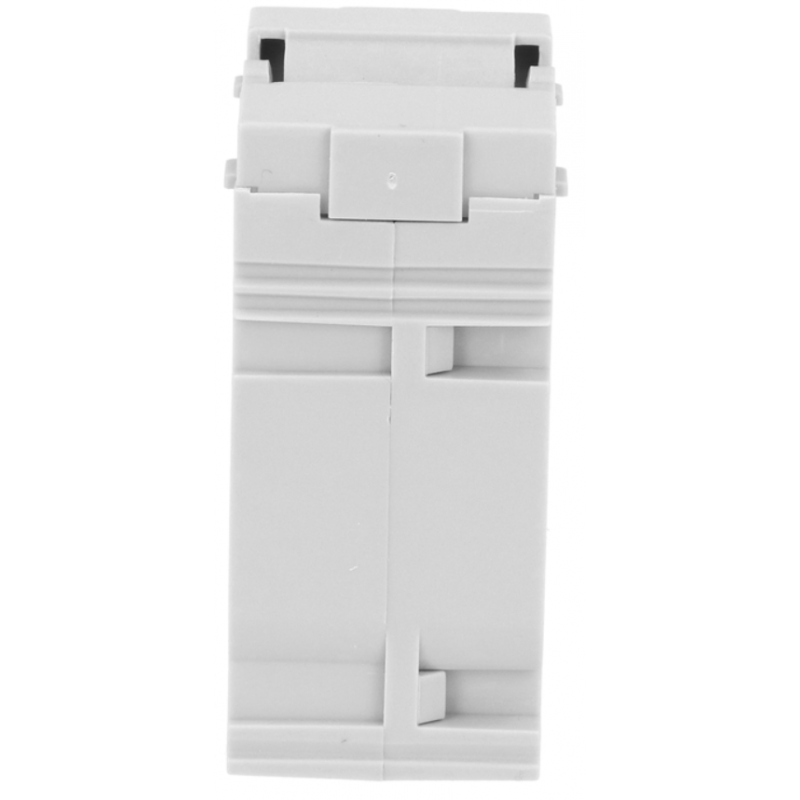

Lovato toroidal current transformer through cable 22mm 80A DM0T0080
LOV DM0T0080
8013975210635
Lovato toroidal current transformer, with the following features:
- 22 mm through cable
- Diameter 22 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 80A
- Secondary current 5A
- Rated insulation voltage IEC/EN 720V
- Screw type connections
- DIN rail or screw fixing
- Product weight 200gr
- Degree of protection IP30
Lovato toroidal current transformer through cable 22mm 80A DM0T0080
€14.25
€14.25
Tax included
Tax included
Pay in installments with Klarna
Items Available: 3
Features:
- Lovato Series
- Through cable 22 mm
- Diameter 22 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 80A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance cl.1 1.5 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Screw type connections
- DIN rail or screw fixing
- Product weight 200 g
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
There are no reviews
Data sheet
- Type:
- Toroidal Transformers
- Degree of protection:
- IP30
- Amps:
- 80A
