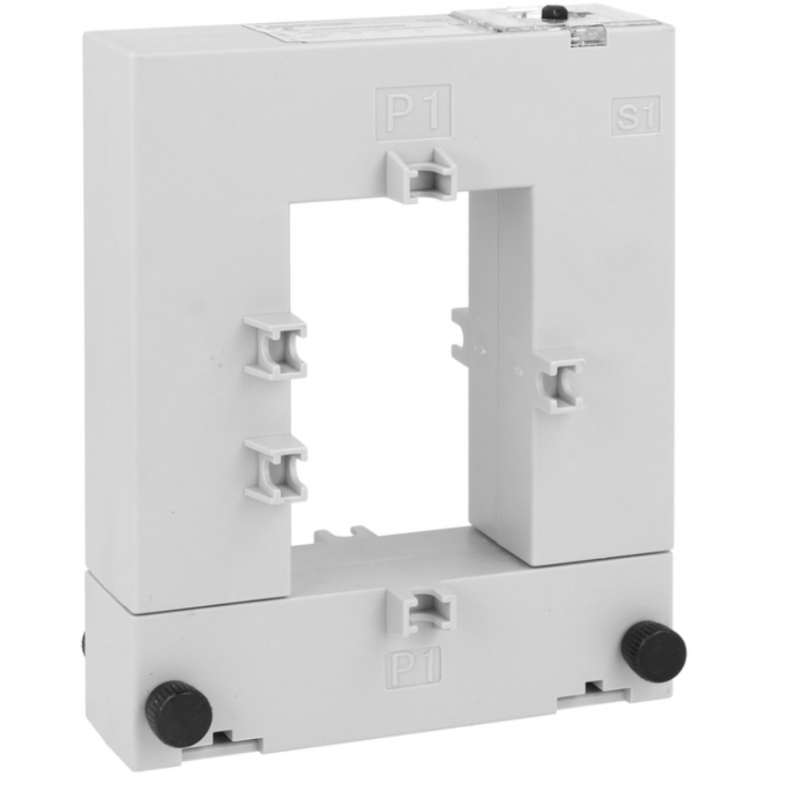

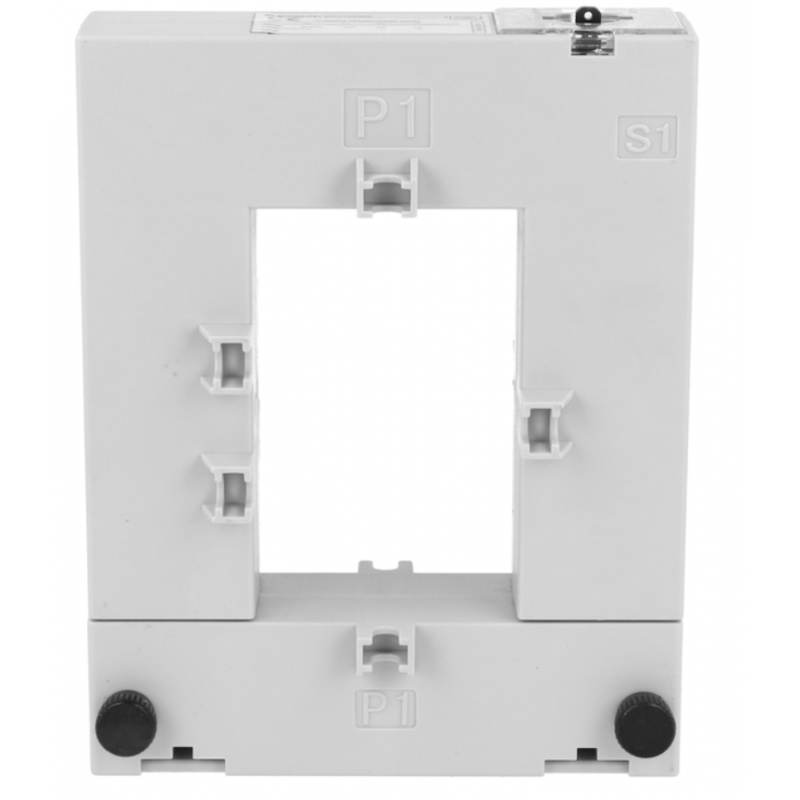

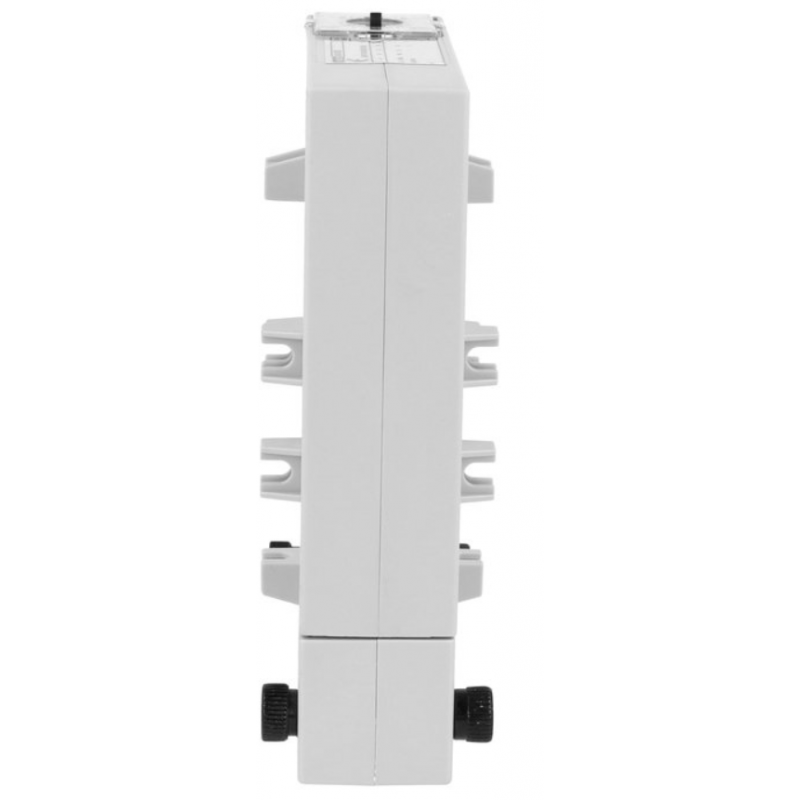

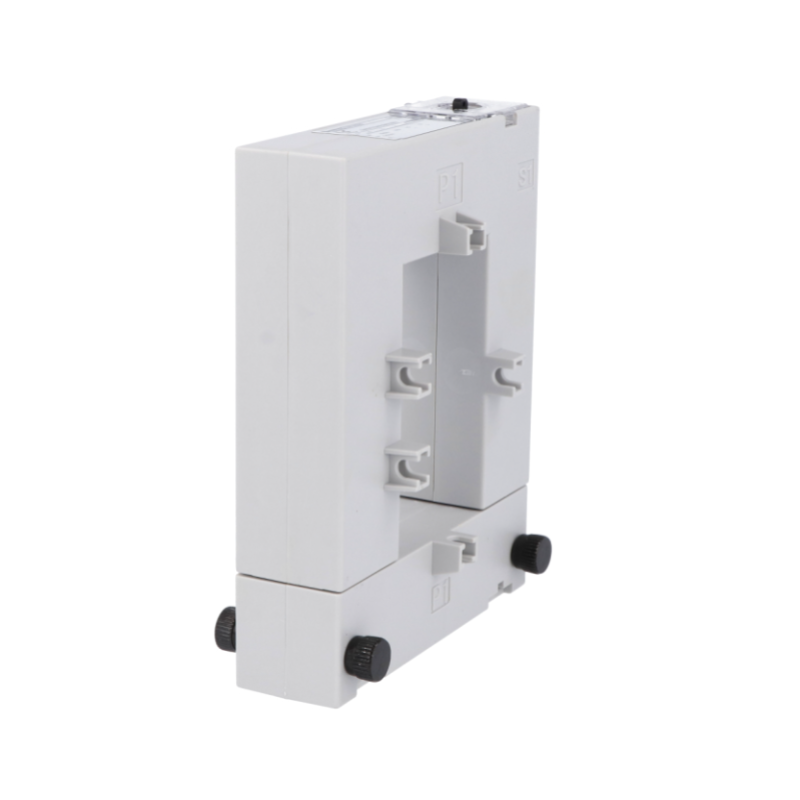

Lovato 400/5A openable current transformer bars 50x80mm DM1TA0400
LOV DM1TA0400
8013975178584
Lovato openable current transformer, with the following characteristics:
- Primary current Ipn (5) 400A
- Secondary current 5A
- Performance cl 0.5 1 VA - cl 1 2 VA
- Screw type connections
- Screw fixing
- Product weight 900gr
- Degree of protection IP30
- Cable for 50x80mm bars
€121.81
Items Available: 6
: 3
DM Series Current Transformers ( CTs) are mounted in an electrical system to reduce line current to a secondary value of 5A compatible with the current inputs of digital multimeters or protective relays.
They are currenttransformers without primary winding and are normally used for high primary current values starting from 40A. The number of passages of the primary cable does not modify the accuracy characteristics, but reduces the value of the primary current with the same secondary current.
Features:
- Lovato series
- Primary current Ipn (5) 400A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance cl 0.5 1.5 VA - cl 1 3 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Connections screw type
- Screw fixing
- Product weight 900gr
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
- Cable for 50x80mm bars
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Degree of protection: IP30
- Amps: 400A
