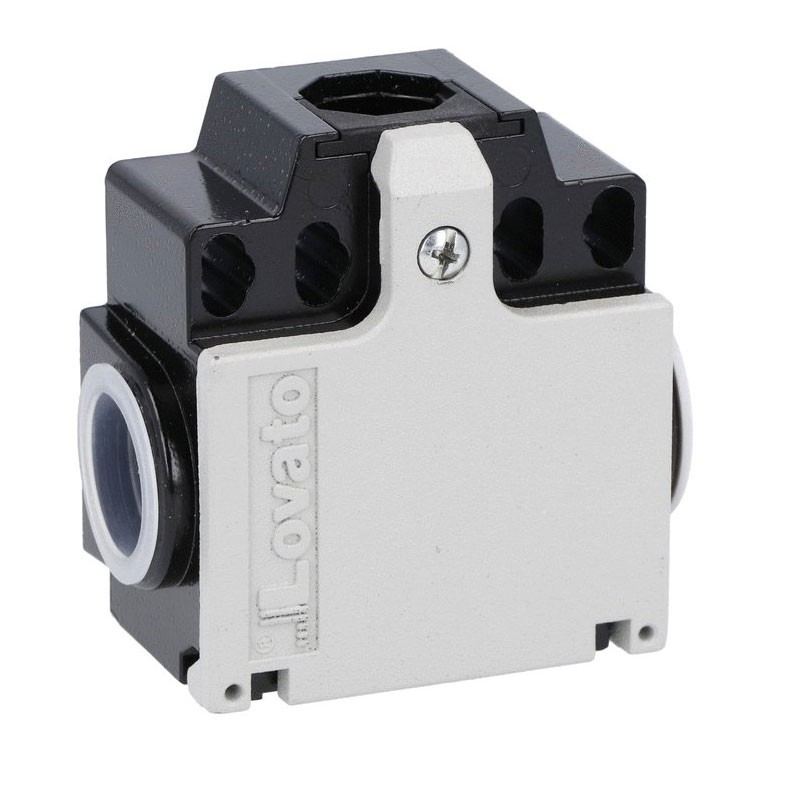

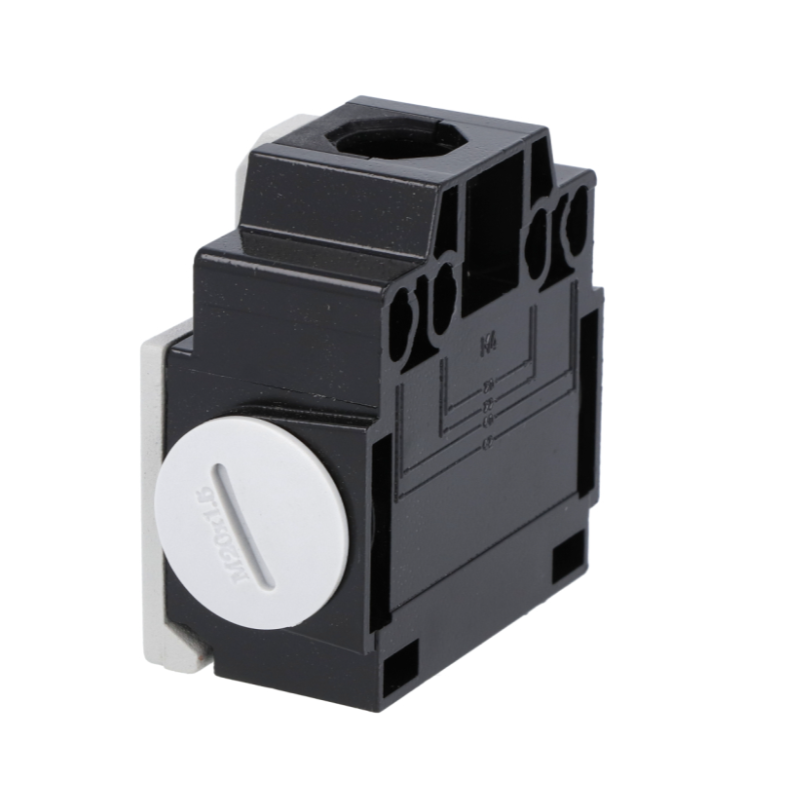

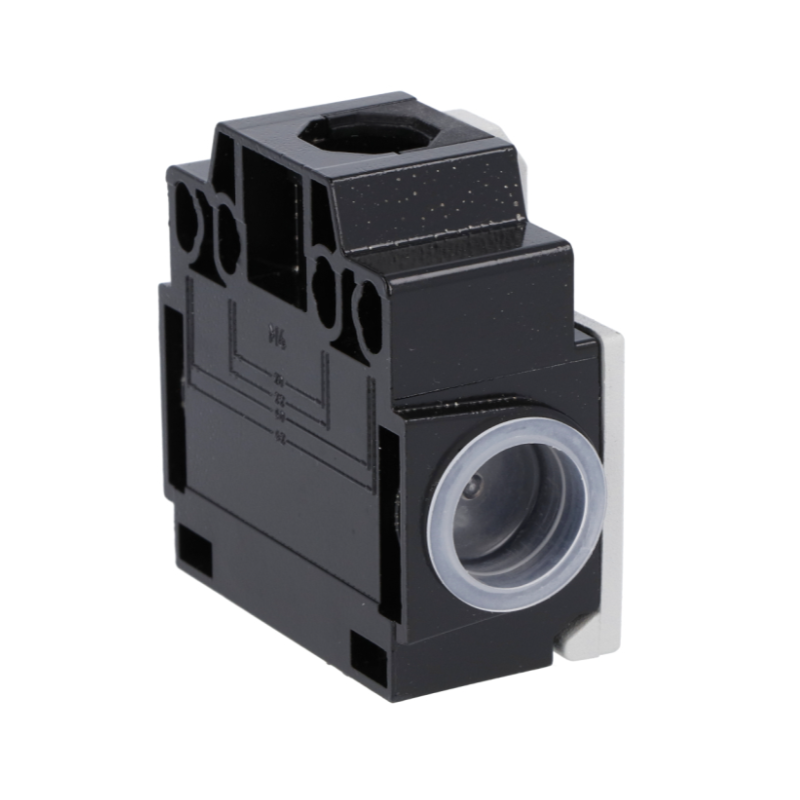

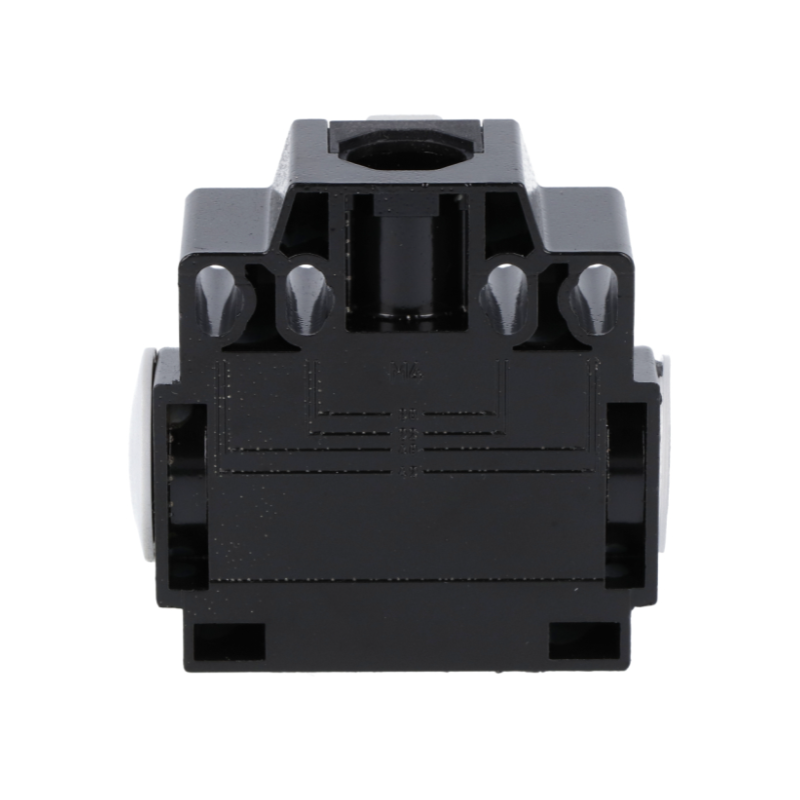

Lovato housing complete with 1NA+1NC metal contacts KXCNS11

Lovato
Lovato
LOV KXCNS11 8013975129111

Lovato housing, complete with 1NO+1NC contacts, with the following features:

  • Material: Housing Aluminum-zinc alloy
  • Contact type: snap action
  • Thermal current Ith UN 10
  • Designation IEC/EN 60947-5-1 A300 Q300
  • Rated insulation voltage Ui: 440V
  • Rated impulse withstand voltage Uimp kV 4
  • Fuse short-circuit protection: Class A-rapid fuse 10 gG/SC
  • IEC Conventional free air thermal current Ith UN 10
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato housing complete with 1NA+1NC metal contacts KXCNS11
€16.13
€16.13

€16.13
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€16.13

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical characteristics:

  • Resistance per pole (average value) m? <10
  • Conductivity: 10 mA 5V
  • Operating temperature: 25/+70°C
  • Storage temperature: -40/+70°C
  • IP grade: Terminals IP20 - Body housing IP65
  • Pollution degree 3
  • Cable entry: M20 at the sides
  • Mechanical life cycles >10000000
  • Cable connection: self-locking screw terminal
  • Fixing operating head: bayonet locking insert
