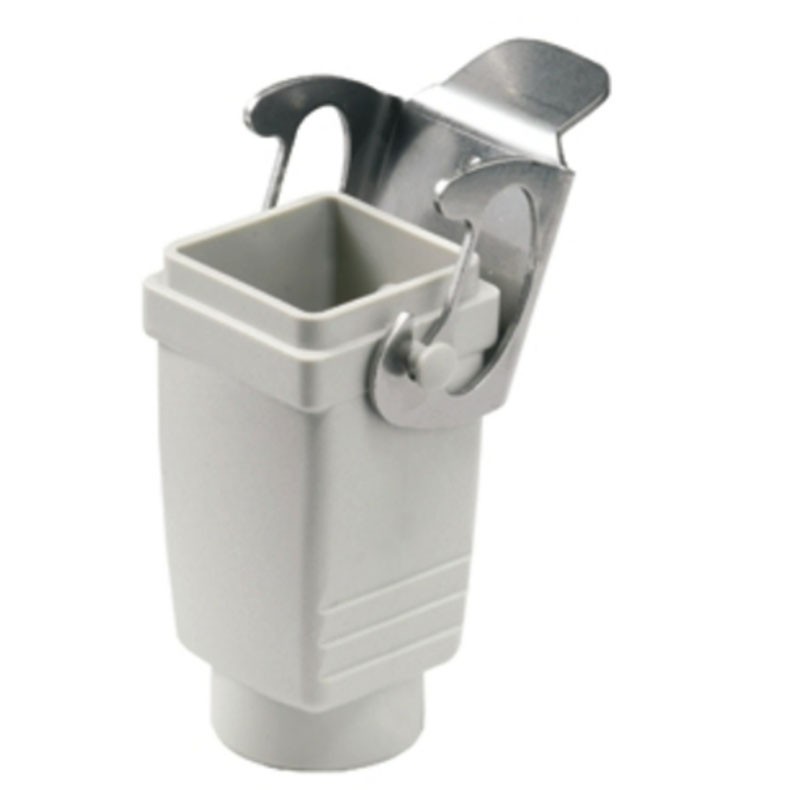

Weidmuller housing 4P extension base for PG11 cables 1652460000
WEI 1652460000
4008190402532
Weidmuller housing, with the following characteristics:
- UL 94 flammability class: V-0
- Tightening torque: 0.5 Nm
- EMC enclosures: no
- Degree of protection: IP65 (in engaged condition)
- Housing base material: Plastic
- Locking element material: Steel, stainless

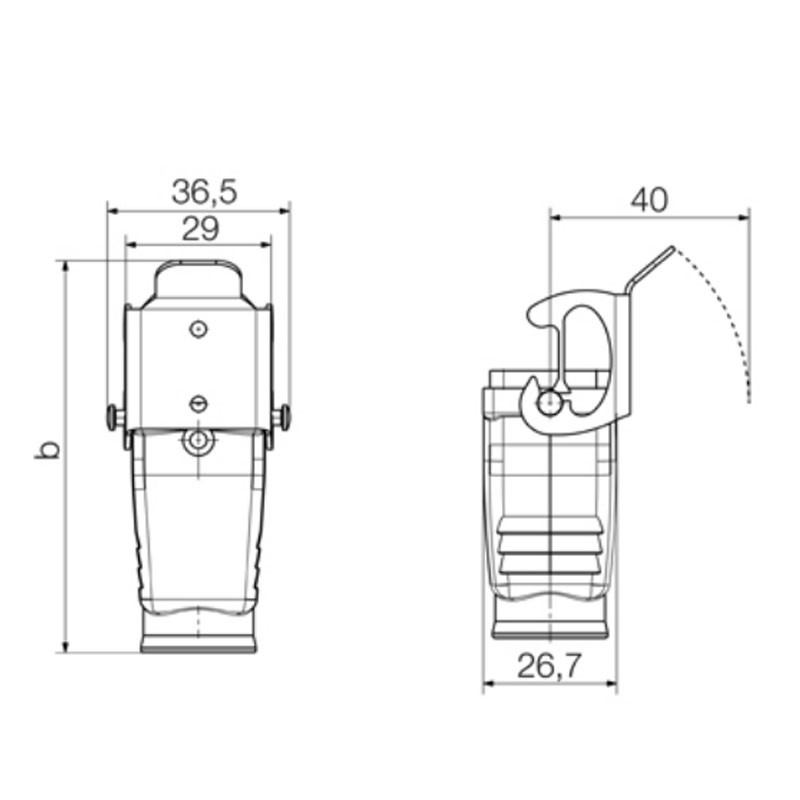

- Depth 26.7 mm
- Depth (inches) 1.051 inch
- Vertical position 77.5 mm
- Height (inches) 3.051 inch
- Width 36.5 mm
- Width (inches) 1.437 inch
- Net weight: 26 grams
€1.85
Items Available: 250
: 41
Other technical characteristics:
- Temperature limit values: -40/+125 °C
- Housing height B 53.5 mm
- Cable entry with thread
- Width, housing C: 26.8 mm
- Length, housings: 26.5 mm
- Suitable for ModuPlug®: No
- BG 1
- Color (RAL) RAL 1001
- Tightening torque: 0.5 Nm
- Cable entry size PG 11
- Cable entry with thread
- Housing execution Extension base
- Locking system execution Cross hook at bottom
- Thread (internal): PG 11
- Shape: Standard
- Size 1
- Number of cable entries at the top 1
- Number of side cable entries 0
- Upper part/Lower part/Lid: lower part
- Type: extension
- Hook version: cross hook
- ROHS Compliant
