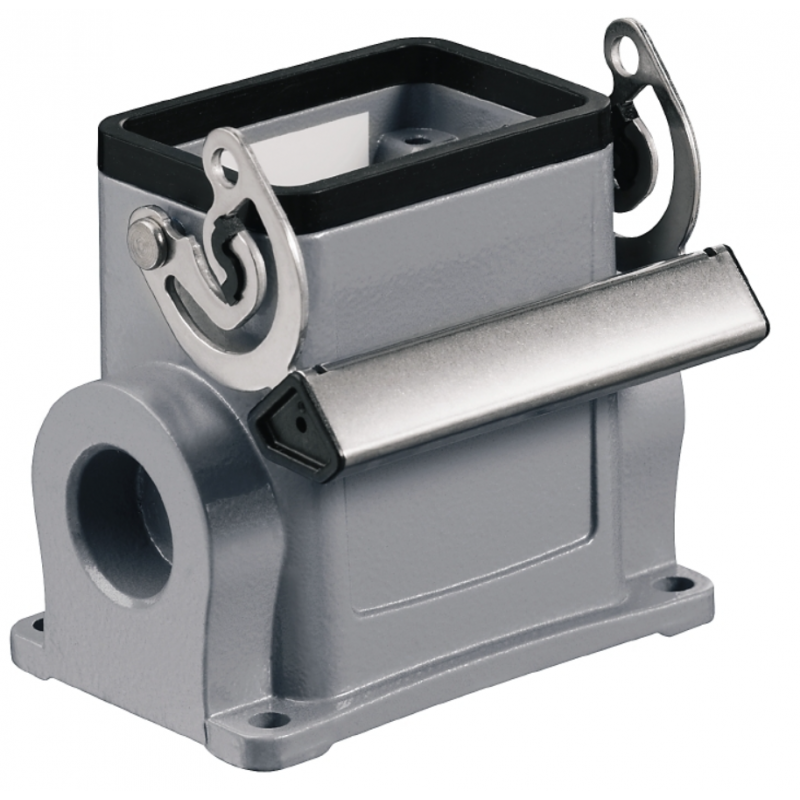

Weidmuller 6P Closed Case with Cable Hook M20 1788140000

Weidmuller
WEI 1788140000 4032248205585

Weidmuller case, with the following features:



  • Size: 3
  • Longitudinal hook at the bottom
  • Standard shape and without cover
  • Cable entry size: M 20

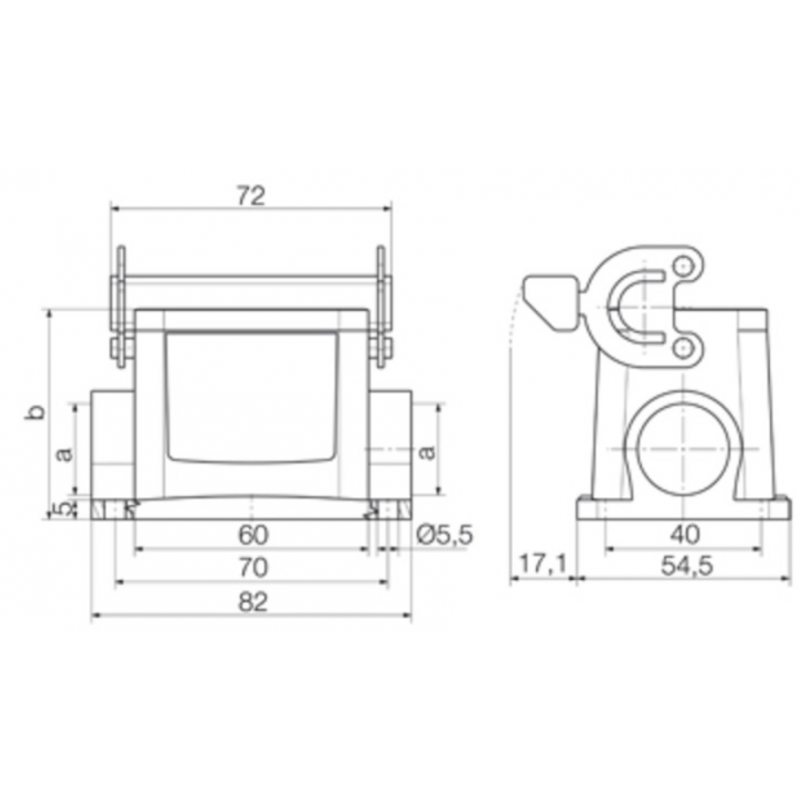

  • Vertical position: 54 mm
  • Height (inches): 2.126 inch
  • Width: 71.7 mm
  • Fixing height: 40 mm
  • Fixing width: 70 mm
  • Net weight: 224 grams
  • Temperature limit values: -40/+125 °C
  • Tightening torque: 1.2 Nm
  • Degree of protection: IP65 (in engaged condition)
  • Housing base material: die-cast aluminum
  • Clamping element material: Steel, stainless
  • Surface: Powder coated
  • Color (RAL): RAL 7035
Do you have questions about this product or did you not find what you were looking for? Ask us!
Weidmuller 6P Closed Case with Cable Hook M20 1788140000
€14.18
€14.18

€14.18
Tax included
Calculate shipping cost

€14.18

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Data sheet

Type:
Cases
