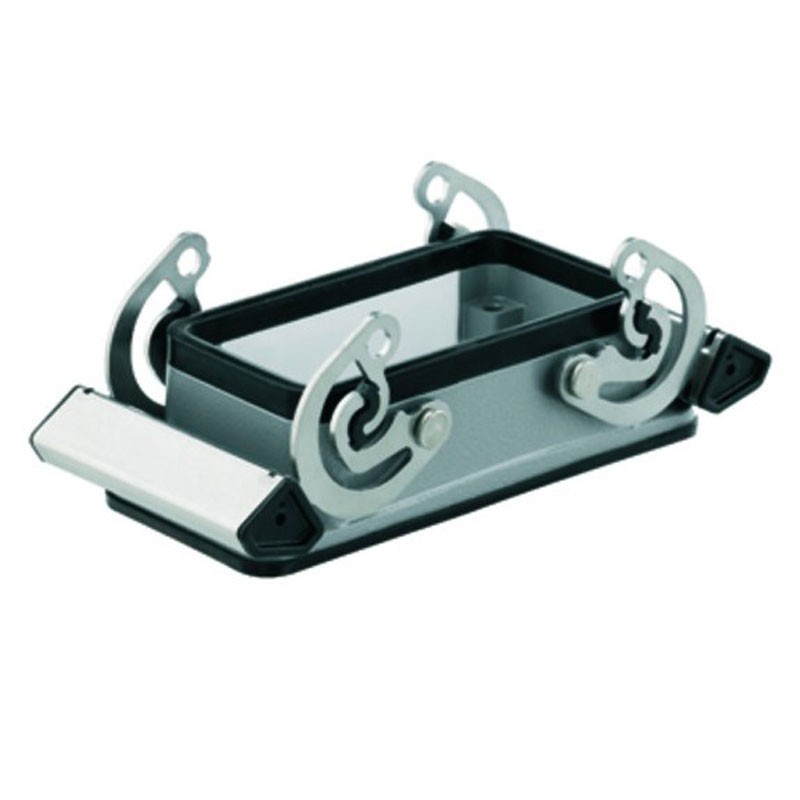

Weidmuller Base 10P pass-through case with Cross Hook 1205000000
WEI 1205000000
4008190872960
Weidmuller case, with the following features:
- Size: 4
- Pass-through base
- Cross hook at bottom and not replaceable
- Standard shape

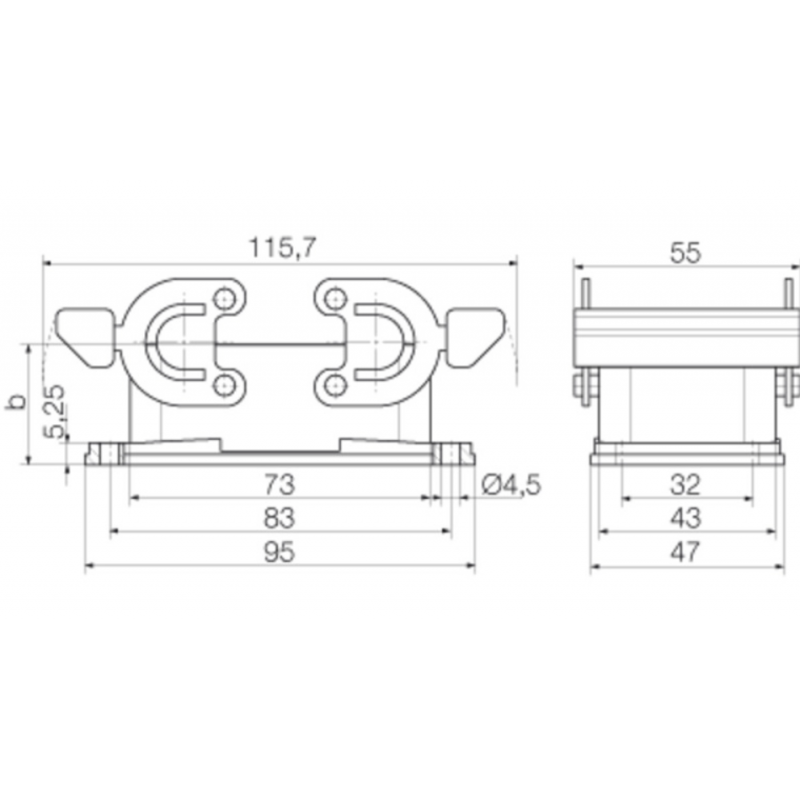

- Vertical position 29.3 mm
- Height (inches) 1.154 inch
- Width 55 mm
- Width (inches) 2.165 inch
- Fixing height 32 mm
- Fixing width 83 mm
- Net weight 146 grams
- Tightening torque: 1.2 Nm
- Temperature limit values: -40/+125 °C
- Degree of protection: IP65 (in engaged condition)
- Housing base material: die-cast aluminum
- Clamping element material: Steel, stainless
- Surface: Powder coating
- Color (RAL): RAL 7035
![](https://www.elettronew.com/67522-large_default/housing-weidmuller-base-10p-shaft-with-cross-brace-1205000000.jpg)
Weidmuller Base 10P pass-through case with Cross Hook 1205000000
€10.22
€10.22
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 29
Data sheet
- Type:
- Cases
