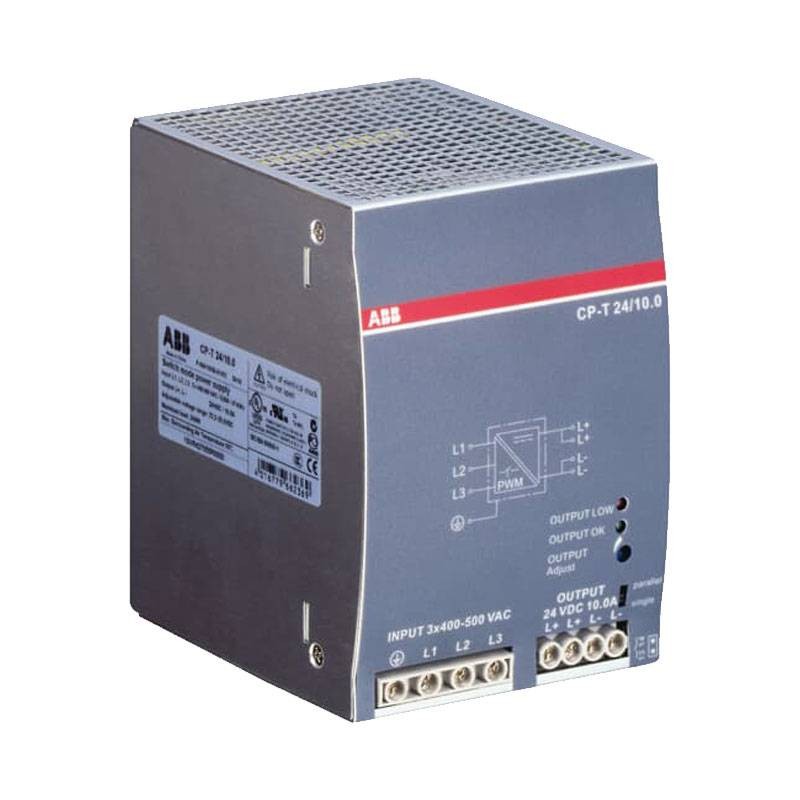

Abb switching power supplies 10A three-phase 24VDC 240W CPT2410
ABB CPT2410
4016779662369
Abb CP-T 24/10.0 switching power supplies:
- Output current: 10A
- Number of phases: 3
- Rated output voltage: 24V DC
- Rated output power: 240W
- Input voltage (Un): 3 x 34...575V AC - 480...820V DC
€334.91
Out of stock
Features:
- Dimensions: Width 89 mm - Height 131 mm - Depth 119 mm
- Net weight: 1.045 kg
- Rated frequency (f): 50 Hz
- Rated frequency: 47 ... 63 Hz
- Degree of Protection: IP20 Housing - IP20 Terminals
- Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 4 mm² - Rigid 0.2 ... 6 mm²
- Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 4 mm² - Rigid 0.2 ... 6 mm²
- DIN Rail Mounting: TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm Mounting Rail) according to IEC 60715
- Ambient temperature: In operation -40/+70 °C - In storage -40 /+85 °C
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Degree of protection: IP20
