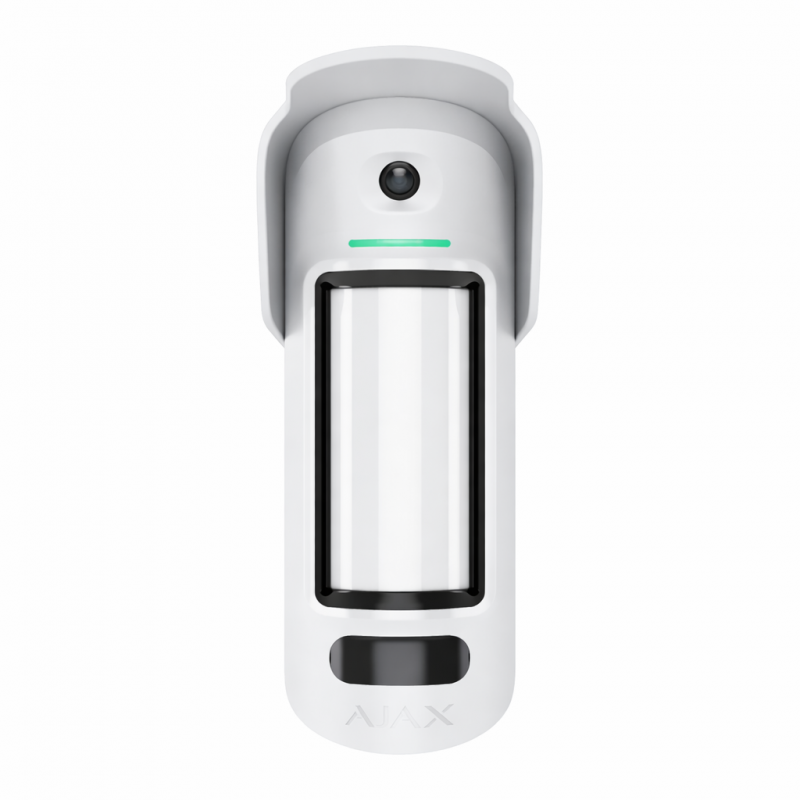

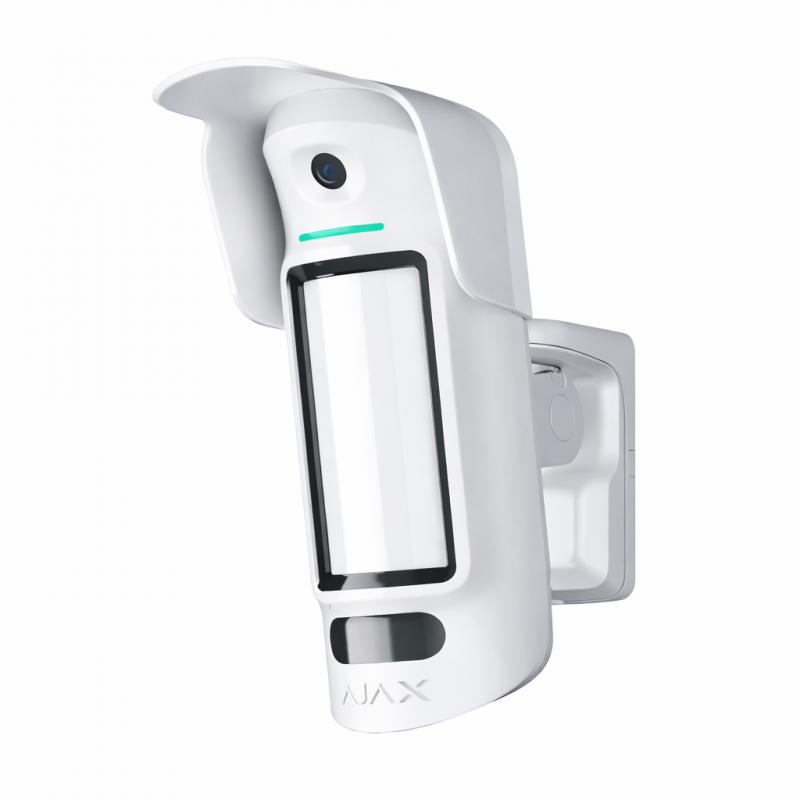

Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller 142717 is an outdoor curtain detector with HDR photo verification on demand, dual PIR+microwave technology, and integrated IR. It precisely protects perimeters, installation 24 m.

  • Type: wireless outdoor curtain motion detector with camera

  • Sensors: 2× PIR + 1× K-band microwave

  • Microwave frequency: 24 GHz

  • Motion detection distance: up to 15 m (installation 24 m, depends on sensitivity)

  • Main detection angles: H 7°, V 73°

  • Pre-alarm zone: H 43°, V 88°

  • Photo verification: HDR, integrated IR, up to 5 photos per series, first photo < 9 s

  • Photo resolution: up to 640 × 480 px

  • Types of photos: alarm, on demand (PhOD), scenario, programming, arming/disarming

  • False alarm algorithms: SmartDetect, temperature compensation

  • Operating temperature: from 25 °C to +60 °C

  • Recommended installation: vertical wall, height 24 m, adjustable orientation.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ajax CurtainCam Outdoor HighMount PhOD motion detector 142717
€287.16
€287.16

€287.16
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€287.16

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

CurtainCam Outdoor HighMount (PhOD) Detector: precise perimeter protection

The CurtainCam Outdoor HighMount (PhOD) Jeweller is designed for perimeter protection: entrances, facades, fences, gates, driveways, and critical passage areas. Its curtain pattern creates a narrow and controlled vertical barrier, reducing unwanted activations and focusing on what matters: transit in the protected area. With a range of up to 15 m (depending on installation and sensitivity), it is an ideal choice for those who want a precise and reliable wireless outdoor sensor.

  • Dual technology: 2 PIR sensors + 24 GHz K-band microwave

  • Advanced photo-verification (PhOD): capture on request, alarm, scenario, scheduling, arming/disarming

  • HDR + IR illumination: clear images even in low light

  • Curtain detection up to 15 m with narrow 7° beam (ideal for facades and accesses)

  • First photo < 9 s, up to 5 photos per event (GIF/MP4)

  • Anti-false alarm algorithms: SmartDetect + temperature compensation (?25 °C / +60 °C).


Ajax outdoor curtain detector: precise perimeter protection

The CurtainCam Outdoor HighMount (PhOD) Jeweller is designed for perimeter protection: entrances, facades, fences, gates, driveways, and critical passage areas. Its curtain pattern creates a narrow and controlled vertical barrier, reducing unwanted activations and focusing on what matters: transit in the protected area. With a range of up to 15 m (depending on installation and sensitivity), it is an ideal choice for those who want a precise and reliable wireless outdoor sensor.


PhOD photo-verification: immediate peace of mind, even on request

The real difference is the integrated photo-verification. The device captures HDR images and combines them into GIF or MP4 to show the event's progression. It can take the photo at the time of the alarm, but also on user request via the Ajax app, useful for quick checks without having to disarm the system. The verification speed is a strong point: first photo in less than 9 seconds and up to 5 photos per series, with resolution up to 640×480 px. IR illumination makes photo-verification effective even at night or in low-light conditions.


Dual PIR + microwave technology: fewer false alarms, more certainty

CurtainCam Outdoor HighMount combines 2 PIRs and a K-band microwave sensor (24 GHz). The PIRs analyze the variation in thermal radiation, while the microwave adds information on direction and speed of movement, regardless of temperature. The pre-alarm logic prepares the camera when an object enters the wide zone; if the object then crosses the narrow PIR zone, the alarm and photo are triggered at the most useful moment: that of the actual intrusion.


Professional installation 24 m: controlled coverage and precise adjustment

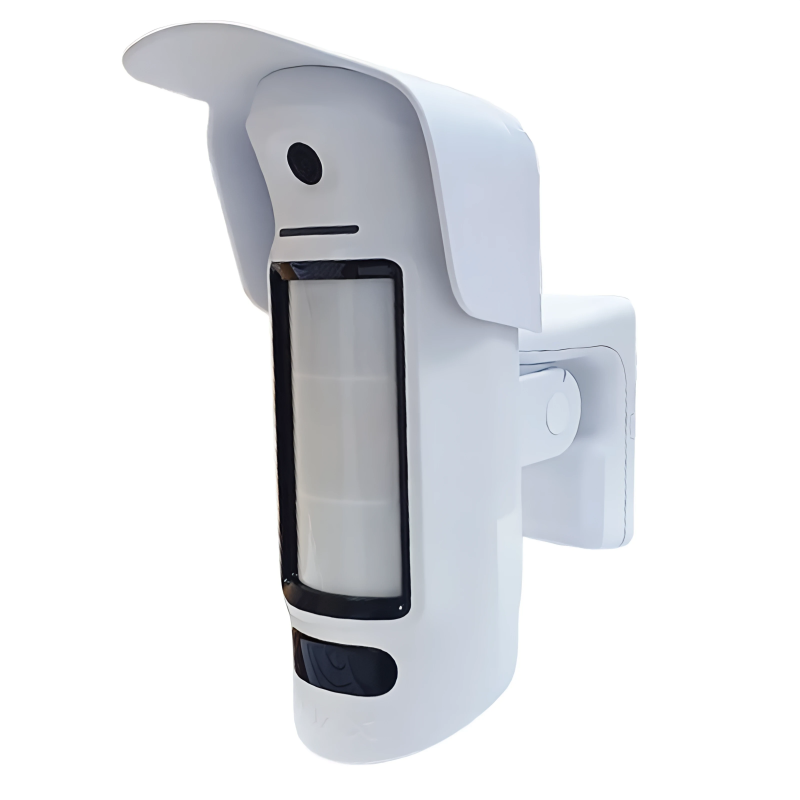

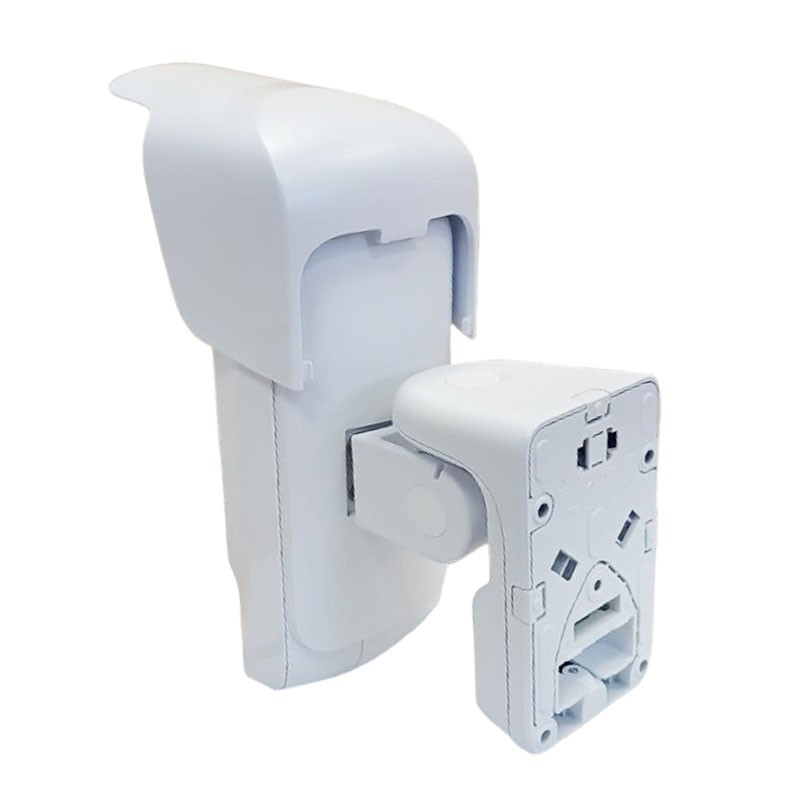

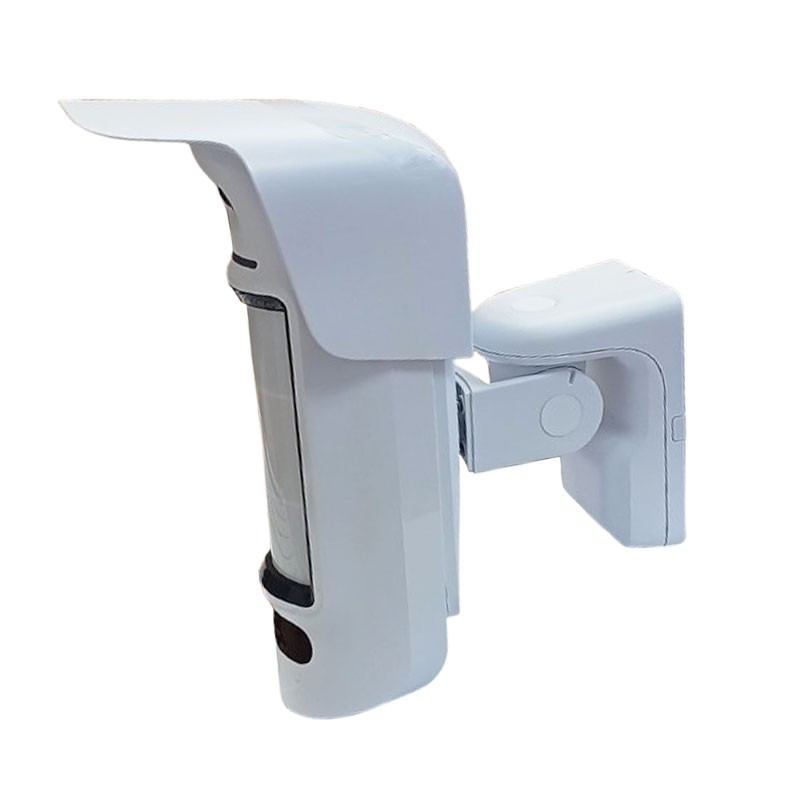

The detector is designed for outdoor installations at a height of 24 m, with a bracket that allows accurate orientation. The main detection angle is very selective (7° horizontal), perfect for avoiding overly wide cuts and protecting specific passages. The sensitivity configuration (3 levels) allows adapting the behavior to the context: areas with potential disturbances, open spaces, or mandatory paths. The device operates in a wide climatic range (?25 °C / +60 °C) and can be further protected with a hood to support the anti-masking system in case of rain/snow.

Compatibility with the following devices
EN54 Fire Hub Jeweller
Hub 2 (2G) Jeweller
Hub 2 (4G) Jeweller
Hub 2 Plus Jeweller
Hub BP Jeweller
Hub BP Jeweller (without casing)
Superior Hub G3 Jeweller
Superior Hub Hybrid (2G)
Superior Hub Hybrid (4G)
Superior Hub Hybrid (4G) (without casing)
Superior Hub Hybrid 2
Superior Hub Hybrid 2 (without casing)
Superior MegaHub Superior
MegaHub (without casing)
EN54 Fire ReX Jeweller
ReX 2 Jeweller Superior
ReX G3 Jeweller



COMMUNICATION
Jeweller Communication Technology Proprietary wireless communication technology for transmitting commands, alarms, and events.
Main features Bidirectional communication.
Advanced anti-sabotage protection.
Block encryption with a floating key.
Instant notifications.
Remote control and configuration in Ajax apps.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0 – 926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depending on the sales region.
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce energy consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,700 m
Between the device and the hub (or repeater) in open space.
Encrypted communication All saved and transmitted data is protected by block encryption with a floating key.
Frequency hopping To avoid radio interference and signal jamming.
COMMUNICATION
Wings Communication Technology Proprietary wireless communication technology for transmitting photo verifications.
Main features Bidirectional communication.
Advanced anti-sabotage protection.
Block encryption with a floating key.
Data packet reloading in case of transmission errors.
Photo delivery control.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0 – 926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depending on the sales region.
Radio communication range up to 1,700 m
Between the device and the hub (or repeater) in open space.
Encrypted communication All saved and transmitted data is protected by block encryption with a floating key.
Frequency hopping To avoid radio interference and signal jamming.
DETECTION
Sensor type 2 × PIR sensors
1 × K-band microwave sensor
Operating frequency: 24 GHz.
Motion detection distance up to 15 m
If installed at a height of 2–4 m.
Also depends on the sensitivity level set in the device settings.
Motion detection angle horizontal: 90°
Motion detection speed from 0.3 to 2.0 m/s
The direction of the detector's sensors must be perpendicular to a presumed intrusion path in the facility.
Sensitivity 3 levels
Set by a PRO or a user with administrator rights in Ajax apps.
False alarm prevention SmartDetect
Software algorithm.
Temperature compensation Effective motion detection at temperatures between −25 °C and +60 °C.
PHOTO VERIFICATION
Photos per alarm The built-in camera activates when the detector is armed and motion is detected.
Photos on demand The user takes a photo at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photos per scenario A detector camera automatically takes photos when Ajax fire detectors are triggered. The feature is not configured by default.
Photos per schedule The detector automatically takes photos at the set time. The feature is not configured by default.
Photos per arming/disarming The detector automatically takes photos when the security mode is changed.
Adjustable photo resolution 640 × 480 px
320 × 240 px (by default)
Set by a PRO or a user with administrator rights in Ajax apps.
Camera detection angles horizontal: 115°
vertical: 84°
HDR image Improves detail accuracy in bright and dark scenes.
IR illumination Per night shooting and in low light conditions.
Image series from 1 to 5 images with a resolution of 320 × 240 px
from 1 to 3 images with a resolution of 640 × 480 px
Set by a PRO or by a user with administrator rights in the Ajax apps.
Photo delivery time within 9 s with a resolution of 320 × 240 px

within 20 s with a resolution of 640 × 480 px

The photo delivery time depends on the image resolution selected in the device settings.
TAMPER PROTECTION
Tamper alarm Notifications of attempts to remove the detector from the mounting panel.
Magnetometer detects attempts to tilt or move the detector or detach it from the surface
Anti-masking system detects attempts to block the detector's view
Fixing screw For mounting the device on SmartBracket
Counterfeit protection device authentication
Communication loss detection after 36 s
The detection time depends on the Jeweller/Fibra settings.
MAIN POWER SUPPLY
Batteries 6 × CR123A
Pre-installed.
Type type C
Estimated battery life up to 3 years
Detector operating voltage 3.8−6.5 V⎓
Detector nominal operating voltage 6 V⎓
Detector current consumption at nominal voltage 45 μA
Maximum detector current consumption at nominal voltage 1,200 mA
Full battery capacity 4,800 mAh
Low battery voltage 4.2 V⎓
Low battery recovery voltage 5.0 V⎓
End-of-life battery voltage 3.8 V⎓
The device is turned off.
End-of-life battery capacity 300 mAh
Manufacturer Huiderui
OPTIONAL POWER SUPPLY
External power supply operating voltage 12−24 V⎓
When external power is connected, the batteries become a backup power source.
HOUSING
Dimensions with swivel mount 234 × 98 × 230 mm
Dimensions without swivel mount 234 × 98 × 137 mm
Weight with swivel mount 1,010 g
Weight without swivel mount 620 g
Operating temperatures from −25 °C to +60 °C
Maximum allowable humidity up to 95%
Protection class IP55
PACKAGE CONTENTS
Package contents MotionCam Outdoor HighMount (PhOD) Jeweller
6 × CR123A batteries (pre-installed)
SmartBracket mounting panel
Swivel mount
Hood
Installation kit
Quick guide
