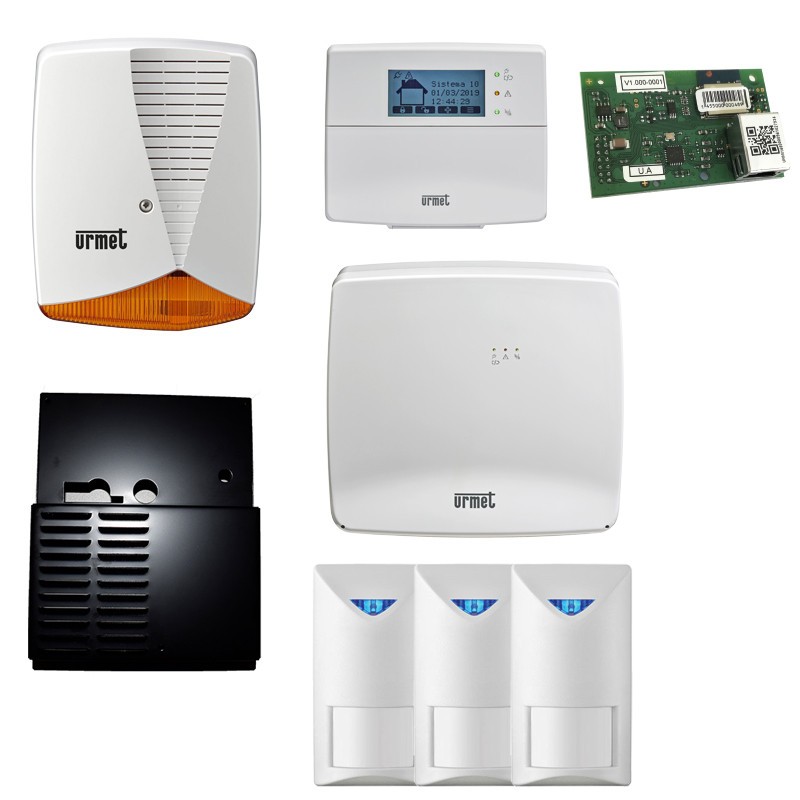

Kit component specifications:




1 piece multifunction BUS management central unit with 5 inputs expandable to 21, partializable to 4 zones (code 1068/005): The 1068 system is the ideal solution for implementing medium and small intrusion detection systems. Minimalist design and state-of-the-art technology are the Concept of the new product. It is easily scalable and meets all the needs of the residential market. The system can be managed locally and remotely via mobile devices such as smartphones and tablets. It is a flexible system, dialogues with wireless devices, has IP, GSM and PSTN communication carriers. It has an APP for the user (APP URMET SECURE) and an of APP for the installer (APP 1068set) with which to configure and manage the system.



Technical features:

• Multilingual menu: Italian, English, French and German
• Programming via tablet with Android App 1068set
• Programming storage on micro SD Card, to transfer programming between tablet and control unit or save a back-up copy
• Device firmware update via micro SD Card or IP interface 1068/013
• System management via Urmet Secure user App (iOS and Android)
• IP (Ethernet and Wi-Fi) and GSM communication carriers
• Push notifications, voice messages, email and SMS
• Advanced voice alarm calls, allow specific voice alarm messages to be sent for individual zones and/or inputs.
• Wireless device management
• Video surveillance device management, via Urmet Secure APP
• Integrated voice synthesis, resides in GSM carriers
• Digital transmission of numeric protocols, DC05 and DC09 to surveillance institutions
• SIM expiry warning
• Self-learning of devices connected on bus
• Time programmer
• Telephone triggering of an output without answering, using GSM telephone number recognition by the control unit, it is possible to generate a command on a specific output and close the communication after setting the number of rings (from 3 to 9), without call charges.
• Technology alarm management
• Coercion alarm, opening the input generates the coercion alarm, regardless of the activation status of the zones.
• The input is active H24.
• Distress signalling, generates service signalling when a dedicated button is operated
• Auxiliary functions of inputs, GONG, courtesy light and door opener
• Input specialisation
• Output specialisation
• Dimensions (W x H x D): 290 x 275 x 95 mm


1 piece LCD control keyboard (code 1068/021): Keyboard for intrusion detection system 1068 with backlit LCD graphic display. The keypad is powered by the control unit bus to which it is connected.

• 128 x 64 pixel backlit LCD graphic display with contrast and brightness adjustment
• 3 LEDs for signalling system status
• 18 backlit keys
• Buzzer with adjustable sound level
• 1 programmable input
• Bus power supply



1 piece Ethernet/Wifi IP interface (part number 1068/013): The interface is an optional module to provide IP/Wifi connectivity to 1068 control panels, allowing integration with a LAN network and thus remote management of alarm systems via APP on smartphones or tablets. The interface is connected directly to the control panel board via the connector and communicates directly with the host control panel via a dedicated serial connection.



• Nominal supply voltage: 14V⎓ (taken from control panel)
• Power supply range: 9V ÷ 15V
• Power consumption at nominal voltage of 14V: 60mA
• Logic signal level from/to central unit: 3.3V
• Frequency band: 2400 ÷ 2483.5 MHz
• Output power (Max): 20 dBm
• Ethernet connection baud rate: 10Mbps
• WiFi connection baud rate: 54Mbps
• Maximum operating relative humidity: 75%
• Operating temperature: -10°/+40°C




3 pieces dual technology 10.5 GHz detectors, range 15 meters (code 1033/132): Dual technology detector, EN50131-2-4 certified. The use of the 2 technologies (infrared and microwave) ensures high immunity from false alarms in risky conditions, without compromising the reliability of protection.



• Volumetric detector consisting of an IRP + MW at 10.525 GHz
• Power supply : 12V +/- 3V-
• Max Power Consumption : 22mA
• Adjustable range ( via trimmer)
• Opening angle 90°
• Fresnel lens 18 beams on 4 planes plus low proximity beam
• LED OFF
• Wall or corner fixing
• Joint for wall or ceiling mounting (to be purchased separately code 1033/119)
• Dimensions in mm: 61.5 (W) x 10.8 (H) x 47.5 (D)




1 piece self-powered outdoor siren with flashing light (code 1033/414): The new siren is suitable for outdoor use, is self-powered, has a flashing light, and is equipped with double protection against opening and removal from the wall. It is also suitable as a signaling device in scaffolding. EN50131-4 grade 2 certified.



• Operating voltage (min - max) : 9 ÷ 15 VDC
• Absorption at rest : 7 mA
• Max. absorption in alarm : 1600 mA average
• Sound pressure : > 110 dB (A) @ 1 m
• Max. ringing time : 15 minutes
• Input block voltage (NC to positive)
• Low battery threshold: 11.5 VDC
• Siren tamper contact: 1A @ 24V
• Operating temperature: -25°C to +70°C
• Enclosure degree of protection IP44
• Material : PC-ABS self-extinguishing
• Optional cage material: 8/10 galvanized sheet metal
• Allocatable accumulator: 12V - 1.9 to 2.2 Ah
• Guaranteed performance level (EN50131-4): Grade 2




1 piece protective grille for the siren (code 1033/417): The galvanized sheet metal grille provides passive protection against mechanical type break-ins. It is an accessory for the 1033/414 siren.
