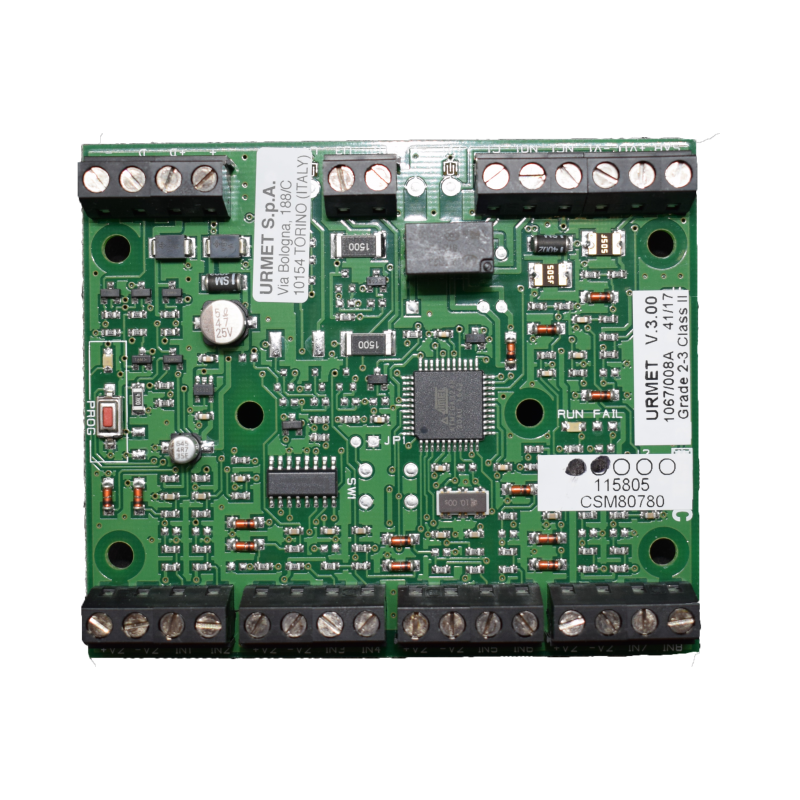

Urmet control unit expansion module with 8 inputs and 3 outputs 1067/008A
UTD 1067/008A
8021156054763
Urmet Expansion Module is designed to increase the input and output capacity of Urmet 1067 and 1068 control panels. With its connection via bus line, it offers a practical and integrated solution for expanding the functionality of security systems, with the following features:
-
Management of 8 inputs: effective expansion for managing additional devices
-
Flexible outputs: 1 relay output and 2 open collector outputs, ideal for diversified applications
-
Tamper input: enhanced protection against sabotage attempts
-
Programmable inputs and outputs: total customization to fit specific needs
-
Connection via bus line: simple and direct integration with control panels
-
Power supply via bus: eliminates the need for separate power supplies, optimizing installation
-
Low current consumption: only 30 mA, for efficient operation
€60.69
Items Available: 61
Frequently bought together
Urmet control panel expansion module with 8 inputs and 3 outputs
Flexible expansion for advanced systems
With its ability to handle 8 inputs and 3 outputs, the 1067/008A module makes it easy to expand the functionality of Urmet control panels. This expansion is ideal for those who wish to integrate new devices or improve the control of existing systems.
Security and programmability
The presence of a tamper input and the ability to freely program inputs and outputs make this module an essential component for advanced security configurations, adapting to numerous application scenarios.
Technical specifications:
- Inputs: 8
- Outputs: 1 relay output - 2 open collector outputs
- Tamper input: included
- Connection: via bus line
- Power supply: from the central unit bus line
- Current consumption: 30 mA
- Operating temperature: -10/+40 degrees
- Dimensions: 89x75x14 mm (WxHxD)
Spedizione veloce, prodotto come da descrizione e ben imballato.
Ottimo prodotto puntuali e precisi.una garanzia
perfetto, dispositivo arrivato velocemente, rispondente alla descrizione
Ottimo prodotto facile da installare. Ridotte dimensioni.
Forma contenuta, ottimo utilizzo grazie
espansione veloce da acquisire e pretica
Data sheet
- Type: Expansion Cards
