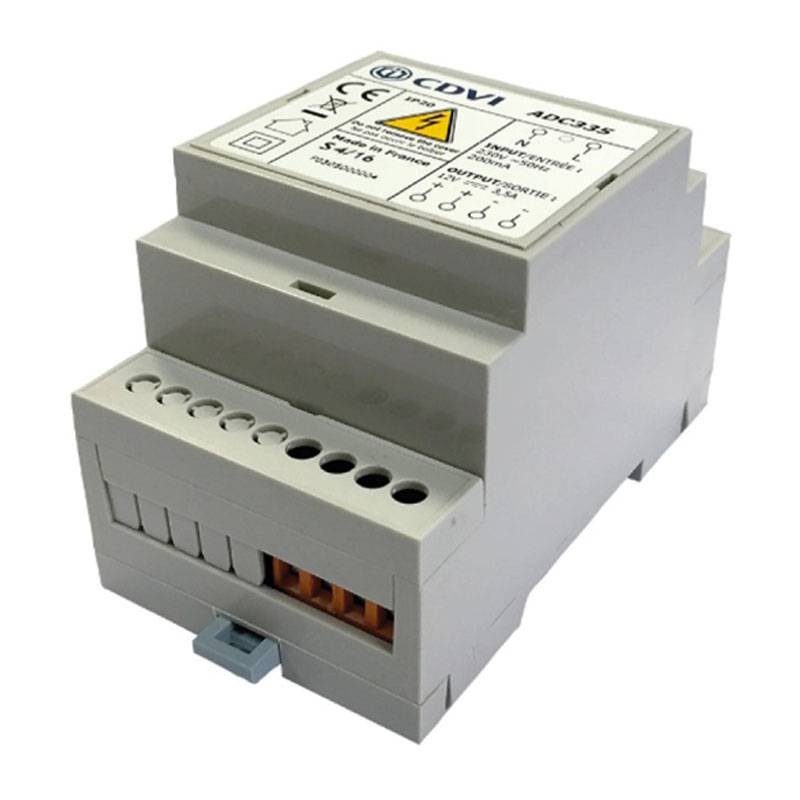

CDVI 12V 3.5A stabilized switching power supply unit ADC335
CDV ADC335
3662211015159
The CDVI switching power supply is a compact and robust device designed to provide a stable and safe power supply in a variety of application contexts. With a stabilized 12VDC output voltage and a maximum current of 3.5 amps, it is ideal for offices, banks, public buildings, and industrial applications:
-
Stabilized output: Constant voltage of 12VDC regardless of load
-
Maximum current: 3.5 amps to support high-power devices
-
Built-in protections: Fuses on primary and secondarycircuits to ensure safety
-
Rugged construction: Made of polycarbonate, durable and safe
-
Compatibility: Perfect for powering electric locks, magnets, RFID readers and vandal-resistant keypads
-
Compact design: Small size, can be installed on DIN rail
€72.74
Items Available: 9
: 9
Frequently bought together
CDVI 12V 3.5A stabilized switching power supply unit ADC335
Functionality and reliability
Using PWM switching technology, the ADC335 offers high efficiency and precise voltage regulation. This power supply is designed to provide a stable 12V output, regardless of the load, avoiding voltage surges that could damage connected devices.
Safety and protection
With built-in fuses on both circuits (primary and secondary), the power supply offers a high level of protection against overloads or short circuits. The polycarbonate case adds an extra level of safety, making it reliable even in industrial or public environments.
Applications
The ADC335 is ideal for powering a wide range of devices such as:
- Electric locks
- External security magnets
- RFID readers
- Vandal-resistant keypads
With its compact, DIN-rail mountable design, it integrates easily into electrical systems, making it a perfect choice for offices, banks, public buildings, apartment buildings and industries.
General Data
| Specifications | Details |
|---|---|
| Output Voltage | Stabilized 12 Vdc |
| Maximum Output Current | 3.5 Amps |
| Power Supply | 230/240V |
| Mains Frequency | 50/60 Hz |
| Power consumption | 0.25 Ampere |
| Technology | PWM (switching) |

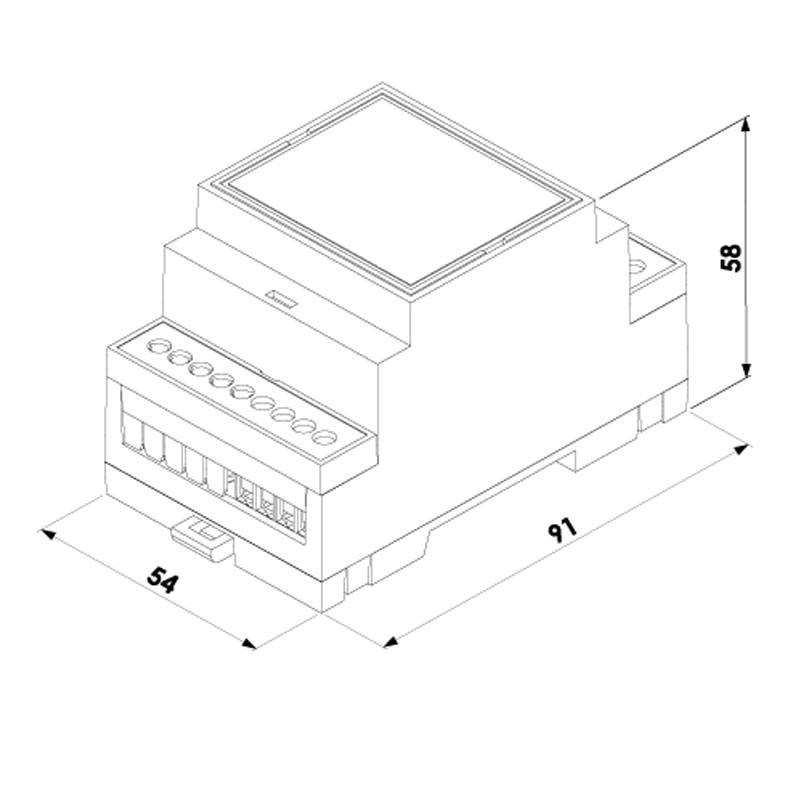

| Dimensions | 90x54x58 mm |
| Model | Din-rail: compact and robust |
There are no reviews
Data sheet
- Type: Power supplies
