Interface:

• Power source: PoE and/or 12V/1A DC
• PoE: 802.3af (Class 012.95W)
• LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 conector modular
• Recommended cabling: Cat-5e or higher
• Active switch output: 8 - 12V DC/max 600mA
• Passive switch: NO/NC switch contacts, up to 30V/1A AC/DC
• Inputs: 2 inputs in passive/active mode (-30V to + 30V DC) OFF = open or Uin> 1.5 V - ON = short connection or Uin> 1.5 V
• Protection switch: automatically part of 2N Access Unit 2.0
• Audio: buzzer (97dBA)
• Supported protocols: DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog

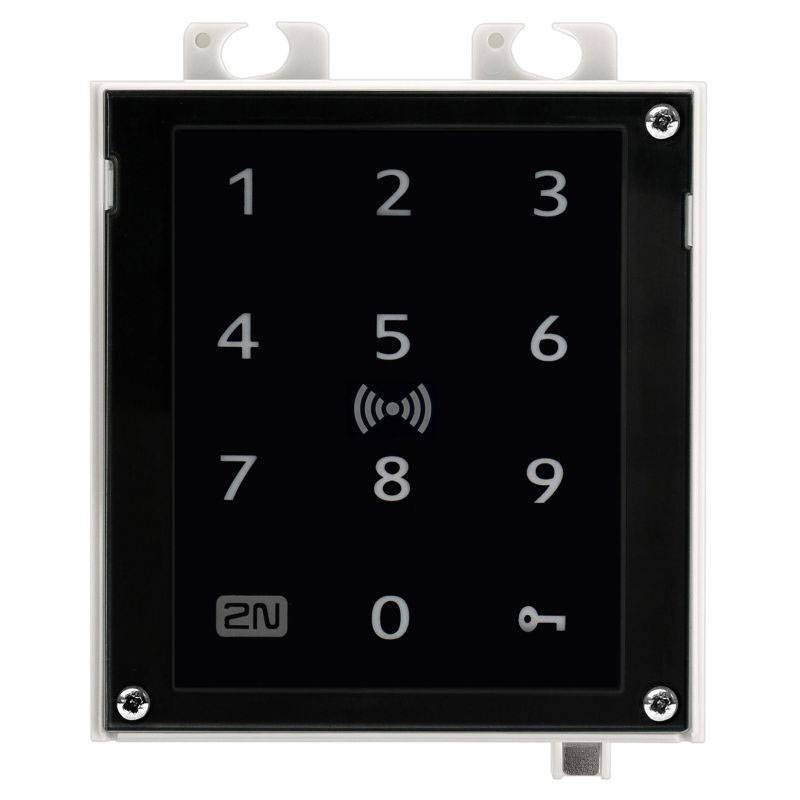

Touch keyboard:

• Technology: capacitive touch technology high-sensitivity touch layer (0.1pF)
• Reliability: constant automatic calibration (SmartSence) does not detect false contacts on a wet surface
• Signaling: adjustable backlight intensity indication by multi-color LED lights audible signal with each touch of the keyboard




RFID card reader:

• Supported frequencies: 125kHz and 13.56MHz variant
• Card types supported: card type compatibility depends on the order number
• 125 kHz: EM4100, EM4102 HID Prox - Secured versions only
• 13.56MHz: ISO14443A, ISO14443B, NFC support reads UID (CSN) reads PACs ID (HID iClass cards with SIO) - Secured versions only




Mechanical properties:

• Cover: robust zinc structure with coating (nickel and black color)
• Operating temperature: -40°C to +60°C
• Storage temperature: -40°C to +70°C
• Operating relative humidity: 10%-95% (non-condensing)
• Dimensions: Surface-mounting frame: - 1 module: 107 (W) x 130 (H) x 28 (W) mm
• Frame for wall mounting: 1 module: 130 (W) x 153 (H) x 5 (L) mm
• Wall mounting frame (minimum wall hole size): 1 module: 108 (W) x 131 (H) x 45 (S) mm
• Weight: max. 0.8 kg
• Coverage level: IP54 and IK08
