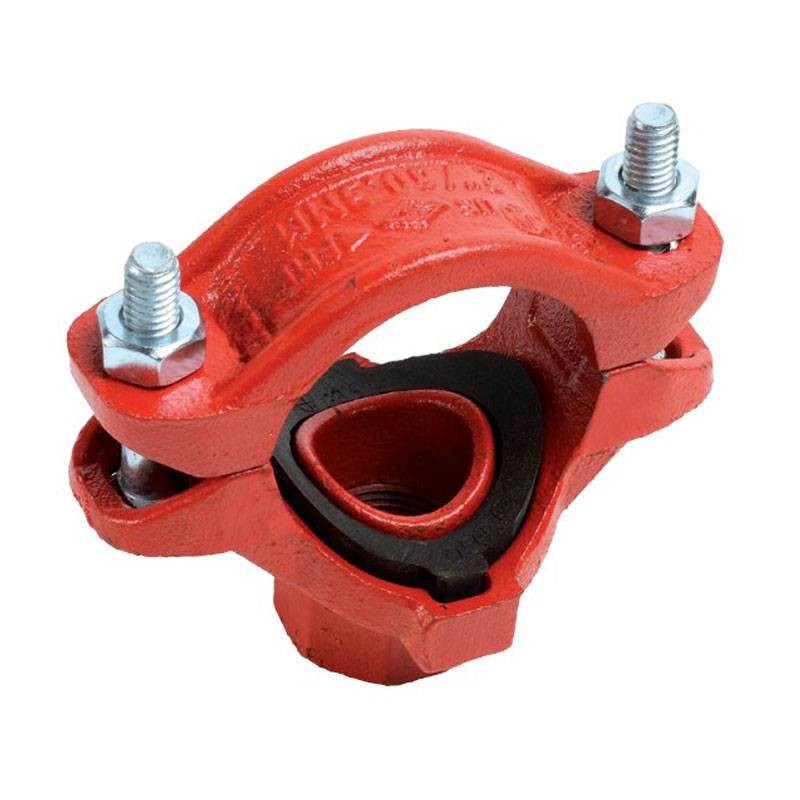

Ziggiotto threaded bracket fitting grooved 2 x 3/4 B003J060027

Ziggiotto
Ziggiotto
914 B003J060027

Ziggiotto threaded slotted bracket fitting for plumbing systems, with steel body. UL/FM certified, ideal for industrial and firefighting systems, with the following features:

  • Threaded branch: 3/4 inch

  • Main pipe: 2 inches

  • Branch hole: 38/40 mm

  • Pressure rating: PN 300 (300 PSI)

  • Compatible with tubing: 60.3 x 26.9 mm diameter

  • Grooved system: Quick, safe and versatile

  • Certified: UL/FM, not suitable for potable water

  • Bolts: M10x60 included

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ziggiotto threaded bracket fitting grooved 2 x 3/4 B003J060027
€6.34
€6.34

€6.34
Tax included
Calculate shipping cost
Items Available: 10
Further availability of the manufacturer
€6.34

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Ziggiotto bracket fitting for high-performance installations

The Ziggiotto bracket fitting, represents a modern and advantageous choice for making branches on grooved piping, eliminating the need for traditional welding, threading or flanges. Ideal for industrial, heating, air conditioning or firefighting plumbing systems, it guarantees tightness, reliability and speed of assembly.

Simple and safe assembly

Installation takes only a few steps: after preparing and cleaning the hole on the pipe, the gasket is aligned with the body of the fitting and tightened with bolts. Proper alignment and tightening ensures a perfect seal even under high pressure conditions (up to 300 PSI).

Durable materials and versatile use

This bracket socket is made for rugged applications. It is also suitable for fluids with up to 15 percent water/glycol mixture, making it perfect for refrigeration and firefighting systems. It is not suitable for use with potable water, but finds use in many other industrial and technical contexts.

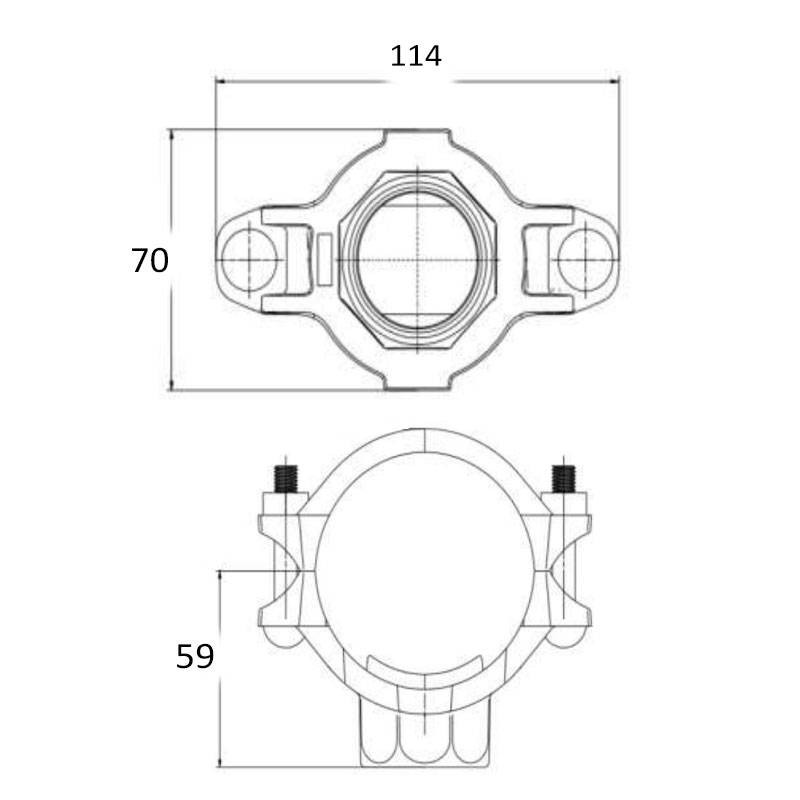

Technical Specifications Threaded Bracket Fitting

Type Threaded bracket fitting
Branch connection 3/4 inch threaded
Main pipe 2 inches - Diameter 60.3 mm x 26.9 mm
Branch hole 38/40 mm
Pressure rating (PN) 300 PSI
Hardware included M10x60
Certifications UL, FM
System Slotted - no welding or threading
Compatible applications Plumbing, HVAC, fire protection, water-glycol systems
Warnings Not suitable for potable water

There are no reviews

Data sheet

Type:
Fittings
Connection:
F
Model:
Threaded
Connections:
2 inches
3/4 inches
