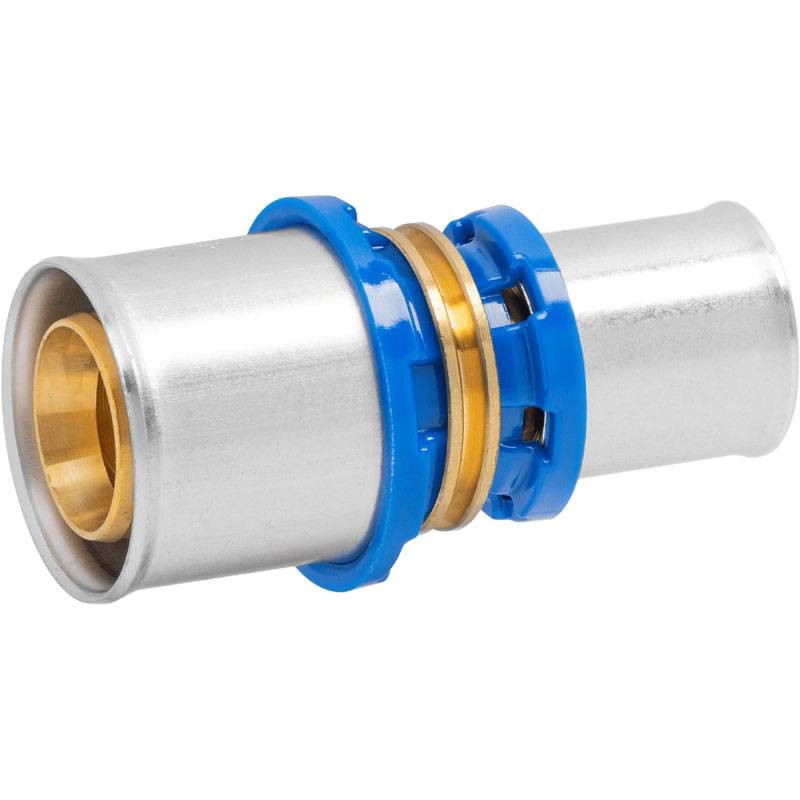

Ape Straight reduced fitting press fitting 32X20 ARL1300420
55X ARL1300420
8033708179411
Straight reduced press fitting Ape APL 13 32x20 mm for multilayer pipe, with double o-ring and polyamide ring. Safety, sealing, and quick installation.
-
Straight reduced press fitting for multilayer pipe
-

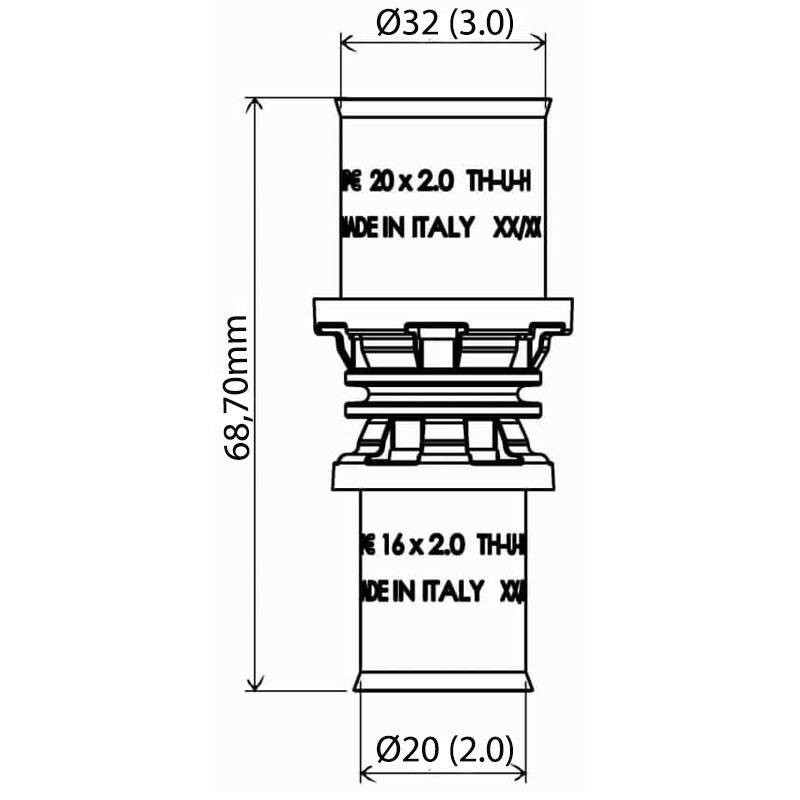

APL 13 Series Size: 32 x 20 mm
-
Double sealing o-ring for maximum safety
-
Polyamide ring for support and stability
-
Compatible with hydro-thermal-sanitary systems
-
Compliant with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174
€6.67
Items Available: 30
: 23
Straight reduced press fitting Ape APL 13 for multilayer systems
The straight reduced fitting Ape press fitting APL 13 32x20 mm (code ARL1300420) is an essential component for the construction of hydraulic and thermal systems with multilayer pipes. Thanks to its reduced design, it allows the connection of pipes of different diameters (from 32 mm to 20 mm), optimizing space and simplifying system configurations.
High sealing performance with double o-ring
The fitting is equipped with a double EPDM o-ring, which ensures reliable watertightness even under varying pressure and temperature conditions. This feature makes it suitable for both drinking water distribution systems and heating and cooling circuits, offering additional security against leaks and infiltrations.
Reinforced structure with polyamide ring
To improve the stability and durability of the connection, the fitting includes a polyamide ring that acts as a support for the hose clamp. This allows for an even distribution of clamping force, increasing mechanical resistance and reducing the risk of deformation or loosening over time.
Compliance with drinking water regulations
Manufactured in compliance with UNI EN ISO 21003-3, UNI EN 1254-3 standards and Ministerial Decree 174, the fitting is suitable for contact with drinking water, ensuring hygienic safety for domestic and civil applications.
Quick and efficient installation
APL Ape fittings are designed to reduce assembly times, facilitating the work of the installer. The press fitting system allows for a safe, fast installation without the need for threading or welding, perfect for new installations or renovations.
| MAIN FEATURES | |
|---|---|
| Application field | Hydrothermal sanitary systems |
| Working fluid | Drinking water, technical water, glycolated water |
| Glycol percentage | Max 30% |
| Temperature range | 5°C ÷ 80°C |
| Operating pressure | Max 16 bar |
| Compatible pipe type | Multilayer PE-Xb/AL/PE-Xb (UNI 21003) |
| MATERIAL CHARACTERISTICS | |
| Body | Brass CW612N (UNI EN 12164 / EN 12165 / EN 12168) |
| O-ring | Peroxide-cured EPDM 70 SH (EN 681.1) |
| Hose clamp support ring | B2800 (polyamide) |
| Hose clamp sleeve | Stainless steel AISI 304 (UNI EN 10088-2) |
There are no reviews
Data sheet
- Diameter: 20mm
- Type: Fittings
- Model: Straight
- Material: Brass
32mm
