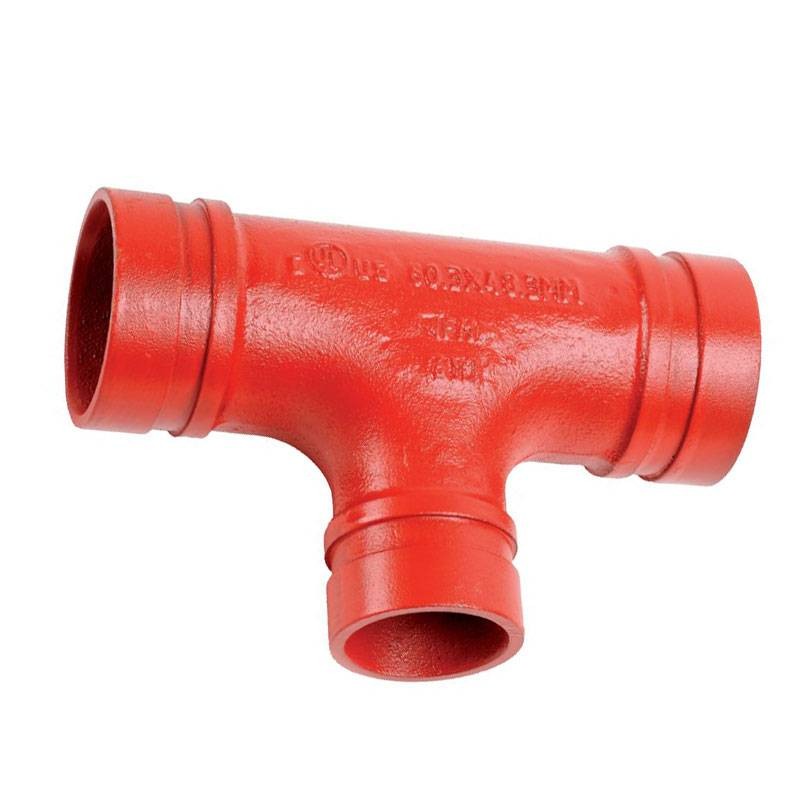

Ziggiotto grooved T-fitting 3 inches 80mm PN500 B0130089
914 B0130089
Ziggiotto grooved T-fitting designed for hydraulic pressure systems up to 500 PSI. The ideal solution for quick, safe and reliable connection without threads or welding, with the following features:
-
Nominal diameter: 3 inches (80 mm)
-
Outer diameter: 88.9 mm
-
Nominal pressure rating: PN500
-
Compatible with: Water and glycol systems (max 15%)
-
Certifications: UL / FM
€14.59
Items Available: 6
: 3
Grooved T-fitting hydraulic joint solution
The Ziggiotto Grooved T Fitting is a technological and cost-effective alternative to traditional connection methods such as welding, flanging or threading. Thanks to the grooved system, installation is quick and safe, ensuring a solid and easily inspected connection.
Ease of installation and maintenance
The groove connection is simple to make and allows easy installation and disassembly, making maintenance operations extremely convenient. This is particularly advantageous in installations where modularity and expandability are key factors.
Applications and compatibility
Suitable for a wide range of applications in hydraulic distribution systems, it is not suitable for use with potable water. Instead, it is perfect for circuits that use water mixed with glycol (up to 15 percent), making it particularly useful in fire protection systems, heating, air conditioning or industrial cooling systems.
Technical Specifications Ziggiotto T-fitting
| Type | Nominal diameter |
| Pipe outer diameter | 3 inches - 88.9mm |
| Nominal pressure rating (PN) | 500 PSI |
| Fluid compatibility | Water and glycol (up to 15%) |
| Certifications | UL / FM |
| Grooving material | Steel - suitable for rolling or turning |
| Use | Plumbing systems, fire protection, HVAC (excluding potable water) |
There are no reviews
Data sheet
- Type: Fittings
- Model: T-Fittings
- Connections: 3 inches
